Work Flow

INFINITI DRIVE MODE SELECTOR

Overall Sequence

Courtesy of NISSAN NORTH AMERICA, INC.

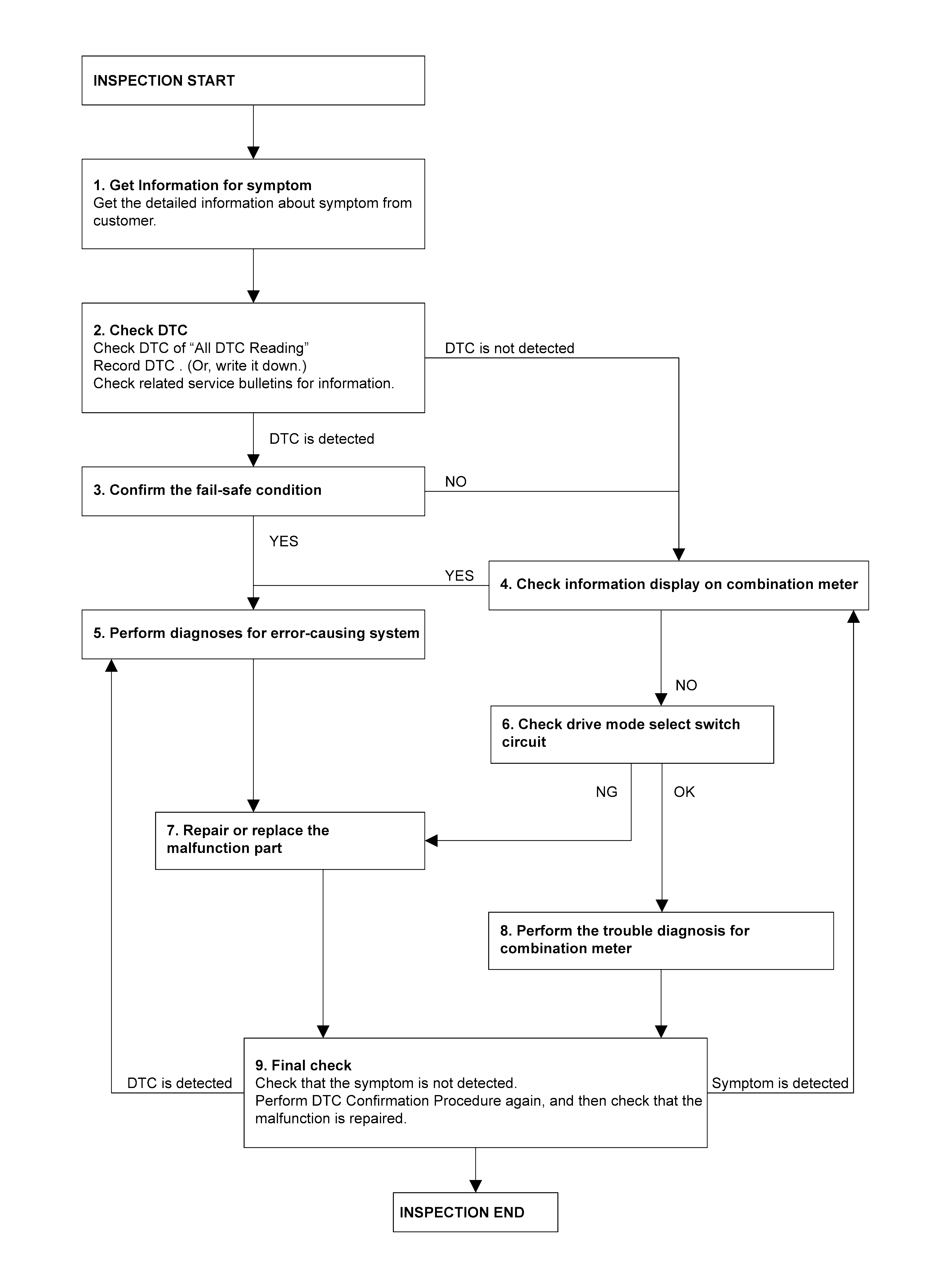

Detailed Flow

GET INFORMATION FOR SYMPTOM
1. Get the detailed information about symptom from customer.
2. Check the drive mode indicator on the meter appeared.
3. Check the Drive mode indicator on the meter changed when operates the drive mode select switch.
>>

GO TO 2.
CHECK THE DTC
With CONSULT
1. Check DTC of "All DTC Reading".
2. Perform the following procedure if DTC is displayed.
  - Record DTC and freeze frame data. (Or, write it down.)
3. Check related service bulletins for information.
Are any DTCs detected?

>>

GO TO 3.

>>

GO TO 4.
CONFIRM THE FAIL-SAFE CONDITION
Confirm the fail-safe condition of detected DTC. Refer to Fail-Safe .

Are there any DTCs that causes INFINITI drive mode selector function is suspended?

>>

GO TO 5.

>>

GO TO 4.
CHECK INFORMATION DISPLAY ON COMBINATION METER
1. Ignition switch OFF and wait at least 10 seconds.
2. Ignition switch ON.
3. Check that STANDARD / AUTO is displayed on the information display screen of the combination meter.
4. Check that the view of information display change when switching up and down the drive mode select switch.
Is the inspection result normal?

>>

GO TO 5.

>>

GO TO 6.
PERFORM DIAGNOSES FOR ERROR-CAUSING SYSTEM
With CONSULT Perform the trouble diagnosis of components that DTC indicated.

>>

GO TO 7.
CHECK DRIVE MODE SELECT SWITCH CIRCUIT
Check drive mode select switch circuit. Refer to Diagnosis Procedure .

Is the inspection result normal?

>>

GO TO 8.

>>

GO TO 7.
REPAIR OR REPLACE THE MALFUNCTION PART
Repair or replace the malfunctioning part.

>>

GO TO 9.
CHECK COMBINATION METER
Check the combination meter.
- Full TFT meter: Refer to On Board Diagnosis Function .
- 7 inch information display: Refer to On Board Diagnosis Function .
>>

GO TO 9.
FINAL CHECK
With CONSULT
1. Check that the symptom is not detected.
2. Perform DTC Confirmation Procedure again, and then check that the malfunction is repaired.
Is DTC detected and/or does symptom remain?

>>

(DTC is detected) GO TO 5.

>>

(Symptom remains) GO TO 4.

>>

INSPECTION END

INFINITI DRIVE MODE SELECTOR (PERSONAL MODE SETTING)

Overall Sequence

Courtesy of NISSAN NORTH AMERICA, INC.

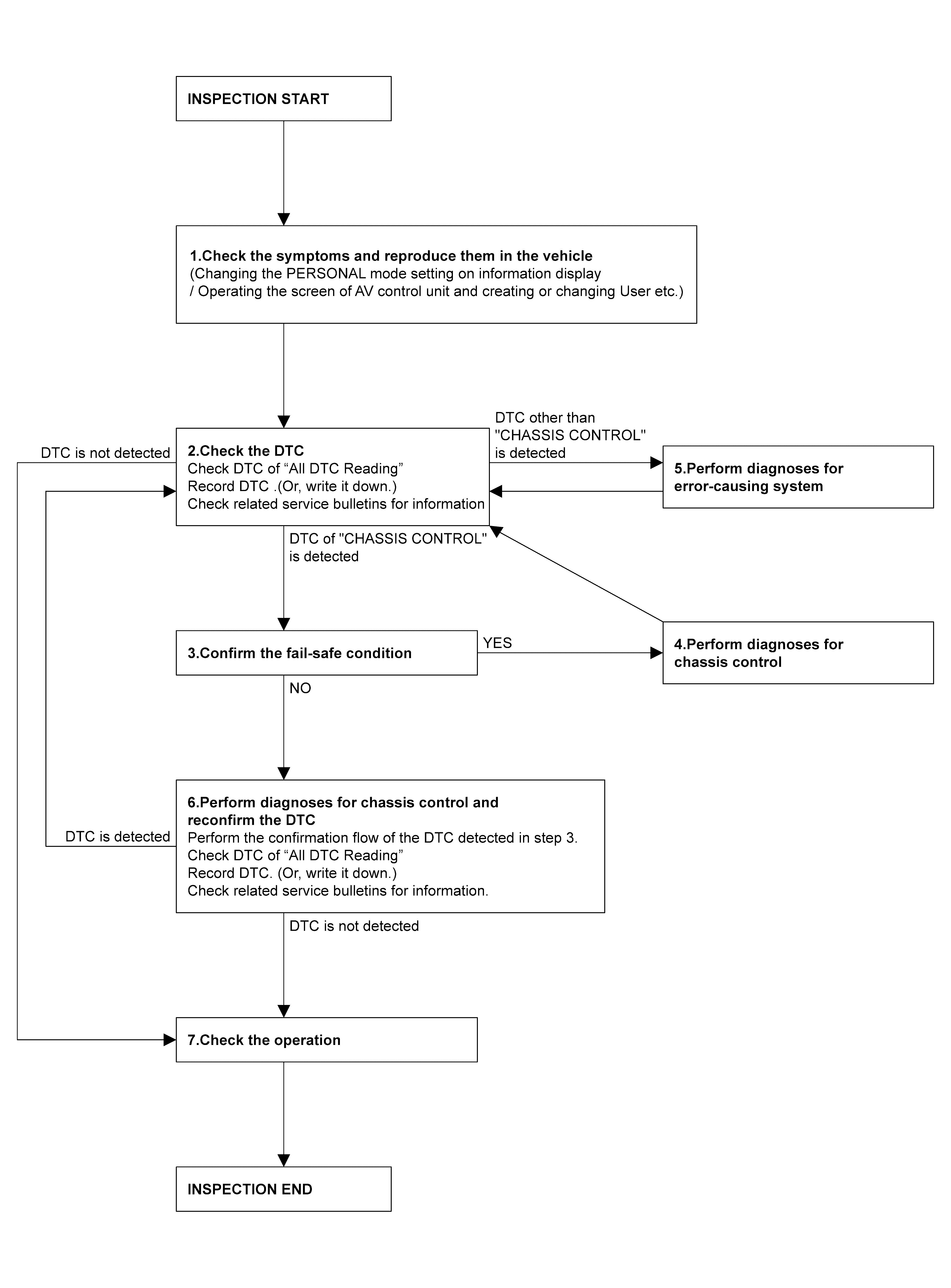

Detailed Flow

CHECK THE SYMPTOMS AND REPRODUCE THEM IN THE VEHICLE
Changing the PERSONAL mode setting on information display. / Operating the screen of AV control unit and creating or changing User etc.

>>

GO TO 2.
CHECK THE DTC
1. Check DTC of "All DTC Reading".
2. Perform the following procedure if DTC is displayed.
  - Record DTC. (Or, write it down.)
3. Check related service bulletins for information.
Are any DTCs detected?

DTC is detected of "CHASSIS CONTROL">>

GO TO 3.

DTC is detected other than "CHASSIS CONTROL">>

GO TO 5.

DTC is detected other than "CHASSIS CONTROL">>

GO TO 7.
CONFIRM THE FAIL-SAFE CONDITION
1. Confirm the fail-safe condition of detected DTC refer to Fail-safe on "CHASSIS CONTROL".
Are there any DTCs that causes "INFINITI drive mode selector function" is suspended?

>>

GO TO 4.

>>

GO TO 6.
PERFORM DIAGNOSES FOR CHASSIS CONTROL
Perform the trouble diagnosis of components that DTC indicated in "CHASSIS CONTROL".

>>

GO TO 2.
PERFORM DIAGNOSES FOR ERROR-CAUSING SYSTEM
Perform the trouble diagnosis of components that DTC indicated.

>>

GO TO 2.
PERFORM DIAGNOSES FOR CHASSIS CONTROL AND RECONFIRM THE DTC
1. Perform the confirmation flow of the DTC detected in step 3.
2. Check DTC of "All DTC Reading"
3. Perform the following procedure if DTC is displayed.
  - Record DTC. (Or, write it down.)
4. Check related service bulletins for information.
Are any DTCs detected?

DTC is detected>>

GO TO 2.

DTC is not detected>>

GO TO 7.
CHECK THE OPERATION
Finally, check the symptoms and reproduce them again in the vehicle. (Changing the PERSONAL mode setting on information display. / Operating the screen of AV control unit and creating or changing User etc.)

>>

INSPECTION END
