System Description

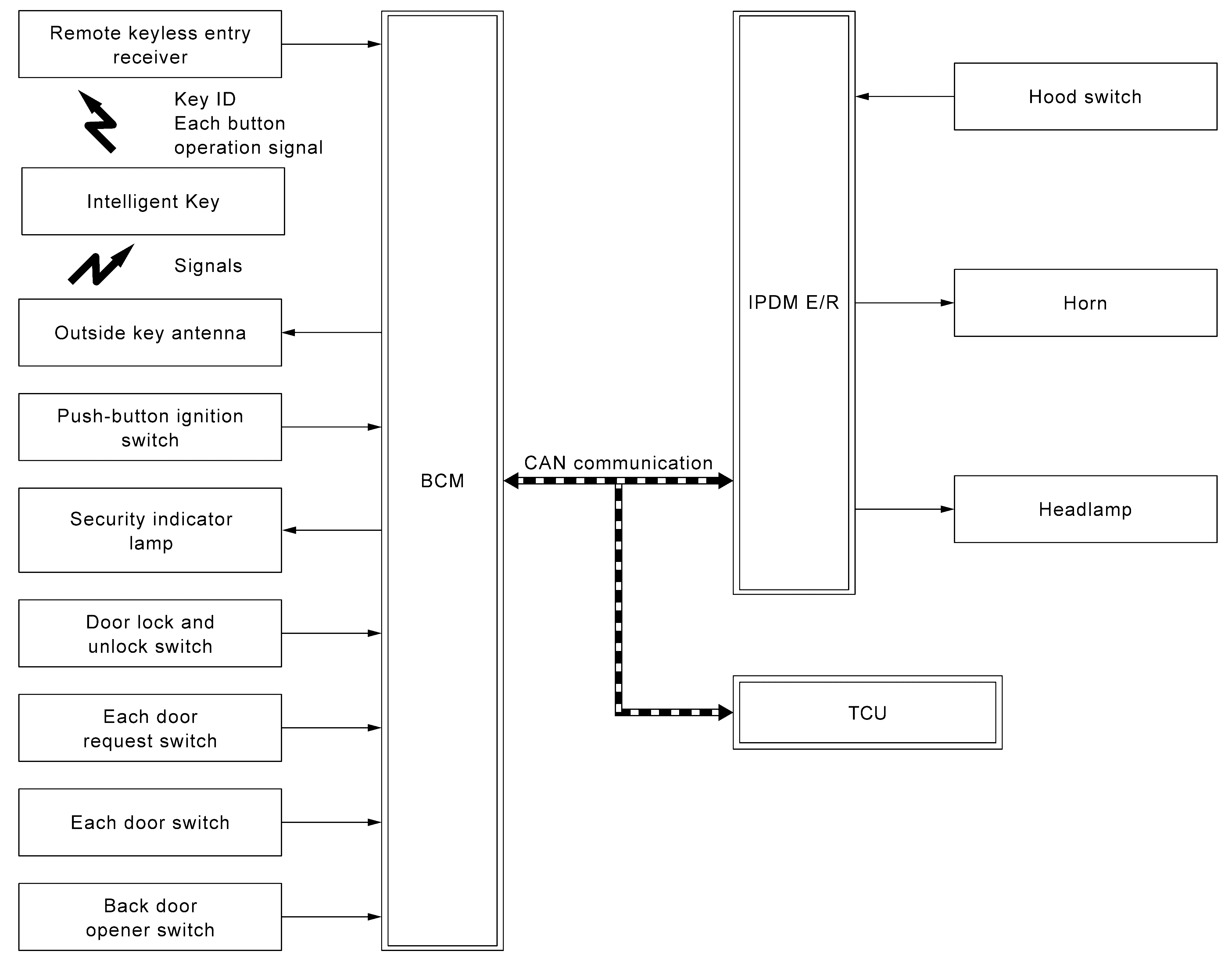

SYSTEM DIAGRAM
SYSTEM DESCRIPTION
- The vehicle security system has two alarm functions (theft warning alarm and panic alarm), and reduces the possibility of a theft or mischief by activating horns and headlamps intermittently.
- The panic alarm does not start when the theft warning alarm is activating, and the panic alarm stops when the theft warning alarm is activated.
The priority of the functions are as per the following.
Priority Function 1 Theft warning alarm 2 Panic alarm
THEFT WARNING ALARM
- The theft warning alarm function activates horns and headlamps intermittently when BCM detects that any door or hood is opened by unauthorized means, while the system is in the ARMED state.
- Security indicator lamp on combination meter always blinks when power supply position is any position other than ON. Security indicator lamp blinking warns that the vehicle is equipped with a vehicle security system.

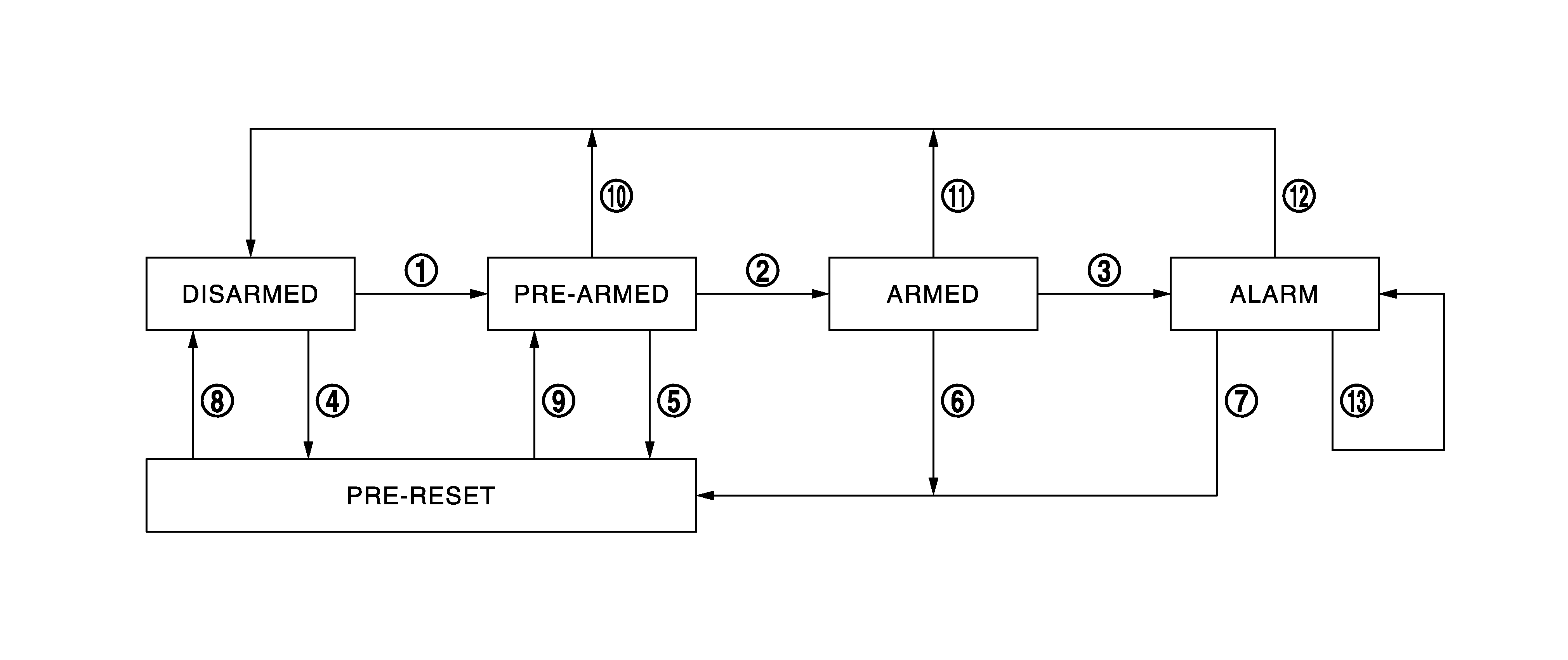

Operation Flow
| No. | System state | Switching condition | ||
|---|---|---|---|---|
| 1 | DISARMED to PRE-ARMED | When all conditions of A and one condition of B is satisfied. | A | B |
|
All doors are locked by:
|
|||
| 2 | PRE-ARMED to ARMED | When all of the following conditions are satisfied for 30 seconds. |
|
|
| 3 | ARMED to ALARM | When one condition of A and one condition of B are satisfied. | A | B |
| Intelligent Key: Not used |
|
|||
| 4 | DISARMED to PRE-RESET | When all conditions of A and one condition of B is satisfied. | A | B |
|
All doors are locked by:
|
|||
| 5 | PRE-ARMED to PRE-RESET | When one of the following conditions is satisfied. |
|
|
| 6 | ARMED to PRE-RESET | No conditions. | ||
| 7 | ALARM to PRE-RESET | |||
| 8 | PRE-RESET to DISARMED | When one of the following conditions is satisfied. |
|
|
| 9 | PRE-RESET to PRE-ARMED | When all of the following conditions are satisfied. |
|
|
| 10 | PRE-ARMED to DISARMED | When one of the following condition is satisfied. |
|
|
| 11 | ARMED to DISARMED |
When one of the following condition is satisfied. |
|
|
| 12 | ALARM to DISARMED |
|||
| 13 | RE-ALARM | When one of the following condition is satisfied after the ALARM operation is finished. |
|
|
- BCM ignores the door key cylinder UNLOCK switch signal input for 1 second after the door key cylinder LOCK switch signal input.
- To lock/unlock all doors by operating remote controller button of Intelligent Key or door request switch, Intelligent Key must be within the detection area of outside key antenna. For details, Refer to System Description .
- To open back door by operating back door opener switch, Intelligent Key must be within the detection area of outside key antenna. For details, Refer to System Description .
DISARMED Phase
The vehicle security system is not set in the DISARMED phase. The vehicle security system stays in this phase while any door is open, because it is assumed that the owner is inside or nearby the vehicle. Security indicator lamp blinks every 2.4 seconds.
When the vehicle security system is reset, each phase switches to the DISARMED phase directly.
PRE-ARMED Phase
The PRE-ARMED phase is the transient state between the DISARMED phase and the ARMED phase. This phase is maintained for 30 seconds, so that the owner can reset the setting due to a mis-operation. This phase switches to the ARMED phase when vehicle conditions are not changed for 30 seconds. Security indicator lamp illuminates while being in this phase.
To reset the PRE-ARMED phase, refer to the switching condition of No. 10 in the table above.
ARMED Phase
The vehicle security system is set, and BCM monitors all necessary inputs. If any door or hood is opened without using Intelligent Key, vehicle security system switches to the ALARM phase. Security indicator lamp blinks every 2.4 seconds.
To reset the ARMED phase, refer to the switching condition of No. 11 in the table above.
ALARM Phase
BCM transmits "Theft Warning Horn Request" signal and "High Beam Request" signal intermittently to IPDM E/R via CAN communication. In this phase, horns and headlamps are activated intermittently for approximately 50 seconds to warn that the vehicle is accessed by unauthorized means. ON/OFF timing of horns and headlamps are synchronized. After 50 seconds, the vehicle security system returns to the ARMED phase. At this time, if BCM still detects unauthorized access to the vehicle, the system is switched to the ALARM phase again. This RE-ALARM operation is carried out a maximum of 2 times.
To cancel the ALARM operation, refer to the switching condition of No. 12 in the table above.
PRE-RESET Phase
The PRE-RESET phase is the transient state between each phase and DISARMED phase. If only the condition of hood is not satisfied, the system switches to the PRE-RESET phase. Then, when any condition is changed, the system switches to the DISARMED phase or PRE-ARMED phase.
PANIC ALARM
- The panic alarm function activates horns and headlamps intermittently when the owner presses the PANIC ALARM button of Intelligent Key outside the vehicle while the ignition switch is OFF.
- In the same way as the Intelligent Key, the panic alarm can be activated and stopped by operating a cellular phone using the Telematics system function. For details, Refer to System Description .
- When BCM receives panic alarm signal from Intelligent Key or TCU, BCM transmits "Theft Warning Horn Request" signal and "High Beam Request" signal intermittently to IPDM E/R via CAN communication. To prevent the activation due to mis-operation of Intelligent Key by owner, the panic alarm function is activated when BCM receives the signal for 0.4 - 0.6 seconds.
- Panic alarm operation is maintained for 25 seconds.
- Panic alarm operation is cancelled when BCM receives one of the following signals.
- LOCK button of Intelligent Key: ON
- UNLOCK button of Intelligent Key: ON
- TRUNK OPEN button of Intelligent Key: ON
- PANIC ALARM button of Intelligent Key: Long pressed
- Any door request switch: ON
- Hold the outside handle grip (one touch unlock sensor: ON)
- When BCM receive panic alarm signal from TCU via CAN communication.
