YAW RATE/SIDE/DECEL G SENSOR : Exploded View

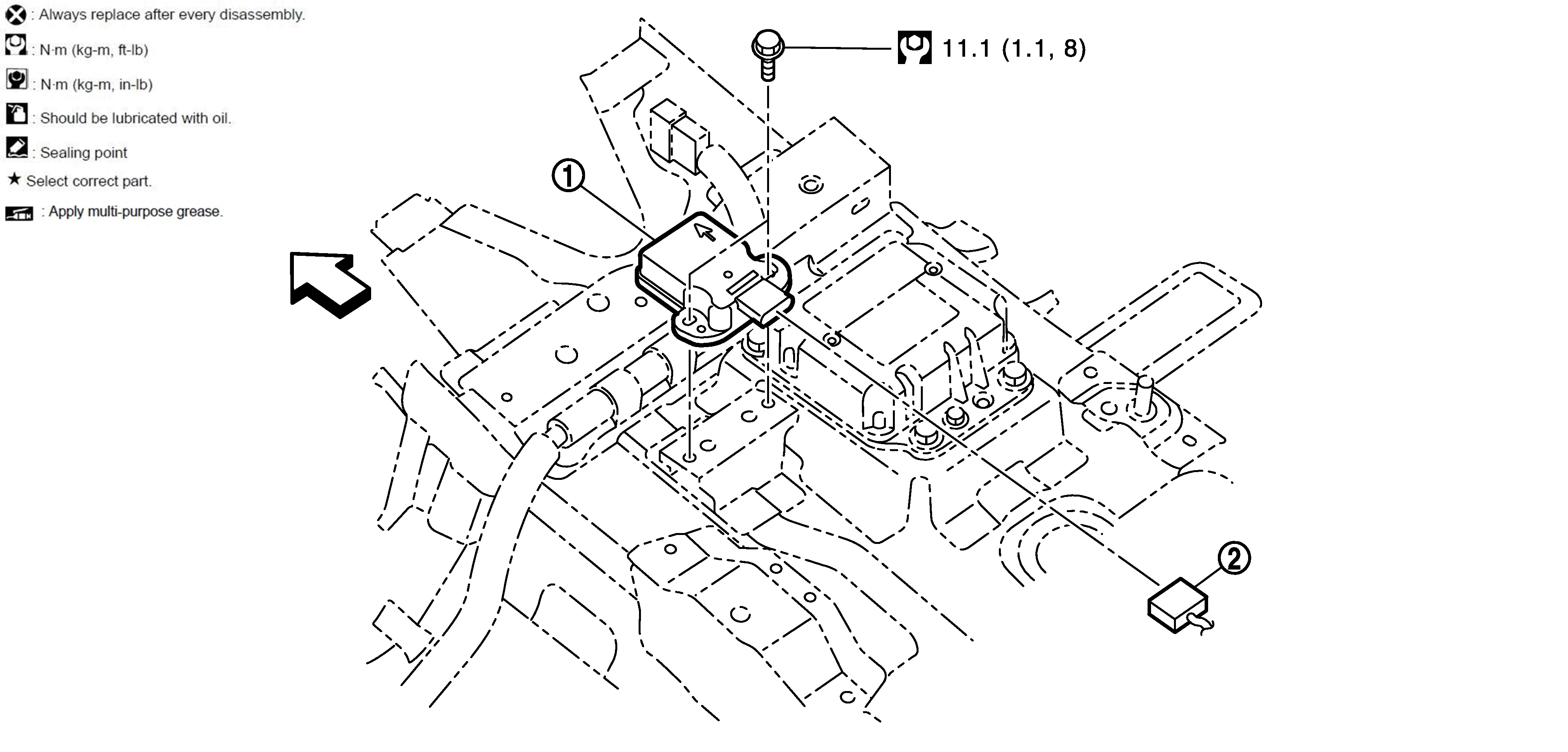

Fig 1: Yaw Rate/Side/Decel G Sensor With Torque Specifications
GNSDB145072SYMBOLSYMBOLSYMBOLSYMBOLCourtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Yaw rate/side/decel G sensor SYMBOL Yaw rate/side/decel G sensor harness connector
SYMBOL : Vehicle front
SYMBOL : N.m (kg-m, ft-lb)
