ENGINE CONTROL SYSTEM : Commercial Service Tools or/and Repair Part

Tool name (TechMate No.)		Description

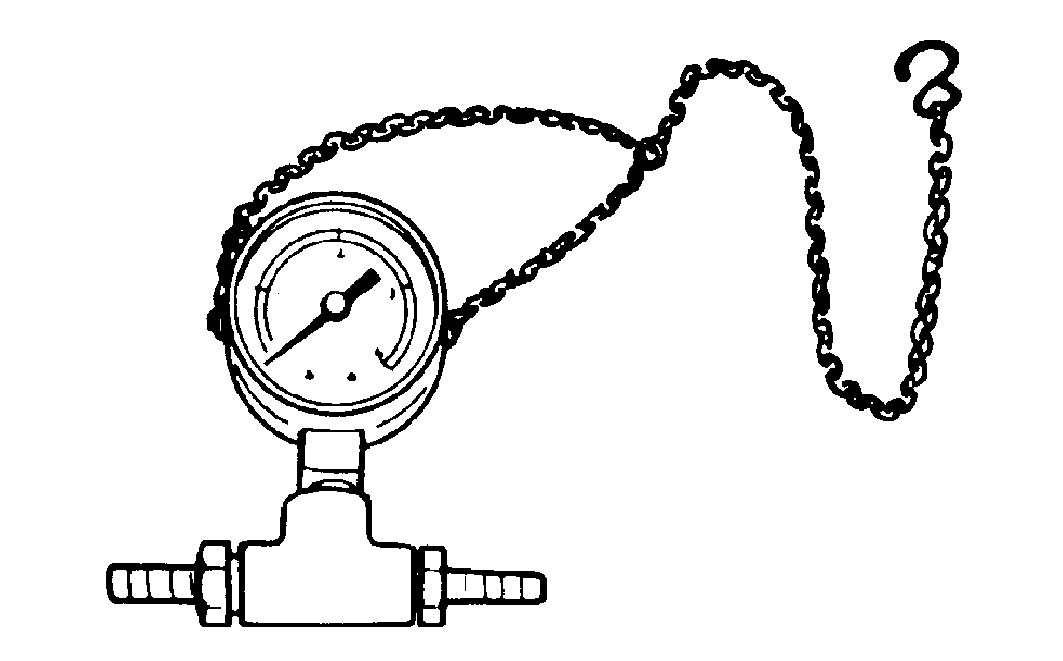

Fuel pressure gauge (-)	Courtesy of NISSAN NORTH AMERICA, INC.	Measuring fuel pressure NOTE: Use the pressure gauge which can measure 690 kpa (6.9 bar, 7.0 kg/cm² , 100 psi) or more.
Leak detector i.e.: (NI-41416)	Courtesy of NISSAN NORTH AMERICA, INC.	Locates the EVAP leak
EVAP service port adapter i.e.: (NI-41413-OBD)	Courtesy of NISSAN NORTH AMERICA, INC.	Applies positive pressure through EVAP service port
Fuel filler cap adapter i.e.: (NI-42909)	Courtesy of NISSAN NORTH AMERICA, INC.	Checks fuel tank vacuum relief valve opening pressure

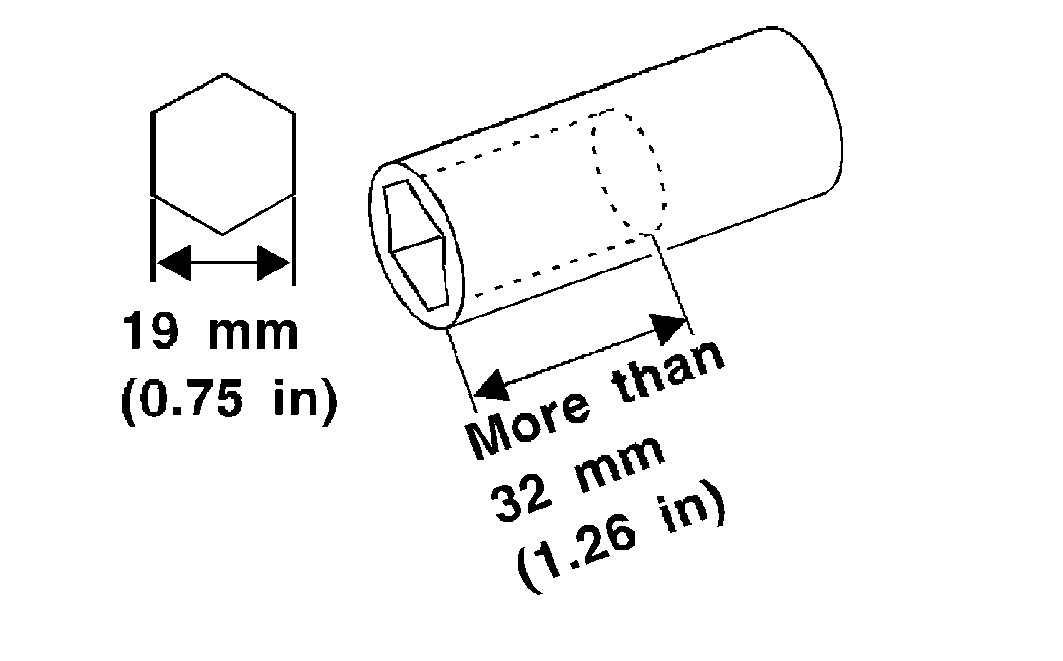

Socket wrench (-)	Courtesy of NISSAN NORTH AMERICA, INC.	Removes and installs engine coolant temperature sensor

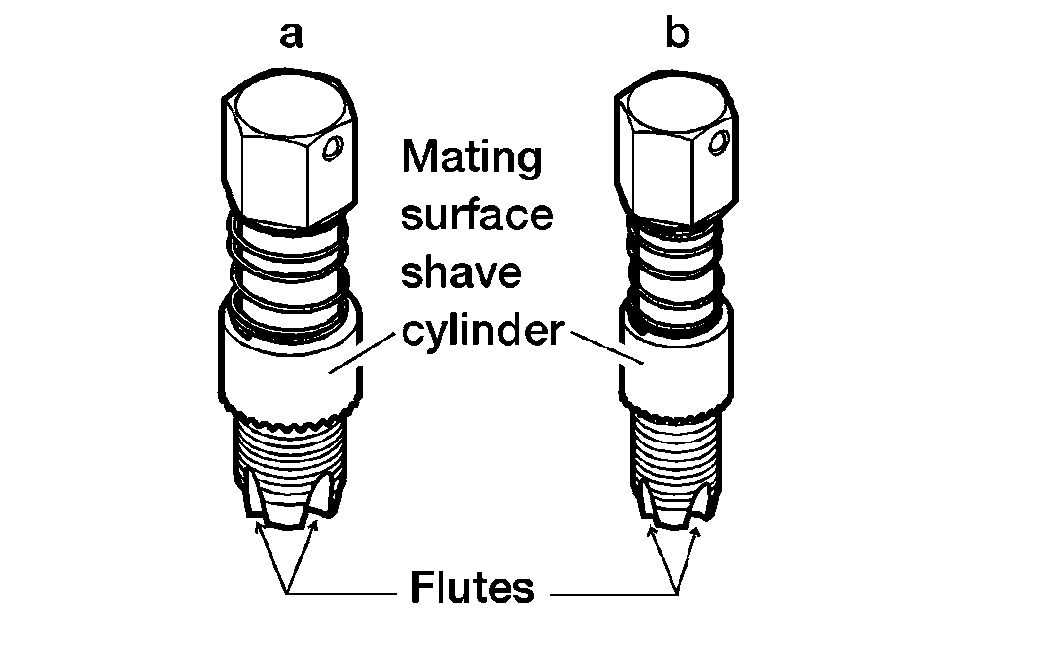

Oxygen sensor thread cleaner i.e.: (NI-43897-18) (NI-43897-12)	Courtesy of NISSAN NORTH AMERICA, INC.	Reconditions the exhaust system threads before installing a new oxygen sensor. Use with anti-seize lubricant shown below. a: 18 mm diameter with pitch 1.5 mm for Zirconia Oxygen Sensor b: 12 mm diameter with pitch 1.25 mm for Titania Oxygen Sensor

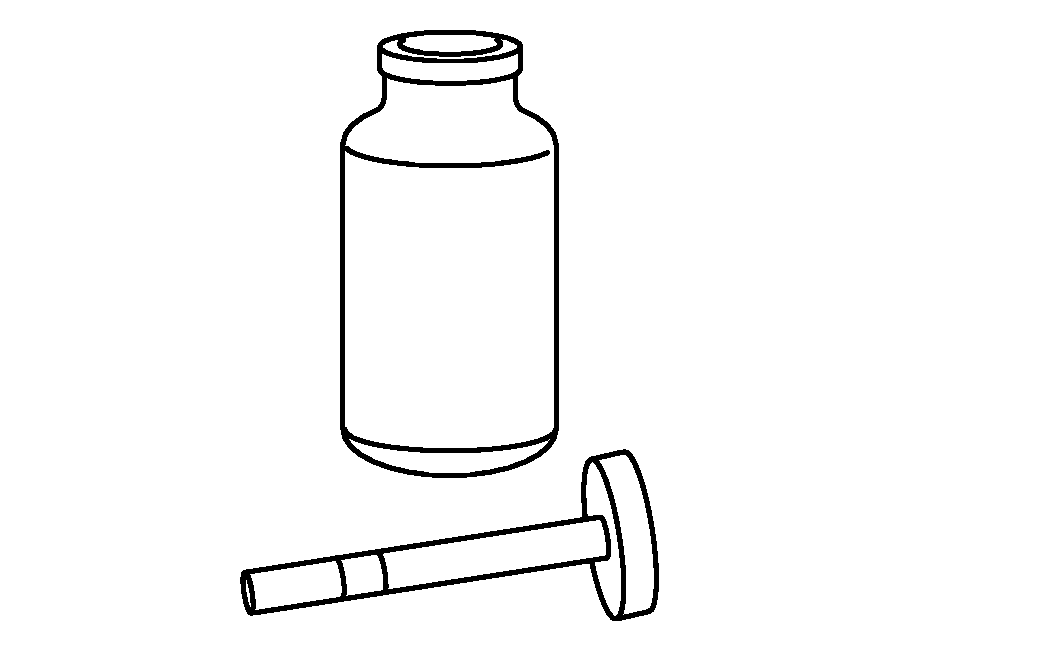

Anti-seize lubricant i.e.: (Permatex™ 133AR or equivalent meeting MIL specification MIL-A-907)	Courtesy of NISSAN NORTH AMERICA, INC.	Lubricates oxygen sensor thread cleaning tool when reconditioning exhaust system threads.
