Component Function Check

1. Turn ignition switch OFF.
2. Disconnect EOT sensor harness connector.
3. Remove EOT sensor. Refer to OIL PAN (LOWER) AND OIL STRAINER : Exploded View .

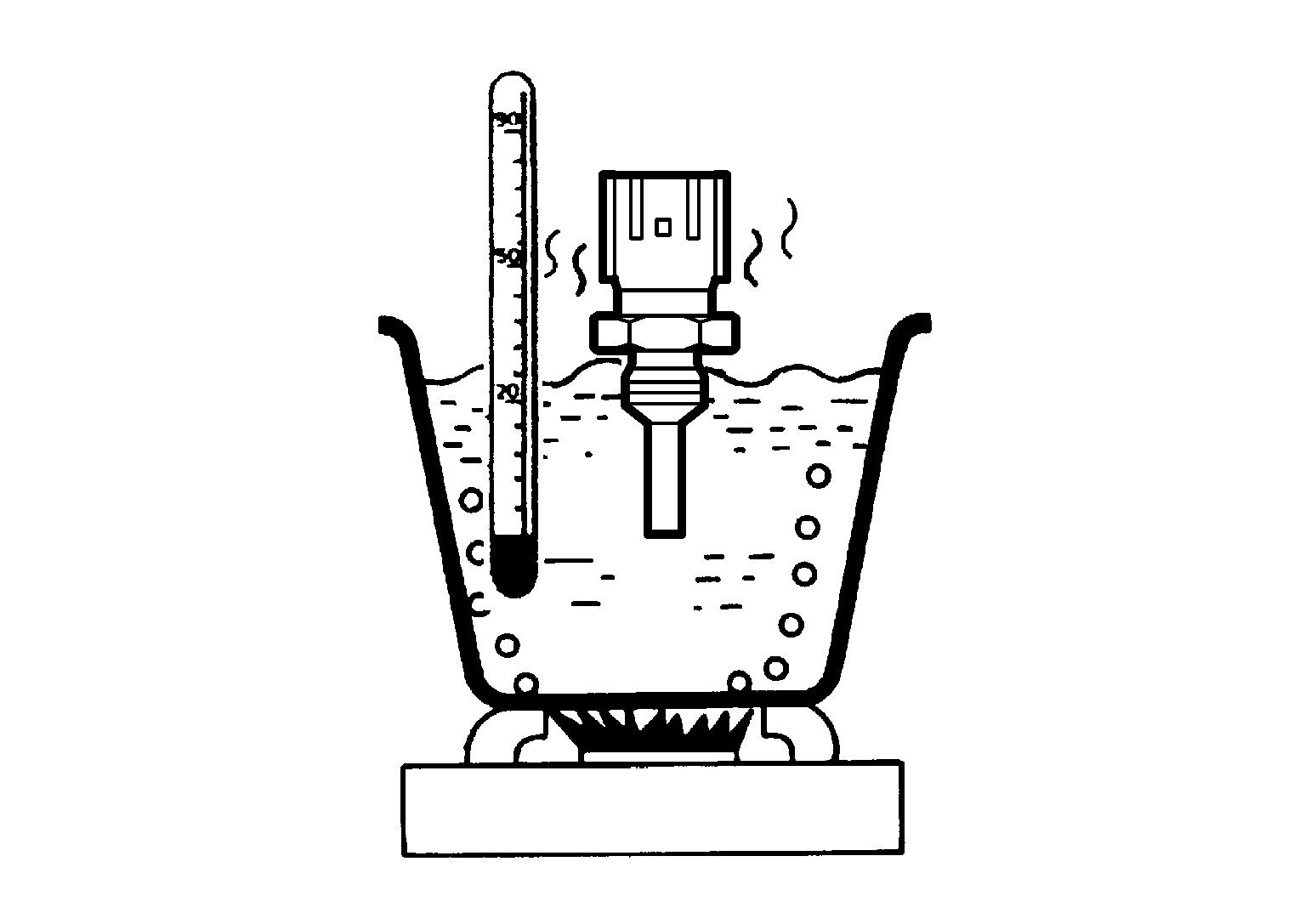

4. Check resistance between EOT sensor terminals by heating with hot water as shown in the figure, below.

   Courtesy of NISSAN NORTH AMERICA, INC.

   Terminals	Condition		Resistance (kΩ)
   1 and 2	Temperature [°C (°F)]	20 (68)	2.35-2.73
   		50 (122)	0.68-1.00
   		90 (194)	0.236-0.260

Is the inspection result normal?

YES>>

GO TO 2.

NO>>

Refer to DTC Diagnosis Procedure .

Check intermittent incident. Refer to Inspection .Is the inspection result normal?

YES>>

INSPECTION END

NO>>

Refer to DTC Diagnosis Procedure .
