Component Function Check

Turn ignition switch to START.

Are any cylinders ignited?

YES>>

GO TO 2.

NO>>

Refer to Diagnosis Procedure .

1. Start engine.
2. Perform "POWER BALANCE" in "ACTIVE TEST" mode with CONSULT.
3. Check that each circuit produces a momentary engine speed drop.

WITHOUT CONSULT

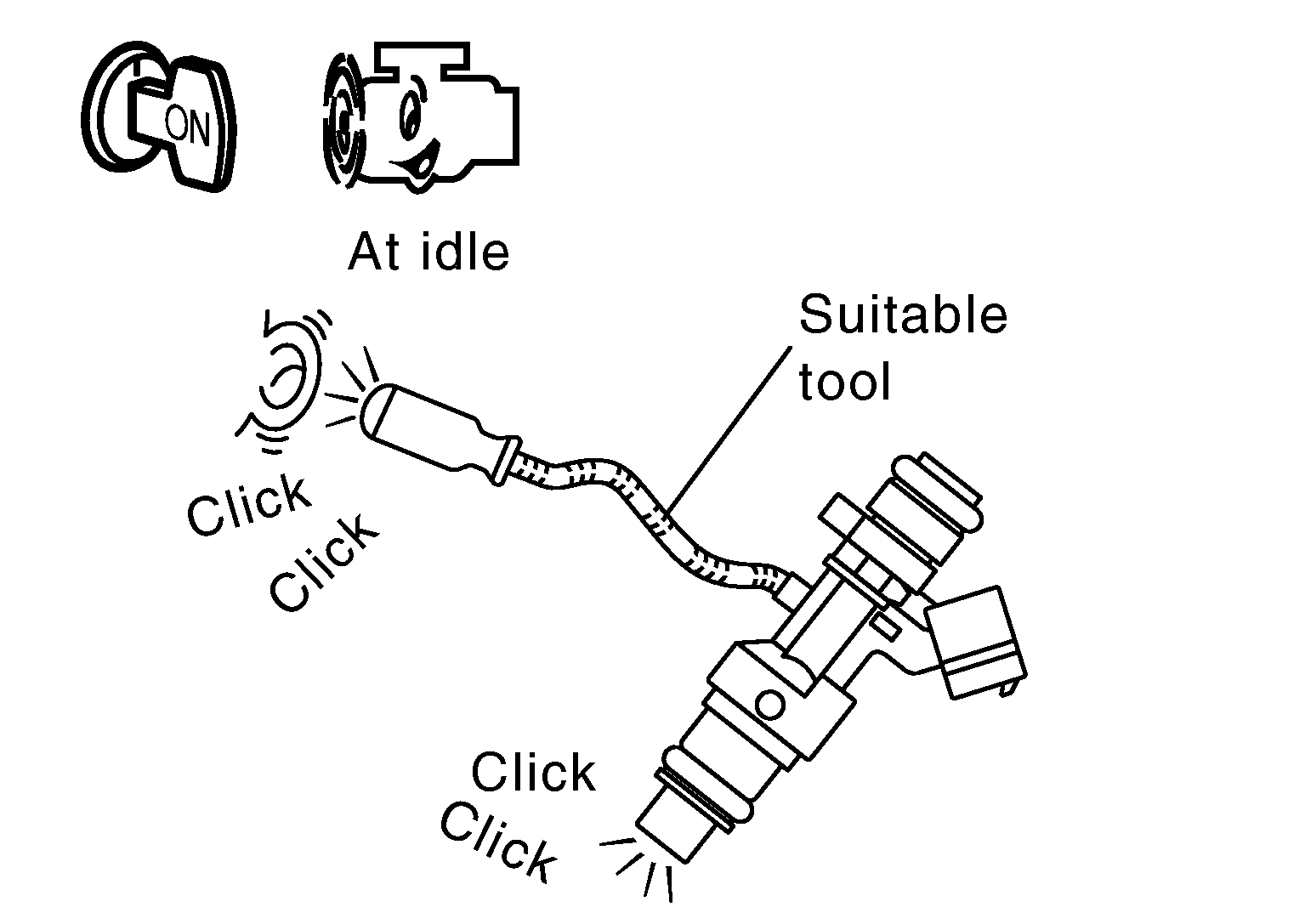

1. Start engine.
2. Listen to each fuel injector operating sound.

   Courtesy of NISSAN NORTH AMERICA, INC.

   Clicking sound should be heard.

Is the inspection result normal?

YES>>

INSPECTION END

NO>>

Refer to Diagnosis Procedure .
