System Description

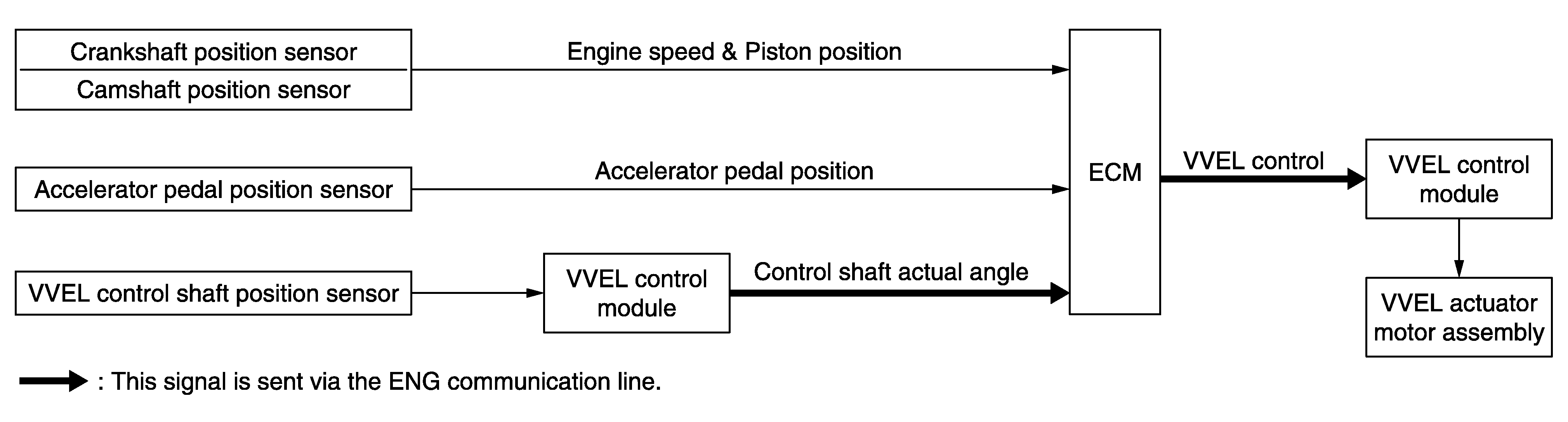

INPUT/OUTPUT SIGNAL CHART
| Sensor | Input signal to ECM | ECM function | Actuator |
|---|---|---|---|
| Camshaft position sensor Crankshaft position sensor |
Engine speed and piston position | VVEL control | VVEL control module ↓ VVEL actuator motor assembly |
| Accelerator pedal position sensor | Accelerator pedal position | ||
| VVEL control shaft position sensor ↓ VVEL control module |
Control shaft actual angle |
SYSTEM DESCRIPTION

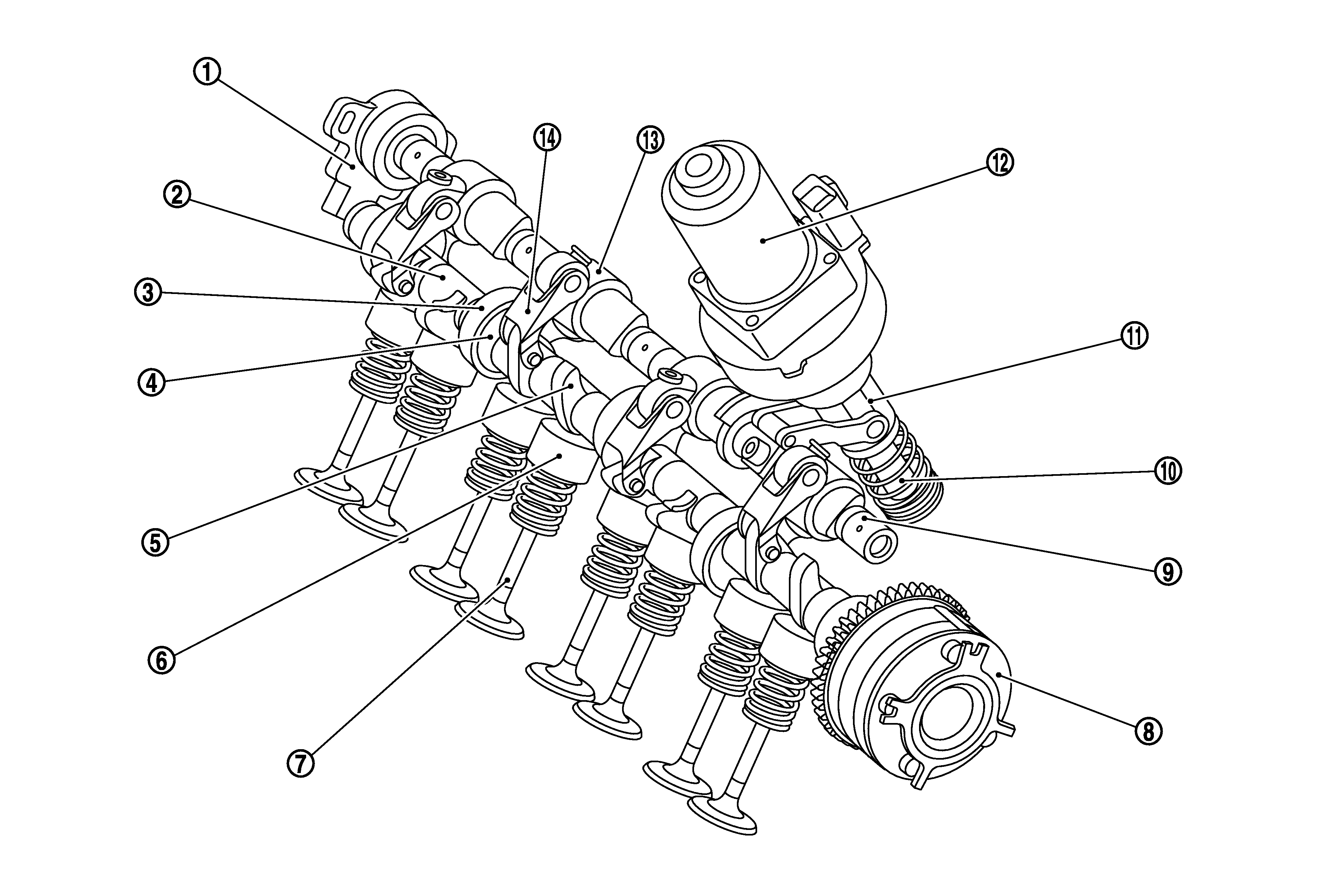

| 1. | VVEL control shaft position sensor | 2. | Drive shaft | 3. | Link A |
| 4. | Eccentric cam | 5. | Output cam | 6. | Valve lifter |
| 7. | Intake valve | 8. | Intake camshaft sprocket | 9. | Control shaft |
| 10. | Ball screw shaft | 11. | Ball screw nut | 12. | VVEL actuator motor assembly |
| 13. | Rocker arm | 14. | Link B | ||
VVEL (Variable Valve Event and Lift) is a system that controls valve event and valve lift continuously.
ECM decides the target valve lift according to the driving condition and sends the command signal to the VVEL control module via ENG communication line.
VALVE LIFT OPERATION
Rotational movement of the drive shaft equipped with eccentric cam is transmitted to output cam via the rocker arm and two kinds of links to depress the intake valve.

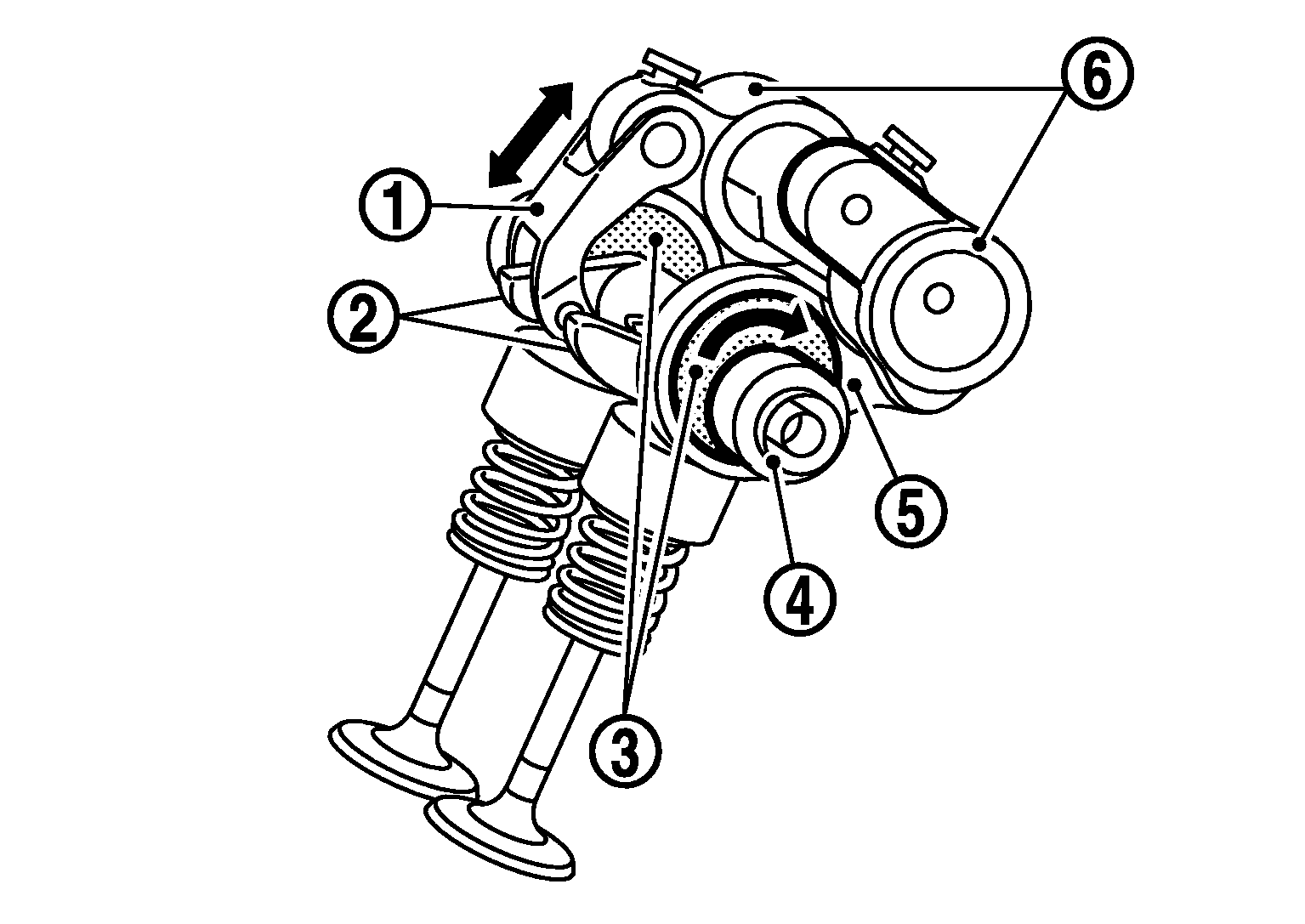

| 1. | Link B |
| 2. | Output cam |
| 3. | Eccentric cam |
| 4. | Drive shaft |
| 5. | Link A |
| 6. | Rocker arm |
VARIABLE OPERATION
VVEL control module controls the rotation of the control shaft using the VVEL actuator motor assembly and changes the movement of the output cam by shifting the link supporting point. As a result, valve lift changes continuously to improve engine output and response.

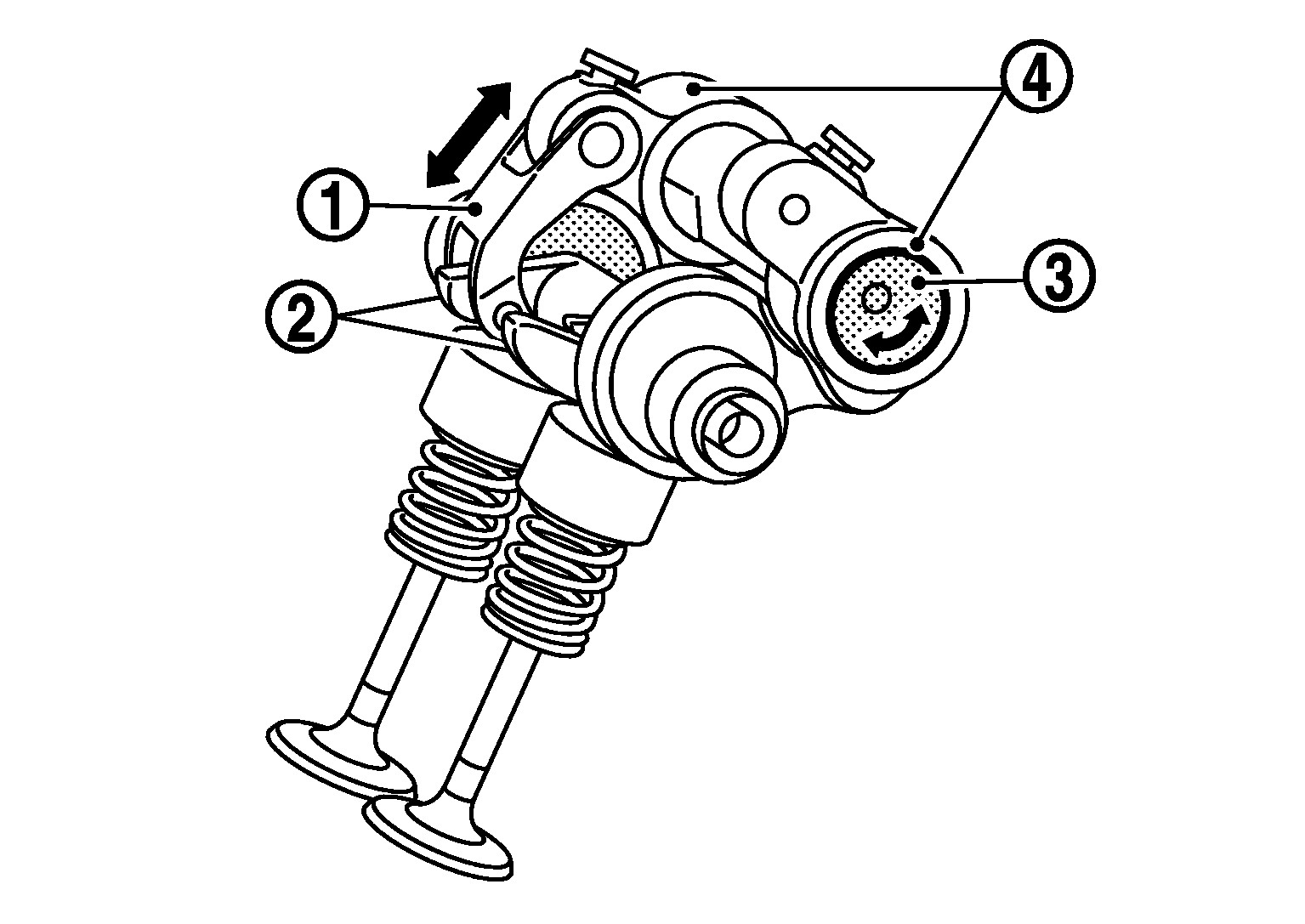

| 1. | Link B |
| 2. | Output cam |
| 3. | Control shaft |
| 4. | Rocker arm |
