DTC Diagnosis Procedure

With CONSULT

1. Turn ignition switch OFF.

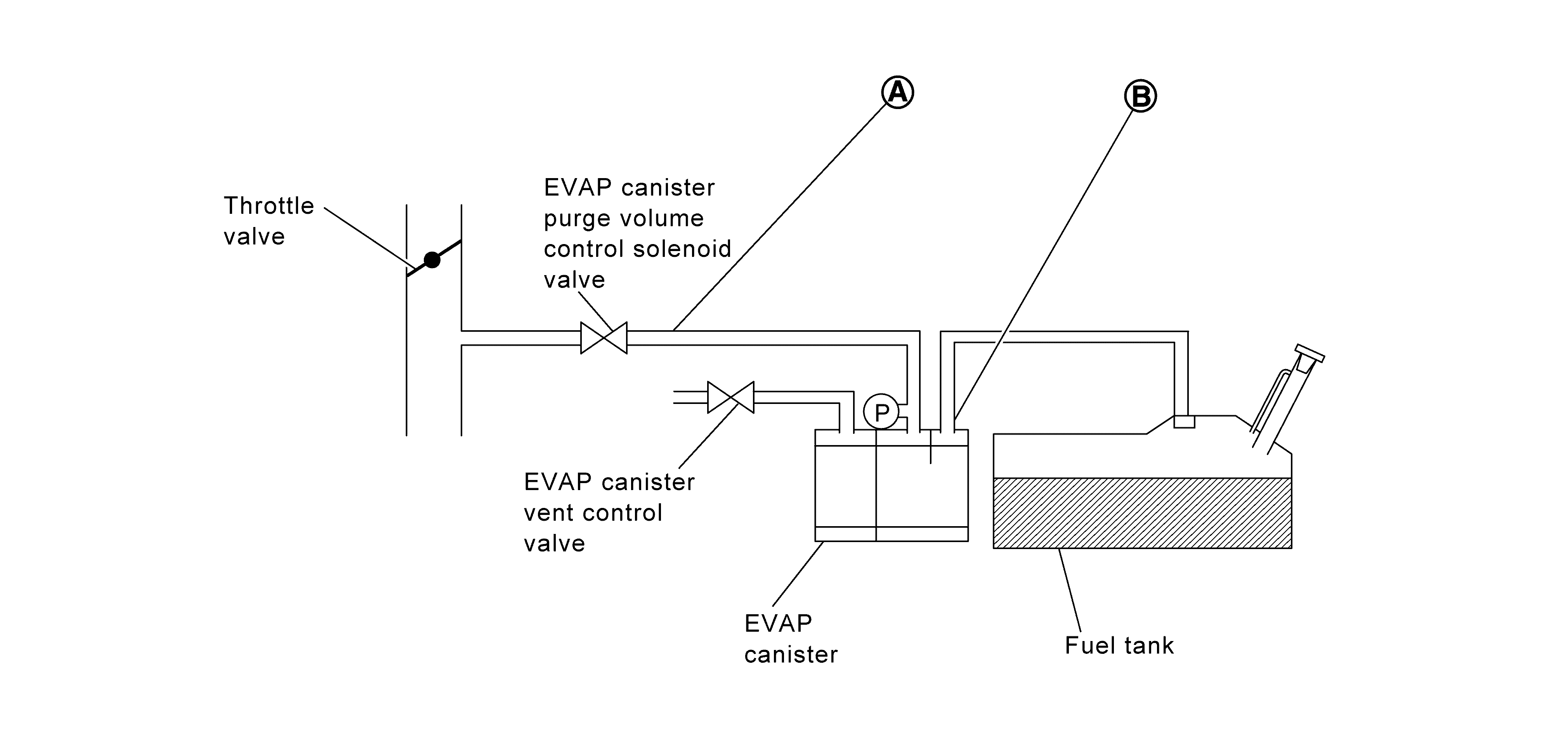

2. Disconnect EVAP purge hose from EVAP canister purge volume control valve.

   Courtesy of NISSAN NORTH AMERICA, INC.

3. Disconnect fuel tank vent hose from EVAP canister.
4. Turn ignition switch ON (engine stopped).
5. On CONSULT screen, select "ENGINE" >> "Work support" >> "EVAP SYSTEM CLOSE".
6. Apply positive pressure (not vacuum) to the hose end using Vacuum/Pressure Hand Pump according to CONSULT screen instructions.
7. Check that the applied pressure does not increase and that pressure is not held.

Is the inspection result normal?

YES>>

Check fuel tank vent line for clogs, vent and installation condition.

NO>>

Replace EVAP canister or EVAP CANISTER : Removal and Installation .
