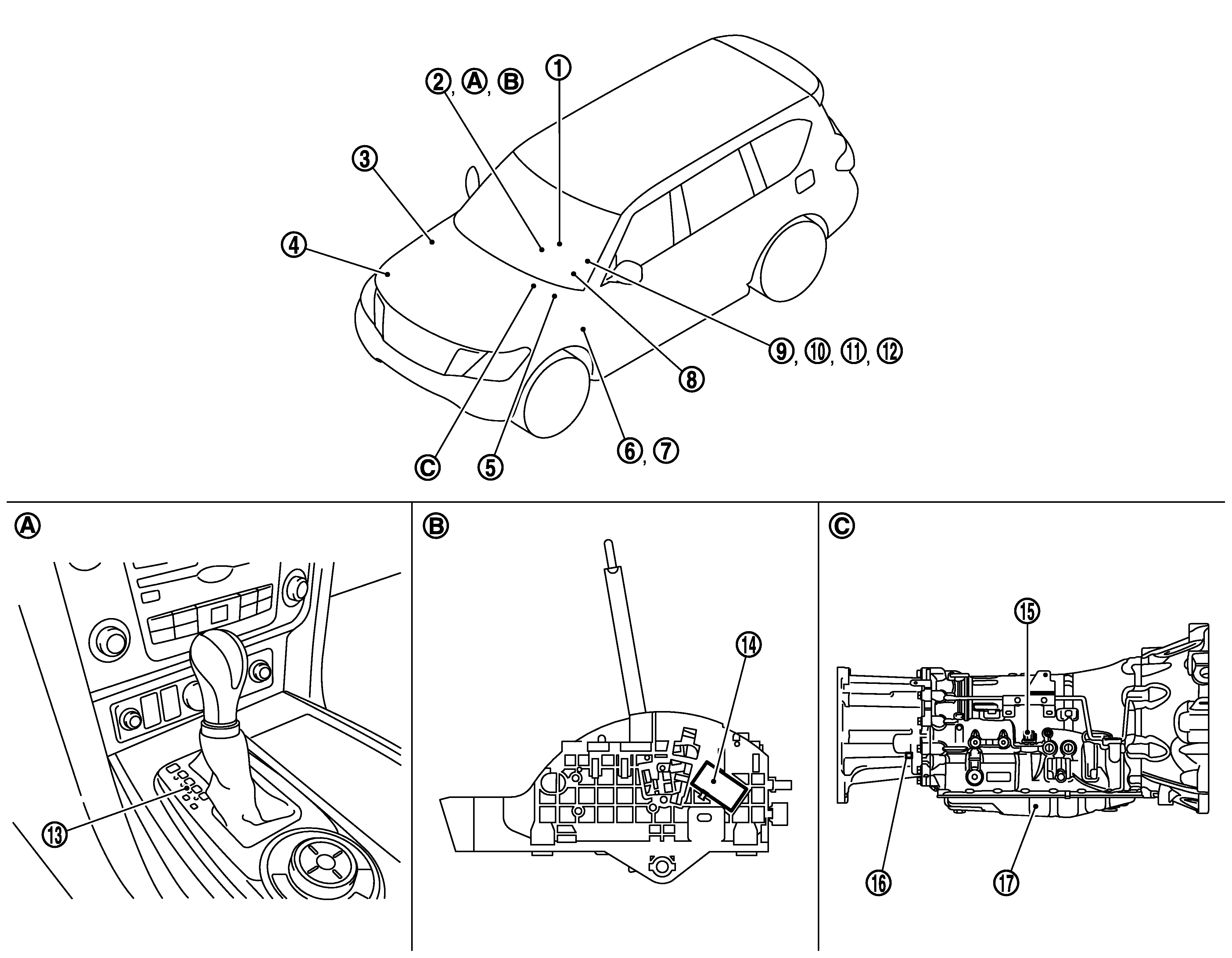

Component Location
| 1. | Yaw rate/side/decel G sensor Refer to Component Location . |
2. | Tow mode switch *1 | 3. | IPDM E/R Refer to Component Location . |
| 4. | ECM Refer to Component Location . |
5. | ABS actuator and electric unit (control unit) Refer to Component Location . |
6. | Accelerator pedal position sensor Refer to Component Location . |
| 7. | Stop lamp switch Refer to Component Location . |
8. | BCM Refer to Component Location . |
9. | Combination meter Refer to Component Location . |
| 10. | Shift position indicator (In the information display in the combination meter) |
11. | A/T CHECK indicator lamp (On the combination meter) |
12. | Tow mode indicator lamp |
| 13. | Selector lever position indicator | 14. | Manual mode switch | 15. | Joint connector |
| 16. | Output speed sensor *2 | 17. | Control valve and TCM *3 | ||
| A. | Center console | B. | A/T shift selector assembly | C. | A/T assembly |
| *1 | : Tow mode switch is integrated in to SNOW MODE/TOW MODE/VDC OFF switch assembly (2WD models) or 4WD switch assembly (4WD models). | ||||
| *2 | : Output speed sensor is installed in A/T assembly. | ||||
| *3 | : Control valve and TCM is installed in A/T assembly. | ||||
NOTE:
The following components are included in the control valve and TCM (17).
- TCM
- Input speed sensor 1, 2
- A/T fluid temperature sensor
- Transmission range switch
- Direct clutch solenoid valve
- High and low reverse clutch solenoid valve
- Input clutch solenoid valve
- Front brake solenoid valve
- Low brake solenoid valve
- Anti-interlock solenoid valve
- 2346 brake solenoid valve
- Line pressure solenoid valve
- Torque converter clutch solenoid valve
