Component Location
2WD MODELS
| 1. | ECM Refer to Component Location . |
2. | Control valve and TCM Refer to Component Location . |
3. | Front wheel sensor Refer to Component Description . |
| 4. | Brake fluid level switch Refer to Component Description . |
5. | ABS actuator and electric unit (control unit) Refer to Component Description . |
6. | Stop lamp switch Refer to Component Description . |
| 7. | Steering angle sensor Refer to Component Description . |
8. | VDC OFF switch Refer to Component Description . |
9. | Yaw rate/side/decel G sensor Refer to Component Description . |
| 10. | Rear wheel sensor Refer to Component Description . |
||||
| A. | Front wheel hub and bearing assembly | B. | Inside engine room | C. | Brake pedal |
| D. | ABS warning lamp, brake warning lamp, VDC warning lamp, VDC OFF indicator lamp | E. | Back of spiral cable assembly | F. | Center console assembly |
| G. | Under center console assembly | H. | Rear wheel hub and bearing assembly | ||

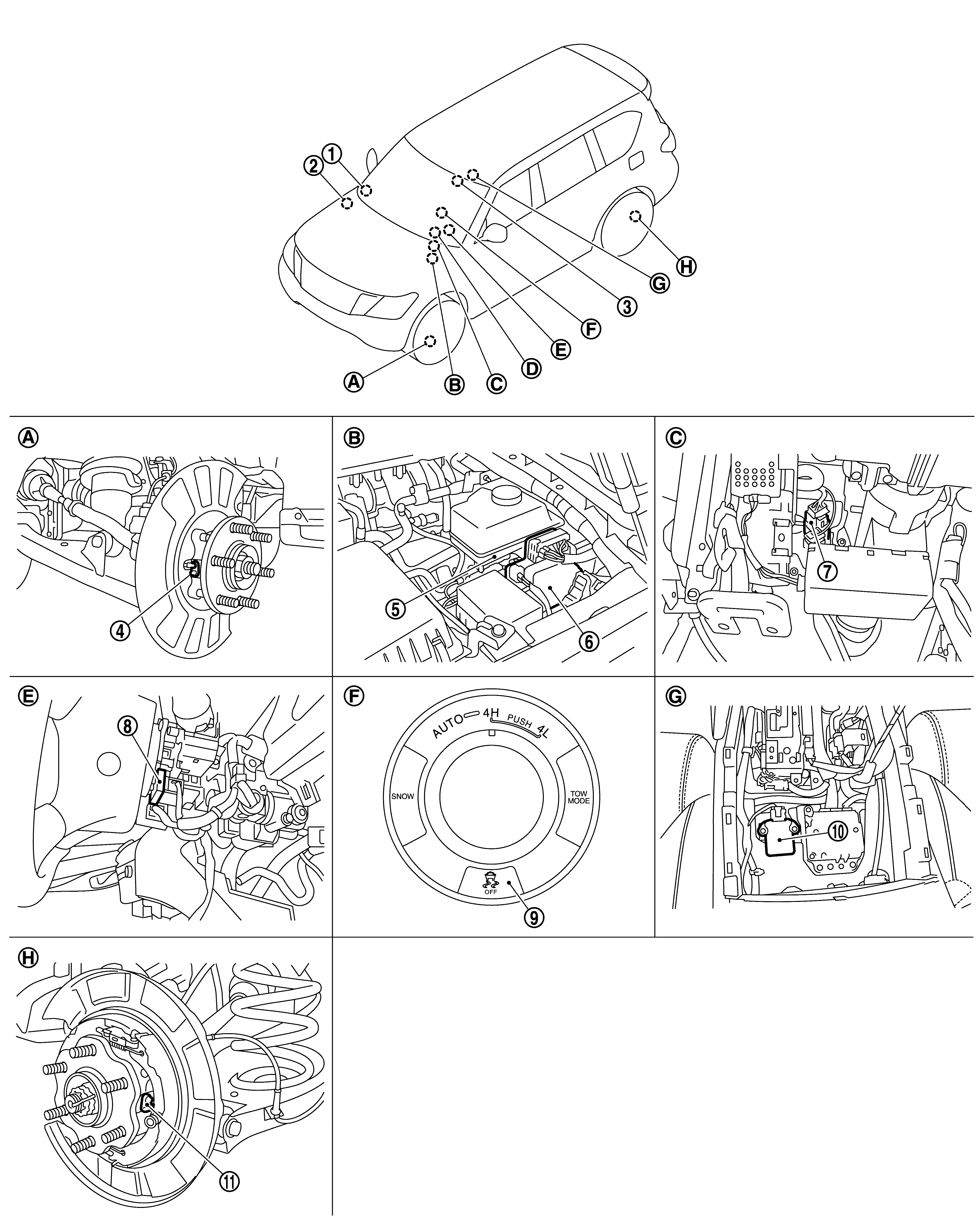

4WD MODELS
| 1. | Transfer control unit Refer to Component Location . |
2. | ECM Refer to Component Location . |
3. | Control valve and TCM Refer to Component Location . |
| 4. | Front wheel sensor Refer to Component Description . |
5. | Brake fluid level switch Refer to Component Description . |
6. | ABS actuator and electric unit (control unit) Refer to Component Description . |
| 7. | Stop lamp switch Refer to Component Description . |
8. | Steering angle sensor Refer to Component Description . |
9. | VDC OFF switch Refer to Component Description . |
| 10. | Yaw rate/side/decel G sensor Refer to Component Description . |
11. | Rear wheel sensor Refer to Component Description . |
||
| A. | Front wheel hub and bearing assembly | B. | Inside engine room | C. | Brake pedal |
| D. | ABS warning lamp, brake warning lamp, VDC warning lamp, VDC OFF indicator lamp | E. | Back of spiral cable assembly | F. | Center console assembly |
| G. | Under center console assembly | H. | Rear wheel hub and bearing assembly | ||
