Component Function Check

1. Start engine.
2. Check "FUEL PRES SEN V" in "DATA MONITOR" mode with CONSULT.

   Monitor Item	Condition	Values/Status
   FUEL PRES SEN V	Engine speed: Idle	820 - 1, 220 mV
   	Engine speed: Revving engine from idle to 4, 000 rpm quickly	820 - 3, 060 mV

WITHOUT CONSULT

1. Start engine.
2. Check the voltage between ECM harness connector and ground.

   ECM				Condition	Voltage
   +		-
   Connector	Terminal	Connector	Terminal

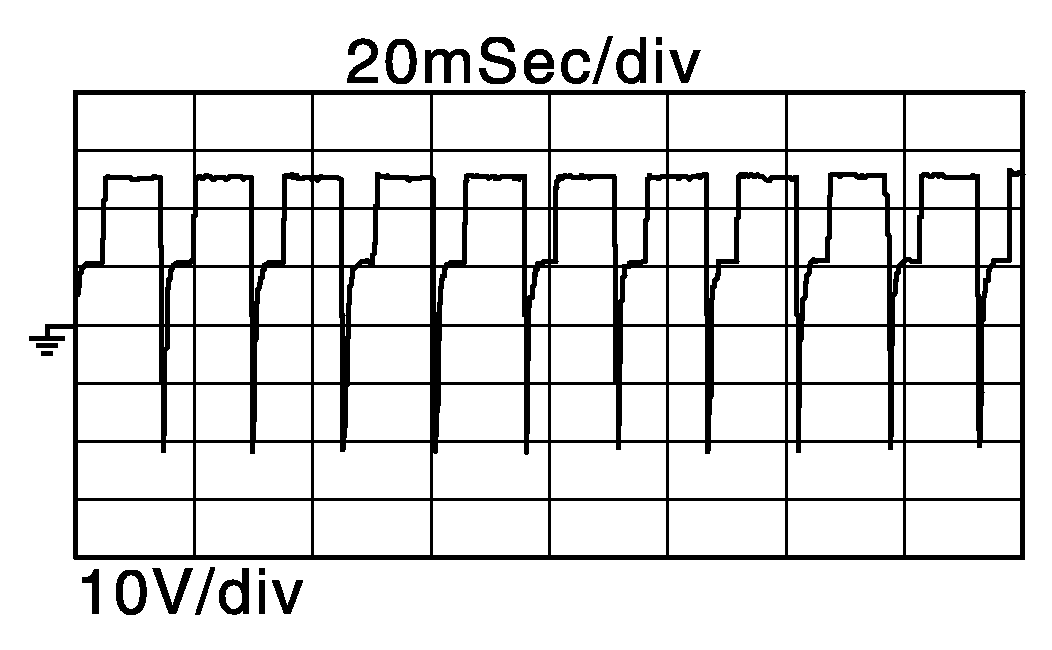

   F92	59	E20	152	[Engine is running] Warm-up condition Idle speed NOTE: The pulse cycle changes depending on rpm at idle	BATTERY VOLTAGE (11 - 14 V) Courtesy of NISSAN NORTH AMERICA, INC.

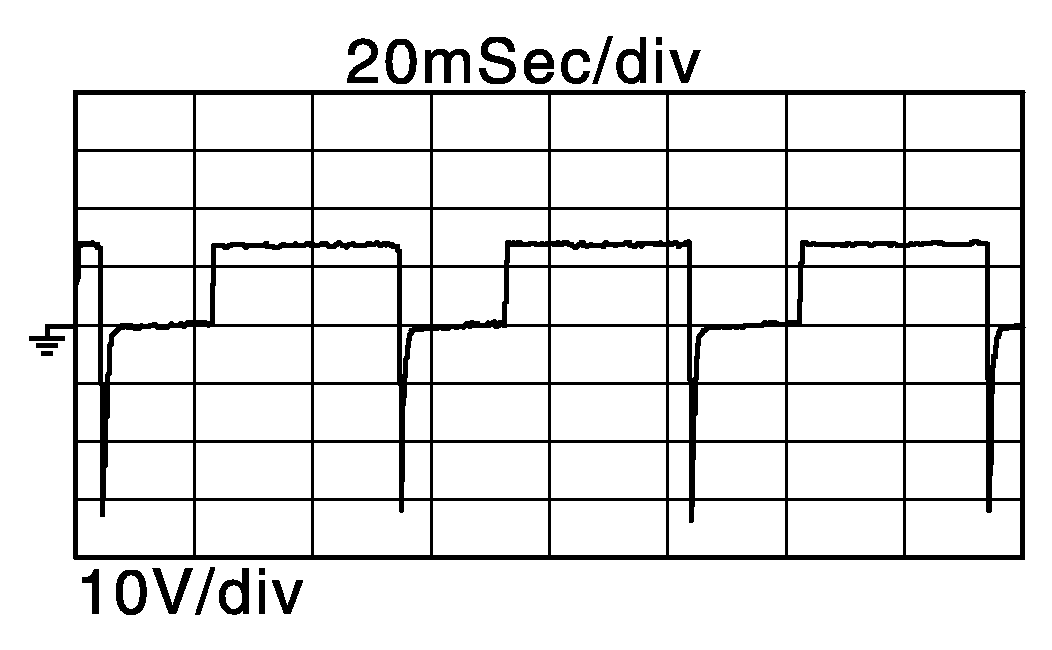

   				[Engine is running] Warm-up condition Engine speed: 2, 000 rpm	BATTERY VOLTAGE (11 - 14 V) Courtesy of NISSAN NORTH AMERICA, INC.

Is the inspection result normal?

YES>>

INSPECTION END

NO>>

Refer to Diagnosis Procedure .
