Diagnostic Circuit Check

Fig. 5 Electronic control module terminal identification.:

Fig. 7 Diagnosis circuit check.:

During the following procedures, it may be necessary to identify the ECM terminals. Refer to Fig. 5 for identification.

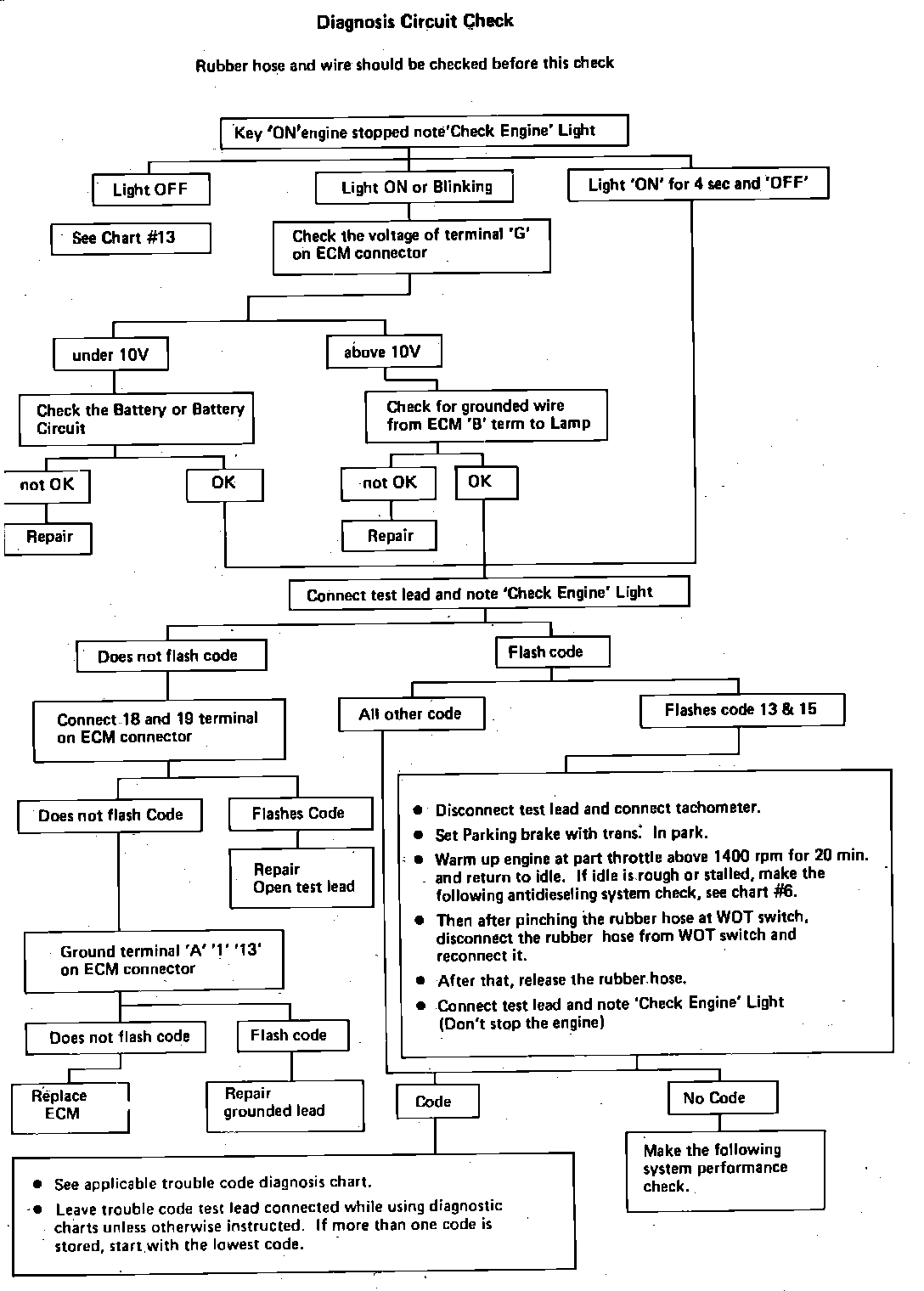

Refer to Fig. 7 for Diagnostic Circuit Check.
