Electronic Control Module (ECM) Check, Chart 2

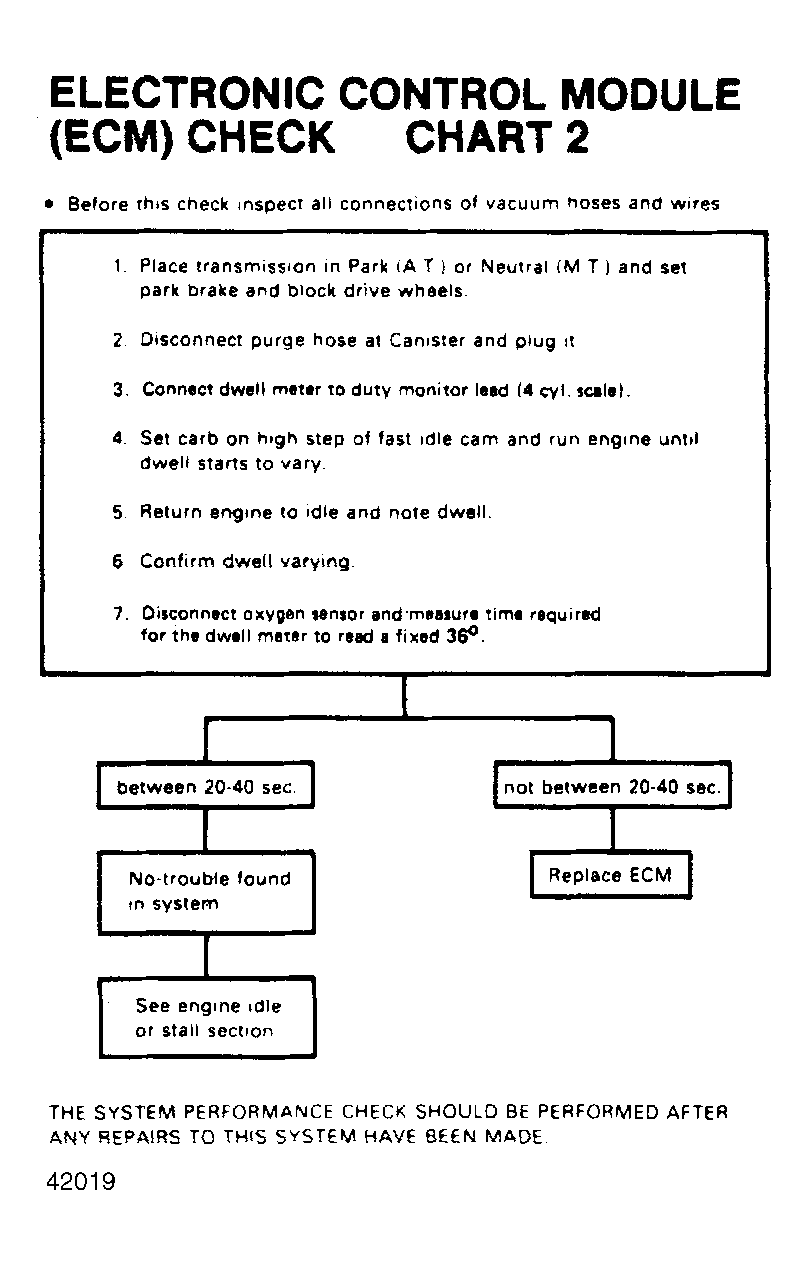

Fig 1: Electronic Control Module (ECM) Check, Chart 2
G42019
