Emission Control Systems: Locations

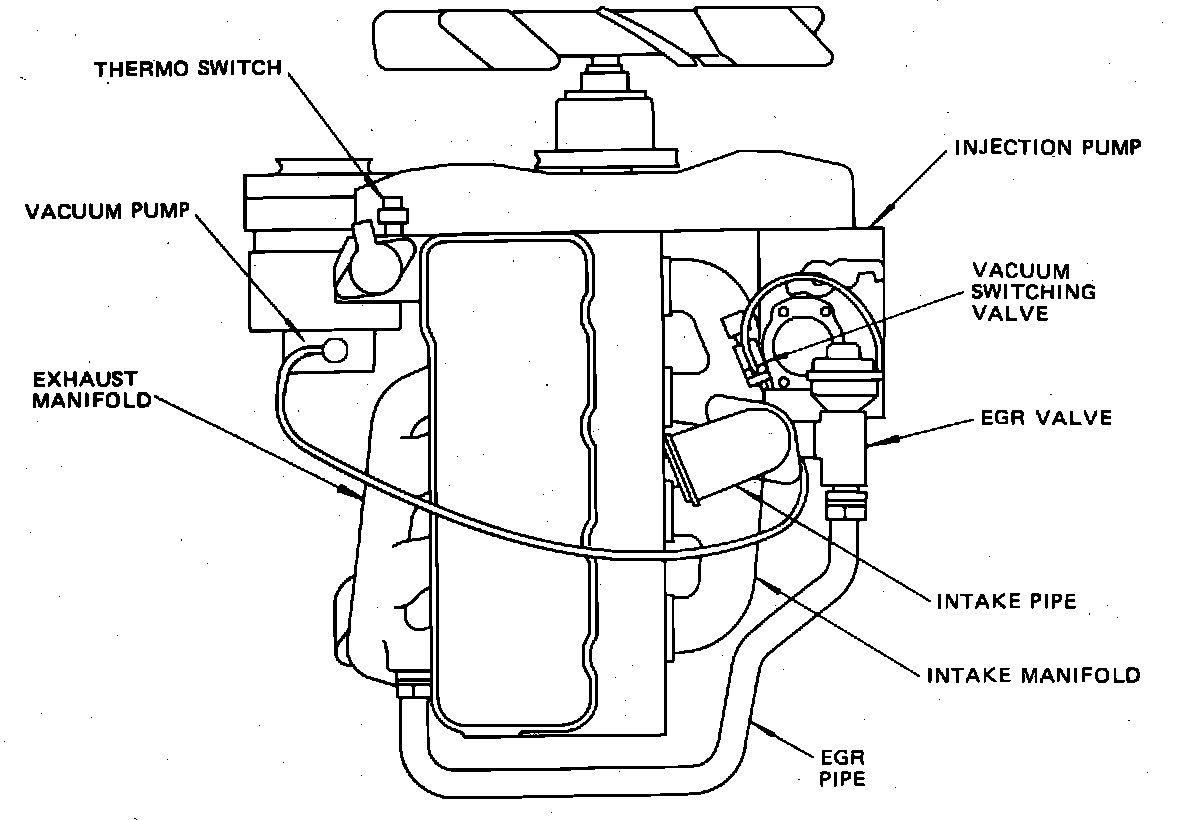

Diesel Emission Components.:

In Engine Compartment

Applicable to: 1984-85 I-Mark w/Diesel Engine
