Emission Control Systems: Locations

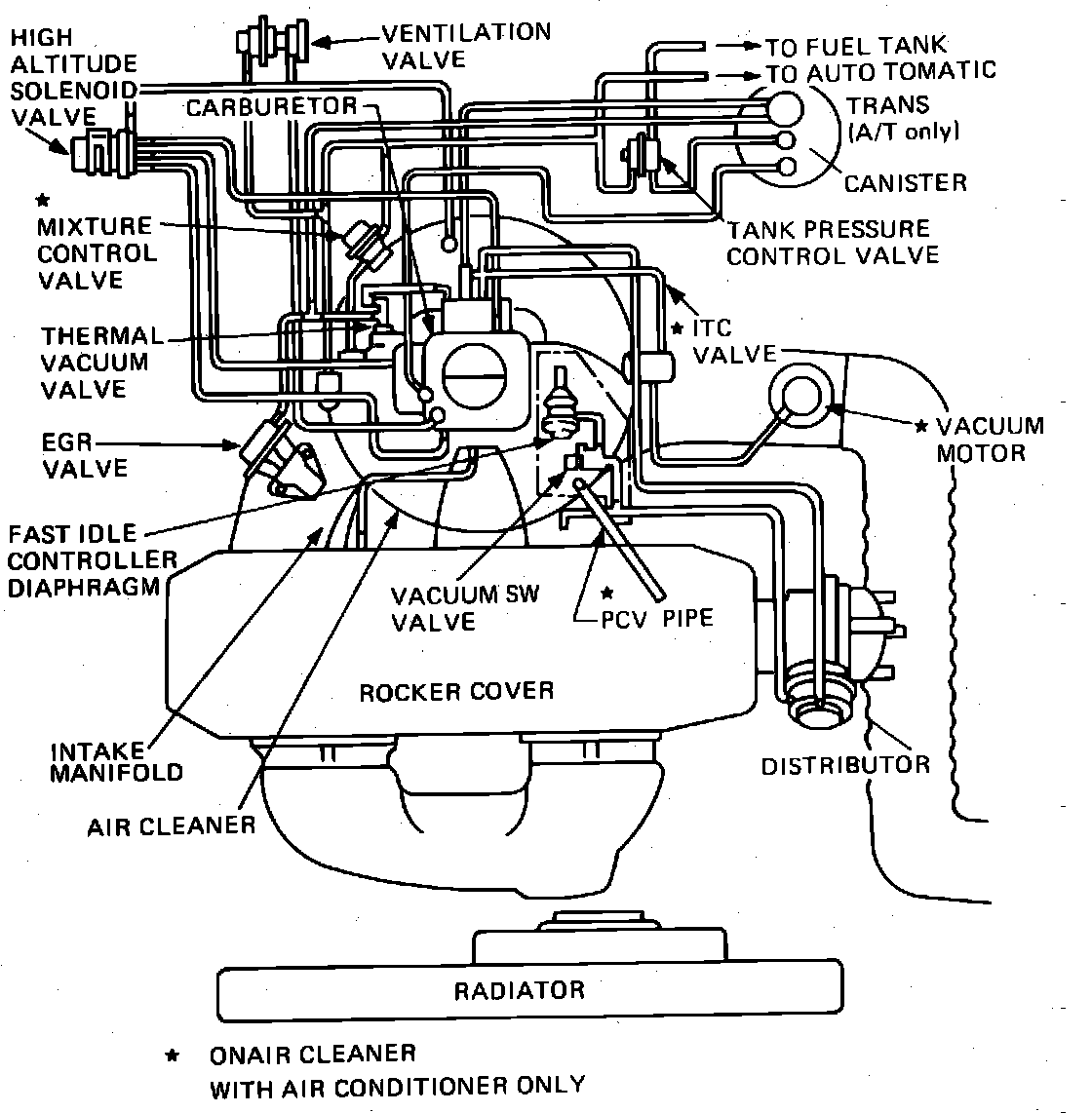

Emission Control Components.:

In Engine Compartment

Applicable to: 1985-86 I-Mark w/FWD
