Compressor Clutch: Testing and Inspection

PART 1

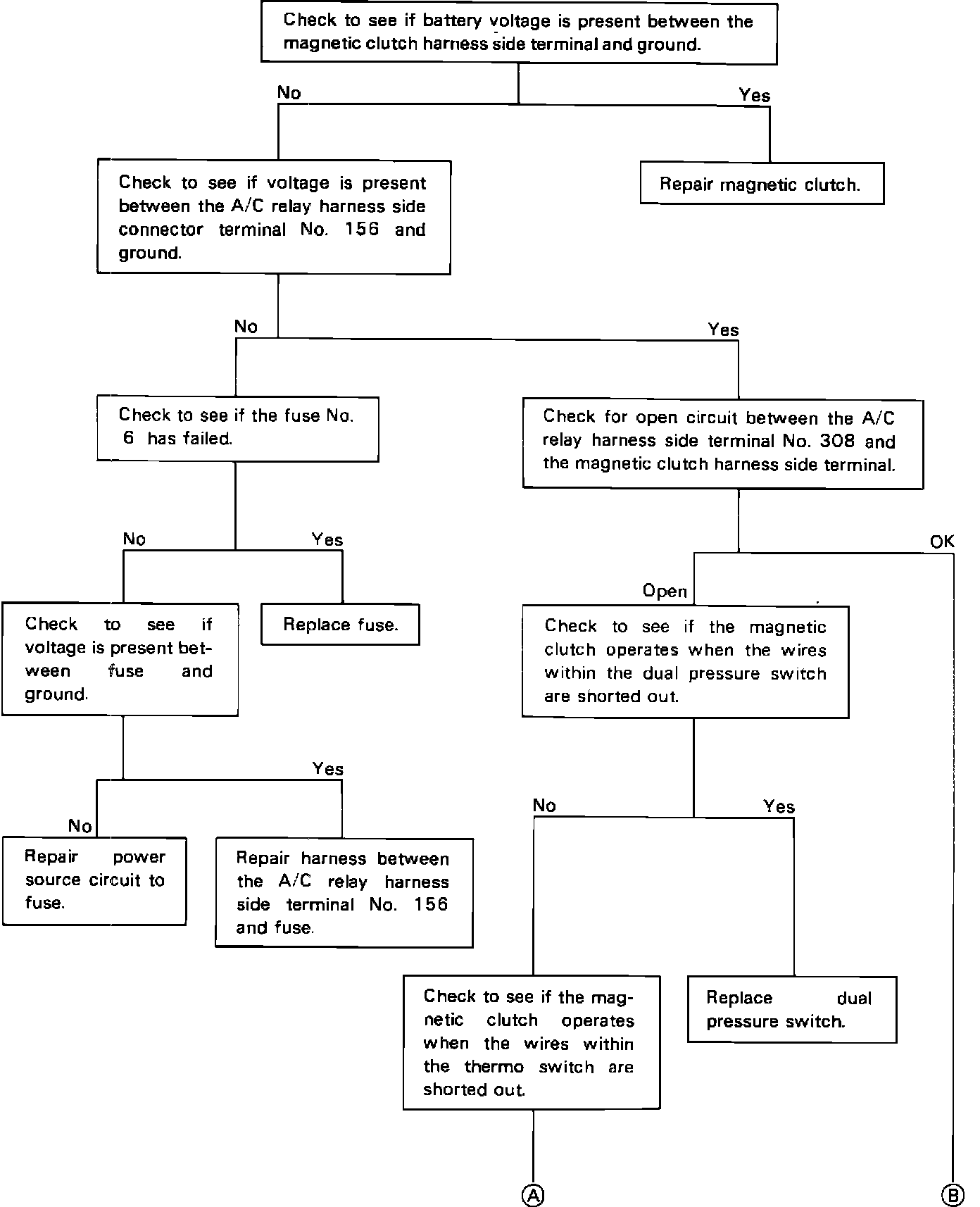

Magnetic Clutch Inoperative (Part 1):

PART 2

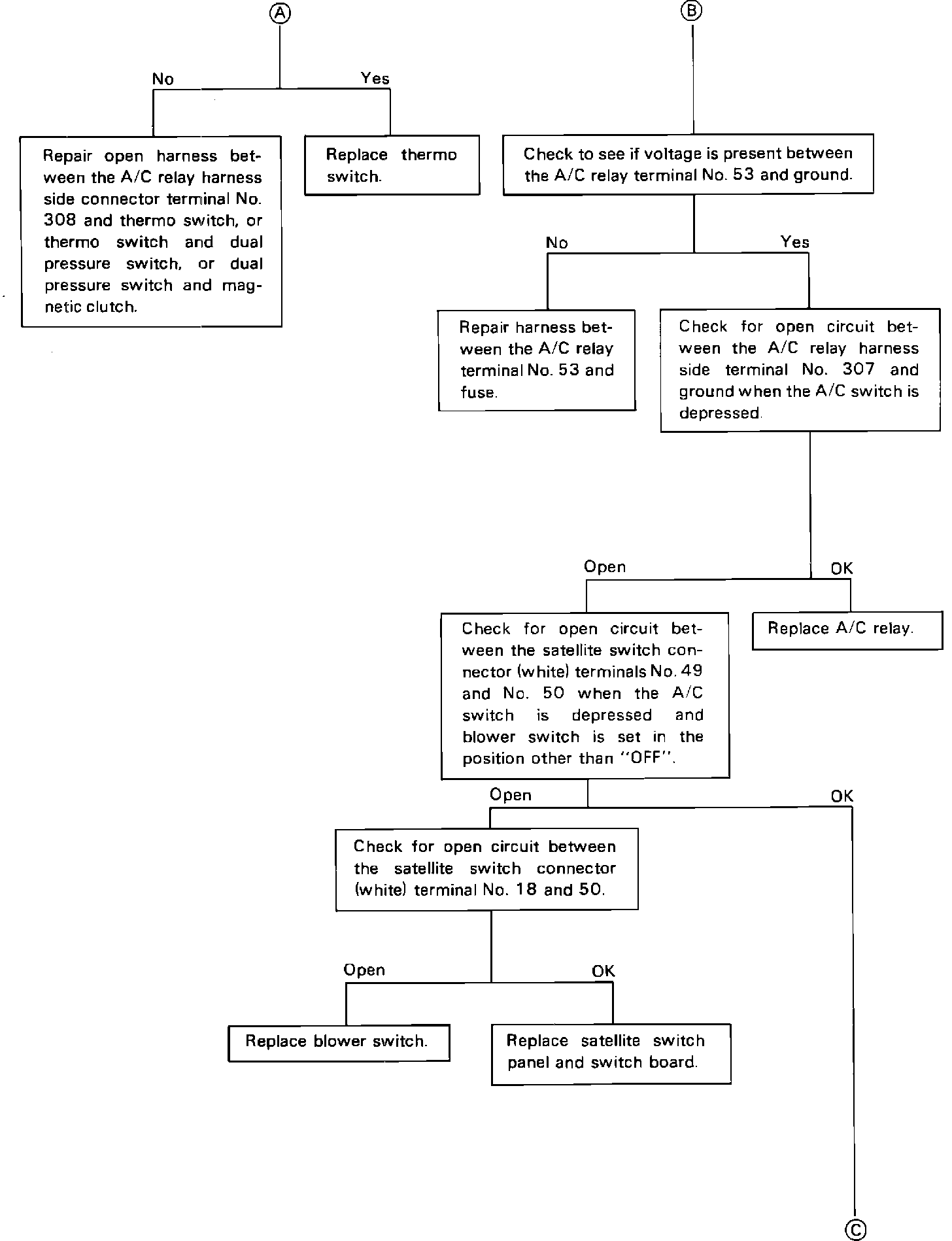

Magnetic Clutch Inoperative (Part 2):

PART 3

Magnetic Clutch Inoperative (Part 3):

Magnetic clutch will not engage when high side pressure falls below 28 psi or rises above 384 psi.
