Diode: Locations

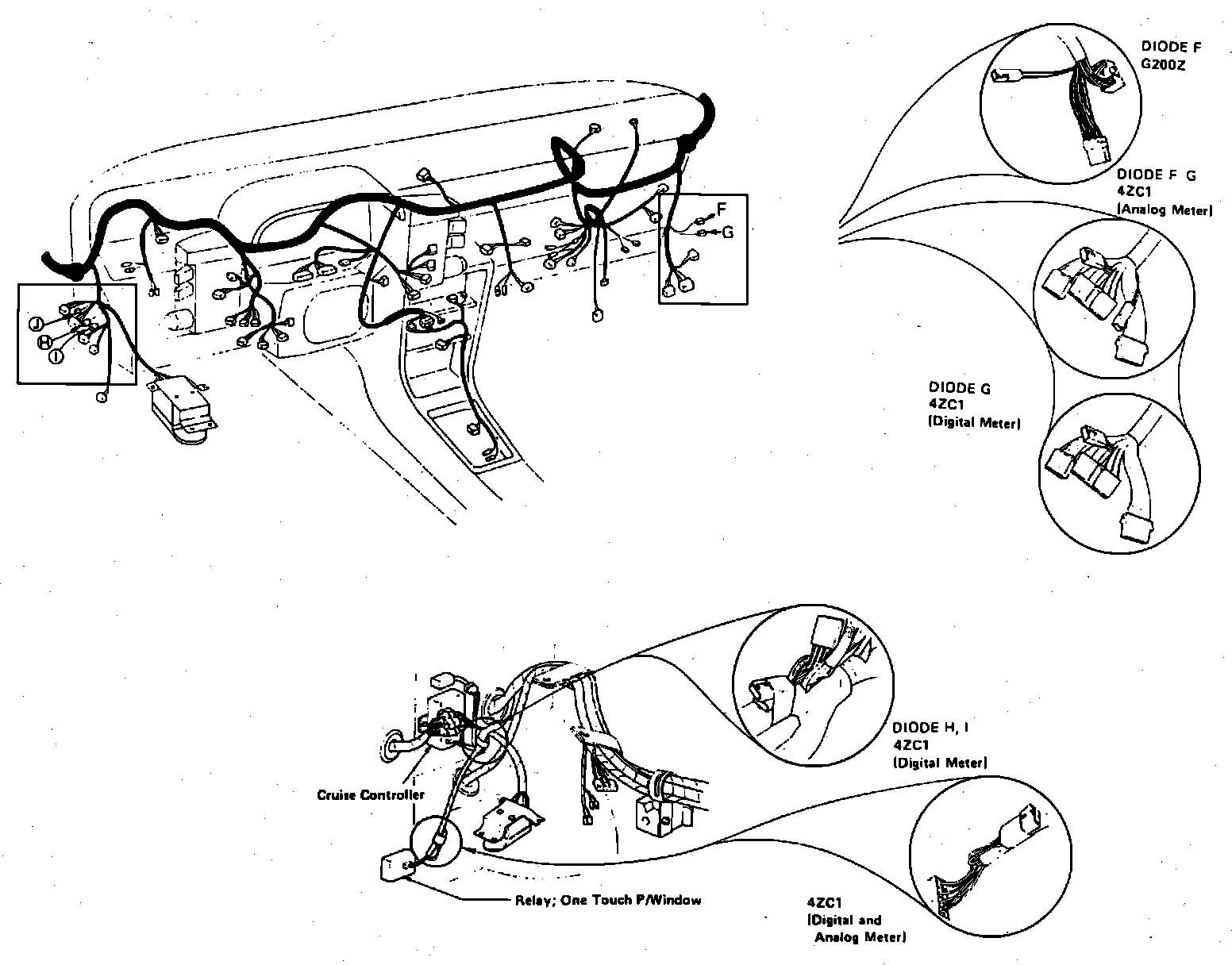

Diode Locations (I/P).:

Behind Instrument Panel

Applicable to: Impulse

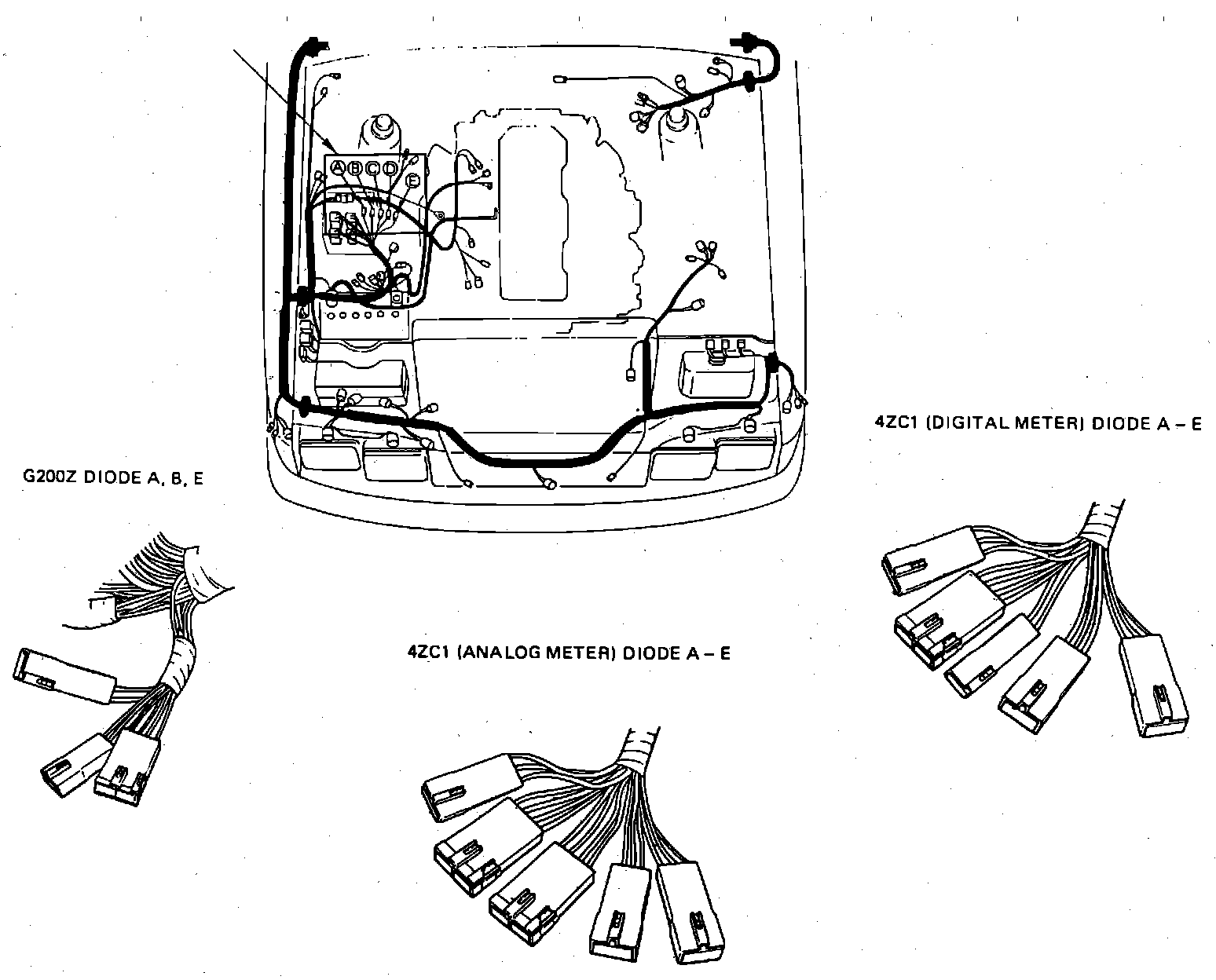

Diode Locations (Engine Compartment).:

In Engine Compartment

Applicable to: Impulse

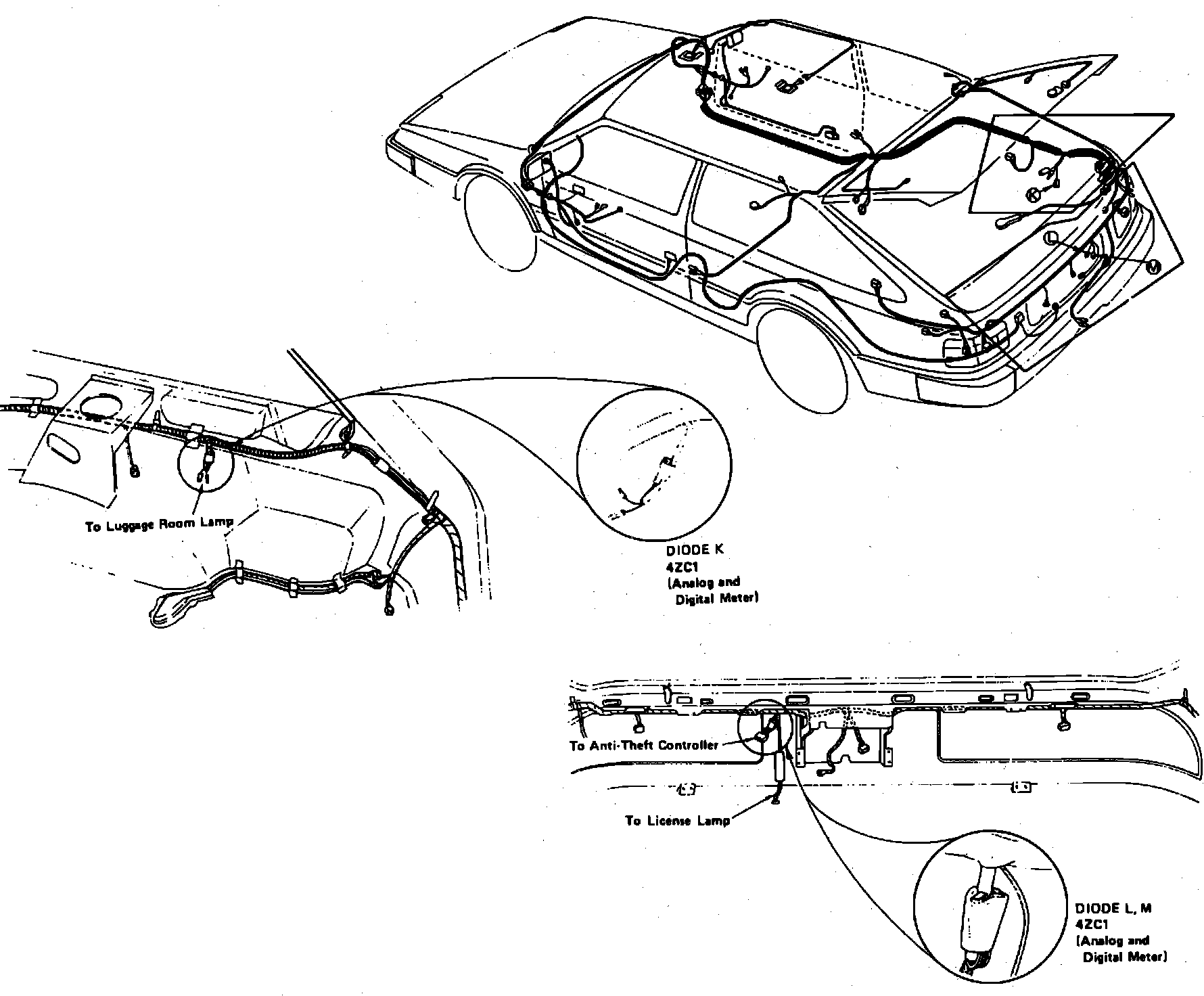

Diode Locations (Body).:

On Body

Applicable to: Impulse
