Knock Sensor: Locations

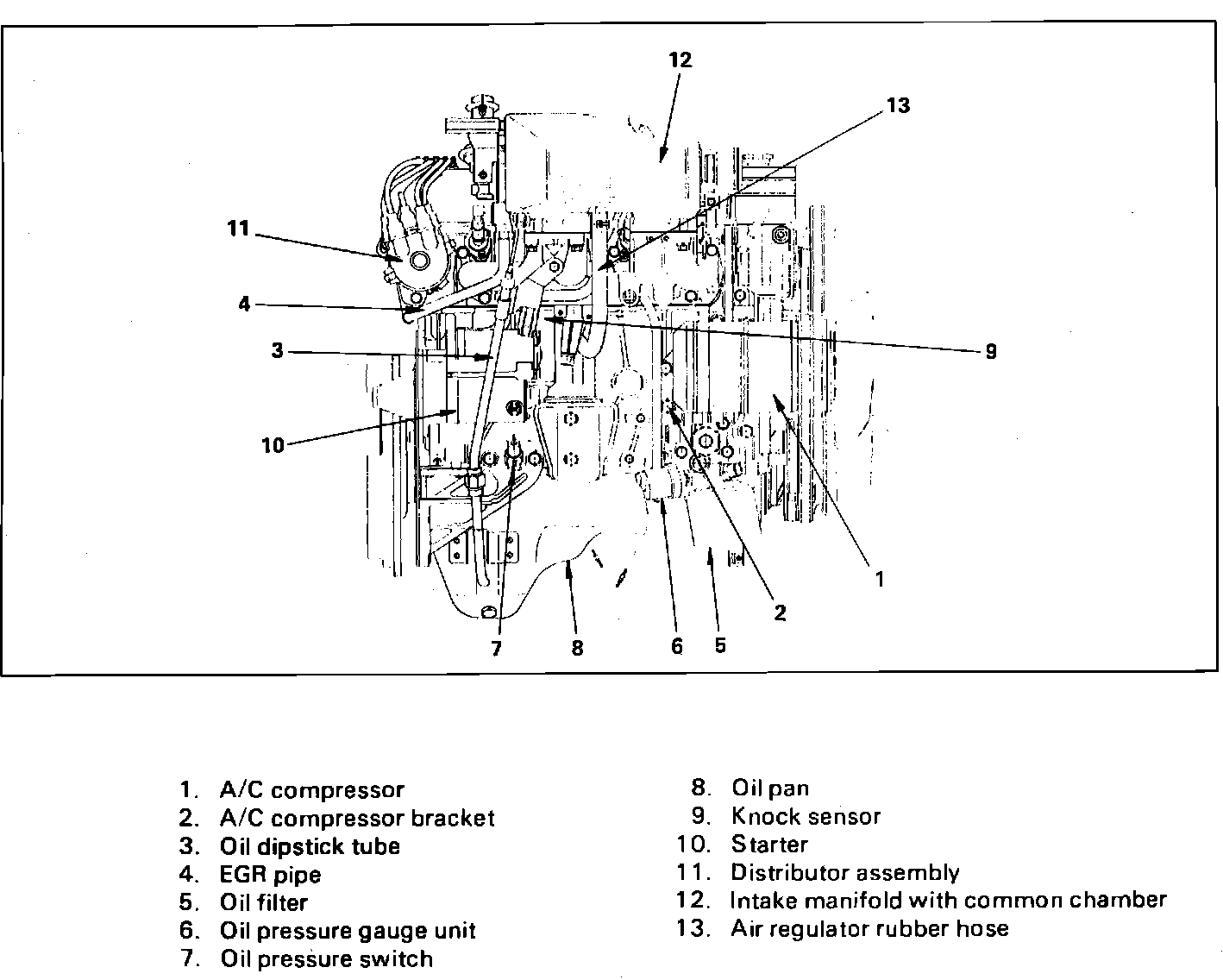

RH Side Of 4ZC1-T Engine.:




RH Side Of Engine

Applicable to: Impulse

Fuel System Components.:




Front RH Side Of Engine

Applicable to: Impulse w/4ZC1-T Engine
