Test 11 - Power Transistor System (Codes 23, 35 And 54)

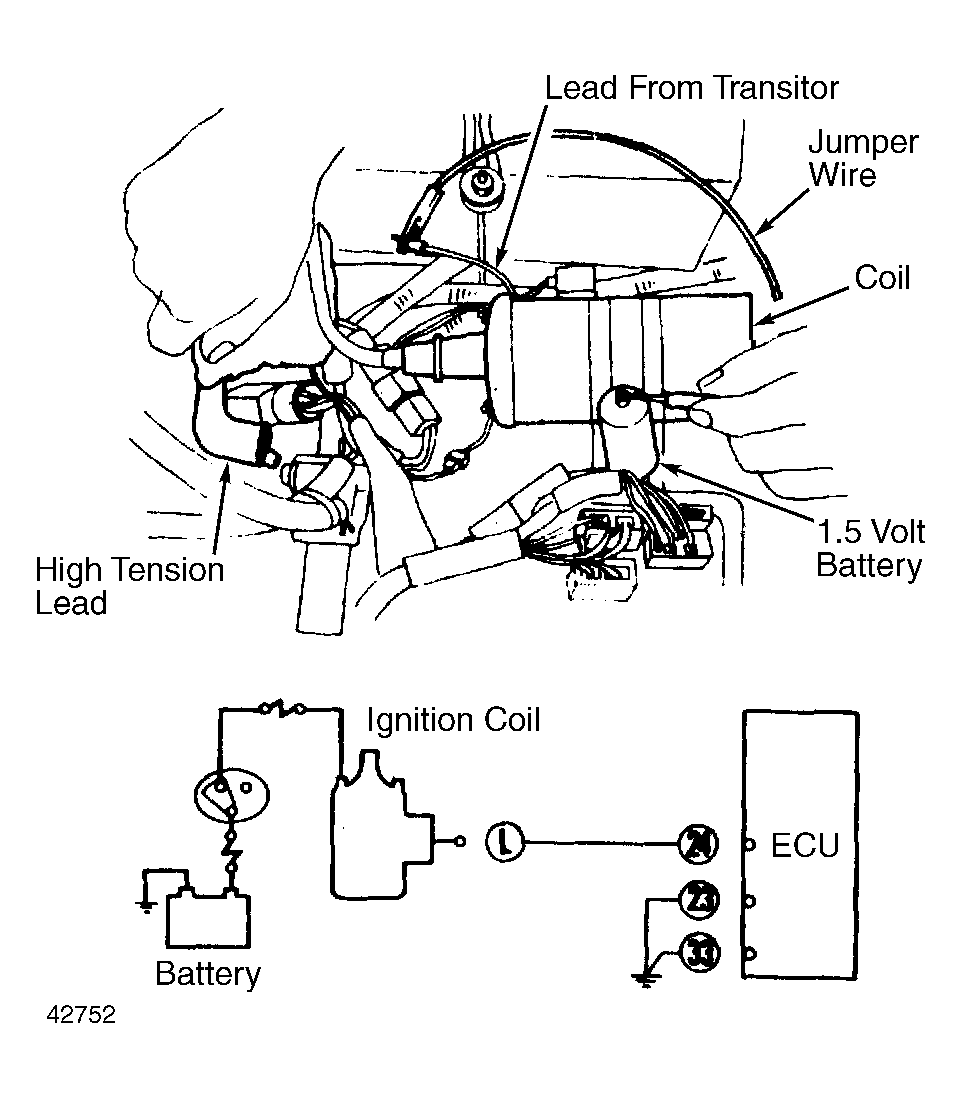

- Disconnect power transistor harnesses at connector. Disconnect high tension wire between coil and distributor cap. Hold high tension lead 1/4" (6 mm) away from ground. Turn ignition switch on.
- Use a jumper wire to connect "Y" terminal of transistor to positive side of 1.5-volt battery. Connect negative side of battery to ground. Disconnect jumper wire from battery. Check to see if a spark is created from the high tension lead to ground. If a spark is not created, replace power transistor and bracket assembly.
- If transistor is okay, unplug ECU connectors at ECU. Disconnect wire from ignition coil. Check continuity of transistor circuit as indicated in table. If resistance is incorrect, repair or replace harness.
TESTING POWER TRANSISTOR CIRCUIT
| Trouble Code | ECU Connector Terminal No. | Test Point | Resistance (Ohms) |
|---|---|---|---|
| 23 | 24 | Ground | Infinity |
| 35 | 24 | Coil Wire | 0 |
| 54 | 23 | Ground | 0 |
