Transmission Control Systems: Diagrams

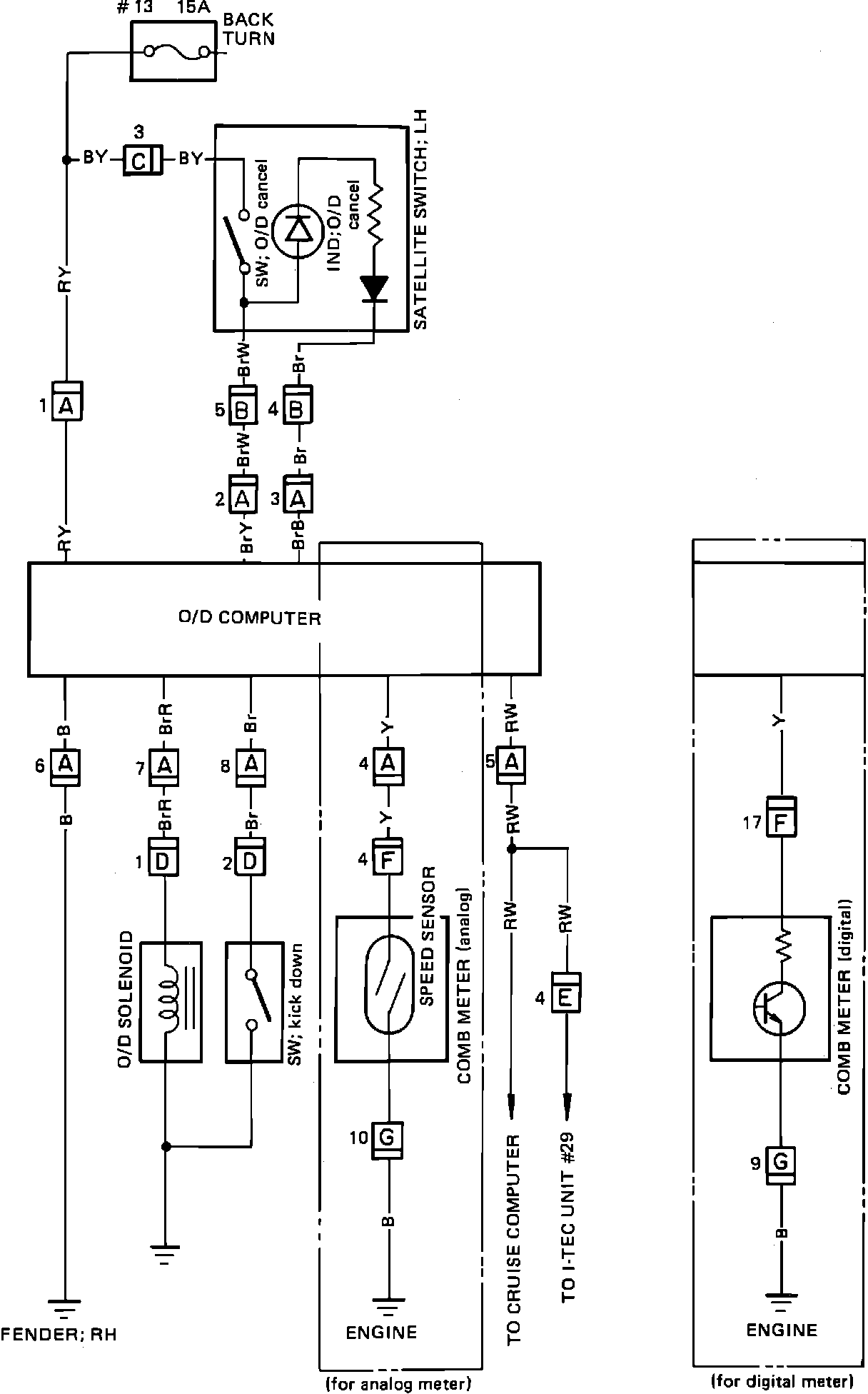

Injector Blower, Overdrive & Overdrive Lock Up:



Injector Blower, Overdrive & Overdrive Lock Up:



Injector Blower, Overdrive & Overdrive Lock Up:
