Closed Loop System Check (Duty Cycle Performance)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Closed Loop System Check (Duty Cycle Performance)

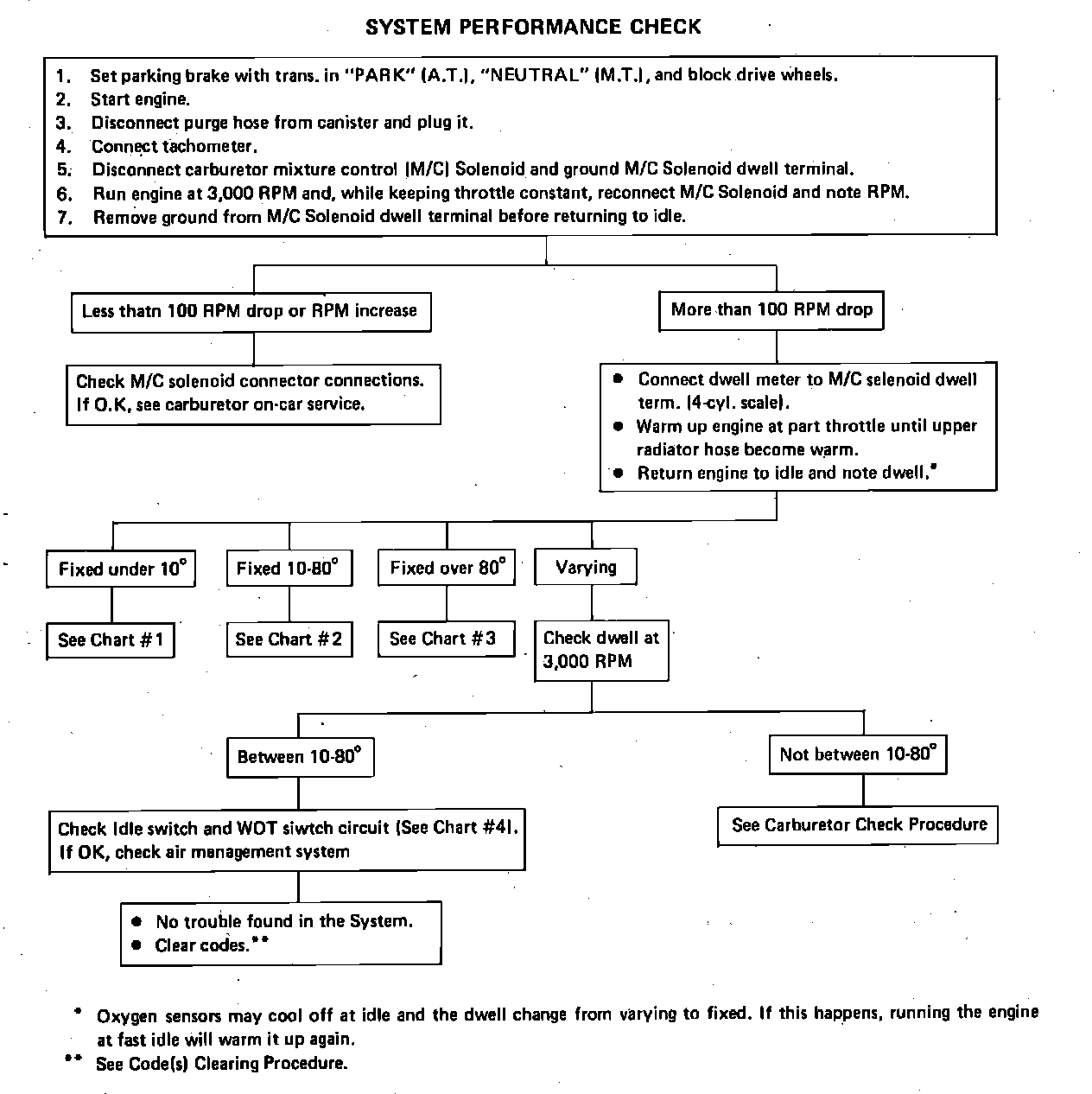

Fig. 11 System performance check.:
