Heater Core Case: Service and Repair

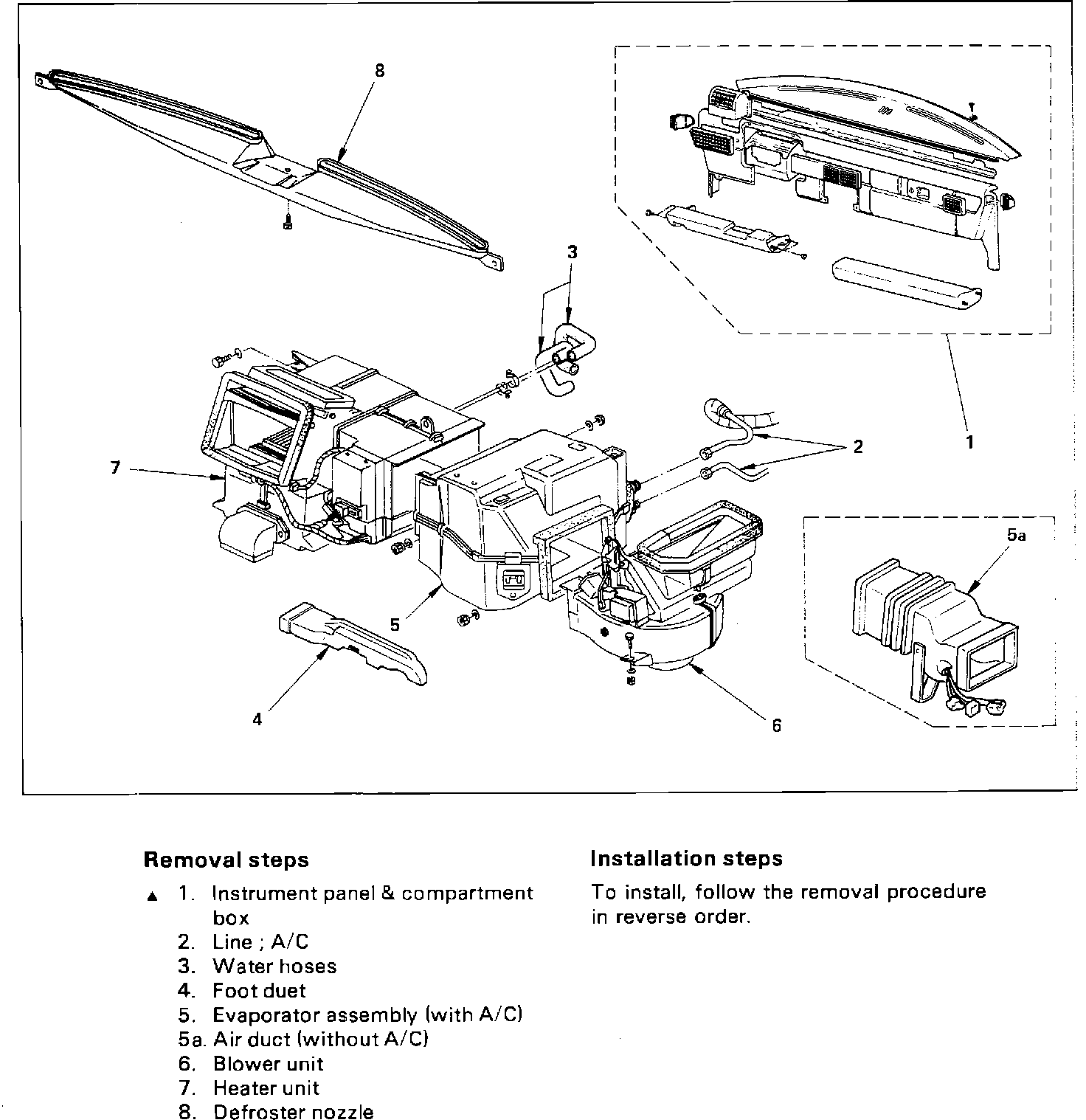

Heater Unit, Blower Unit, And Evaporator Assembly:



Heater Unit:
