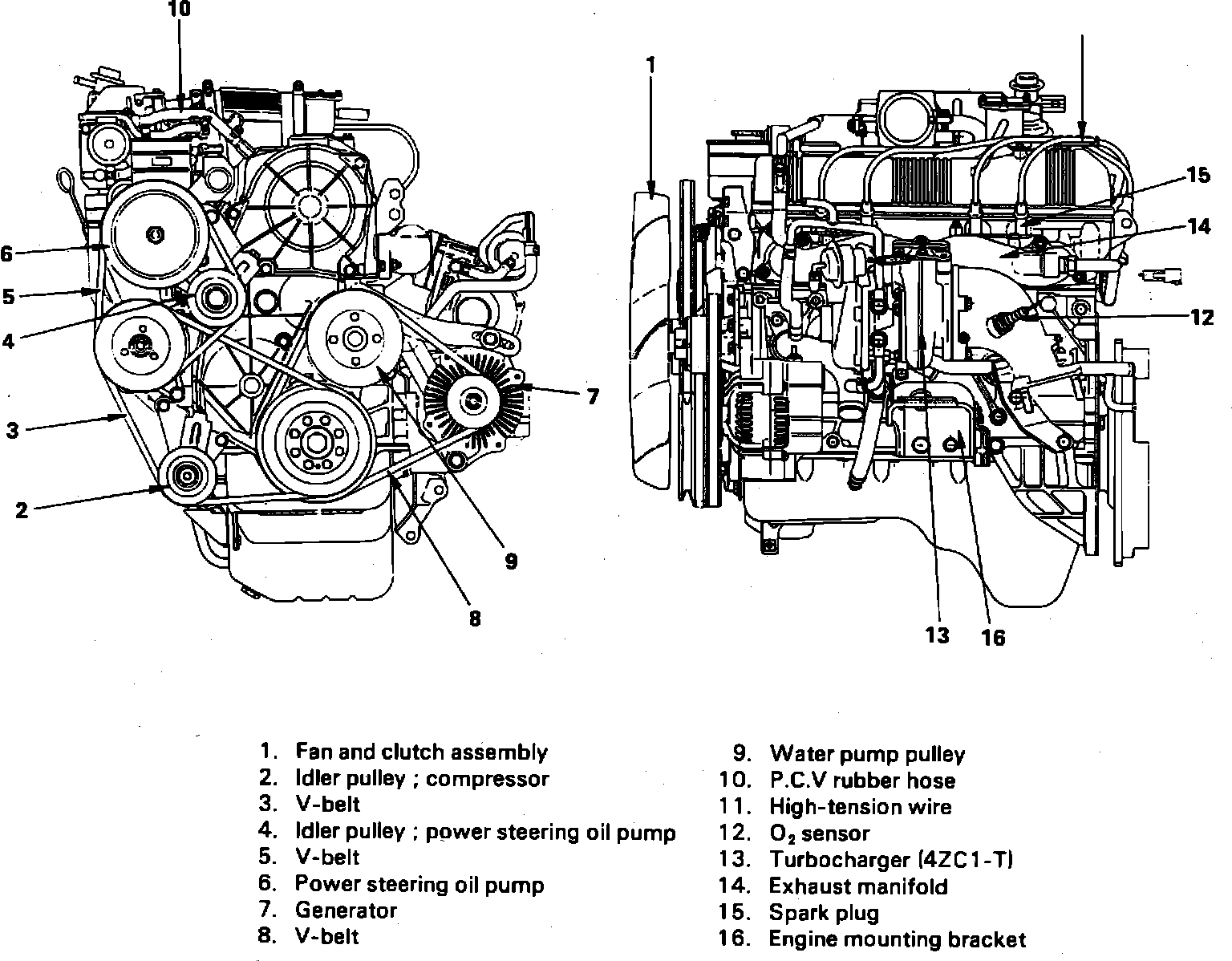

Oxygen Sensor: Locations

Front & LH Side Of Engine.:

In Exhaust Manifold

Applicable to: 1988 Impulse w/4ZC1-T Engine
