Idle Air Control (IAC) Valve



DIAGNOSTIC CHART

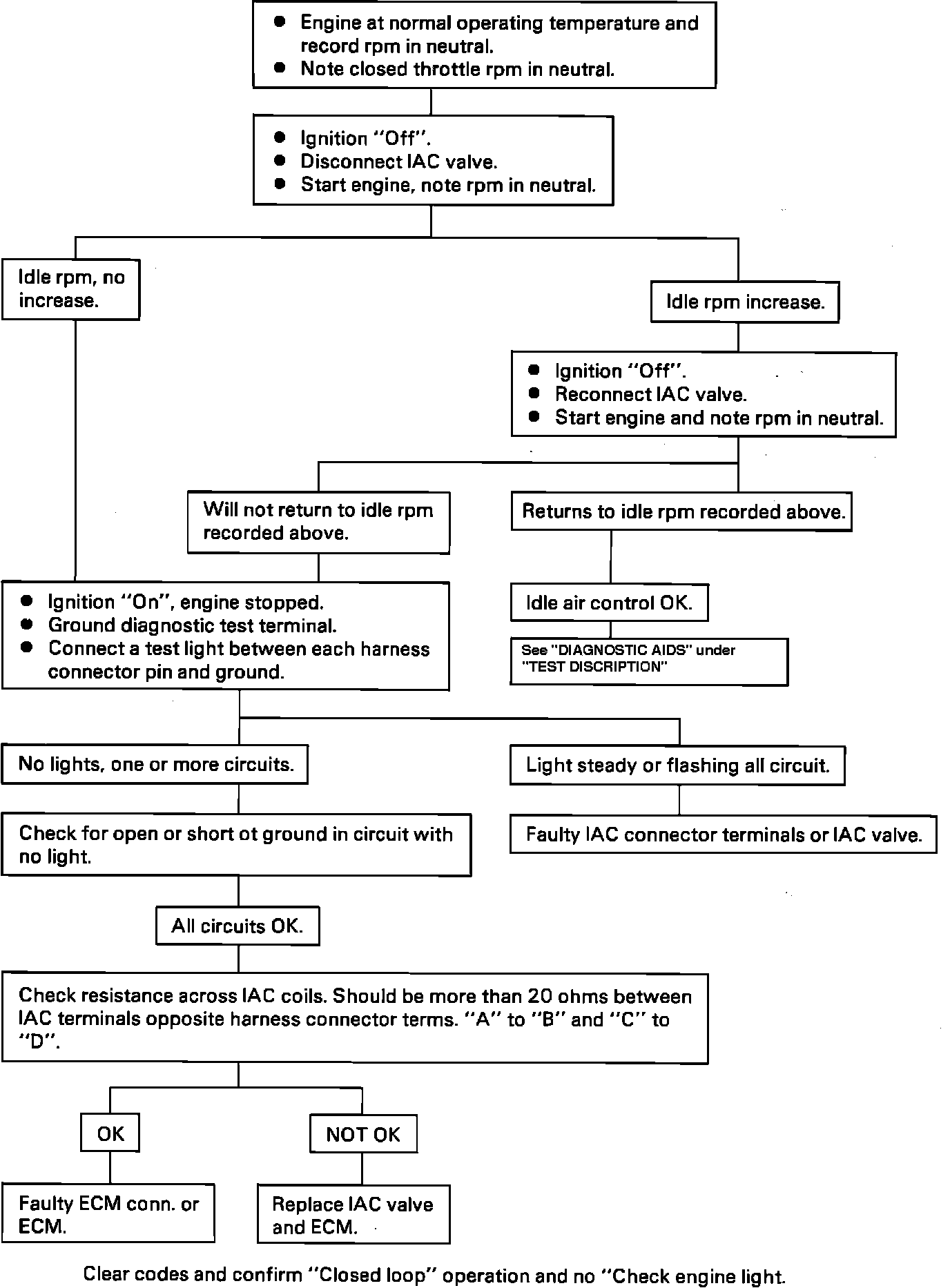

Idle Air Control (IAC) Valve Diagnostic Chart:







TEST DESCRIPTION

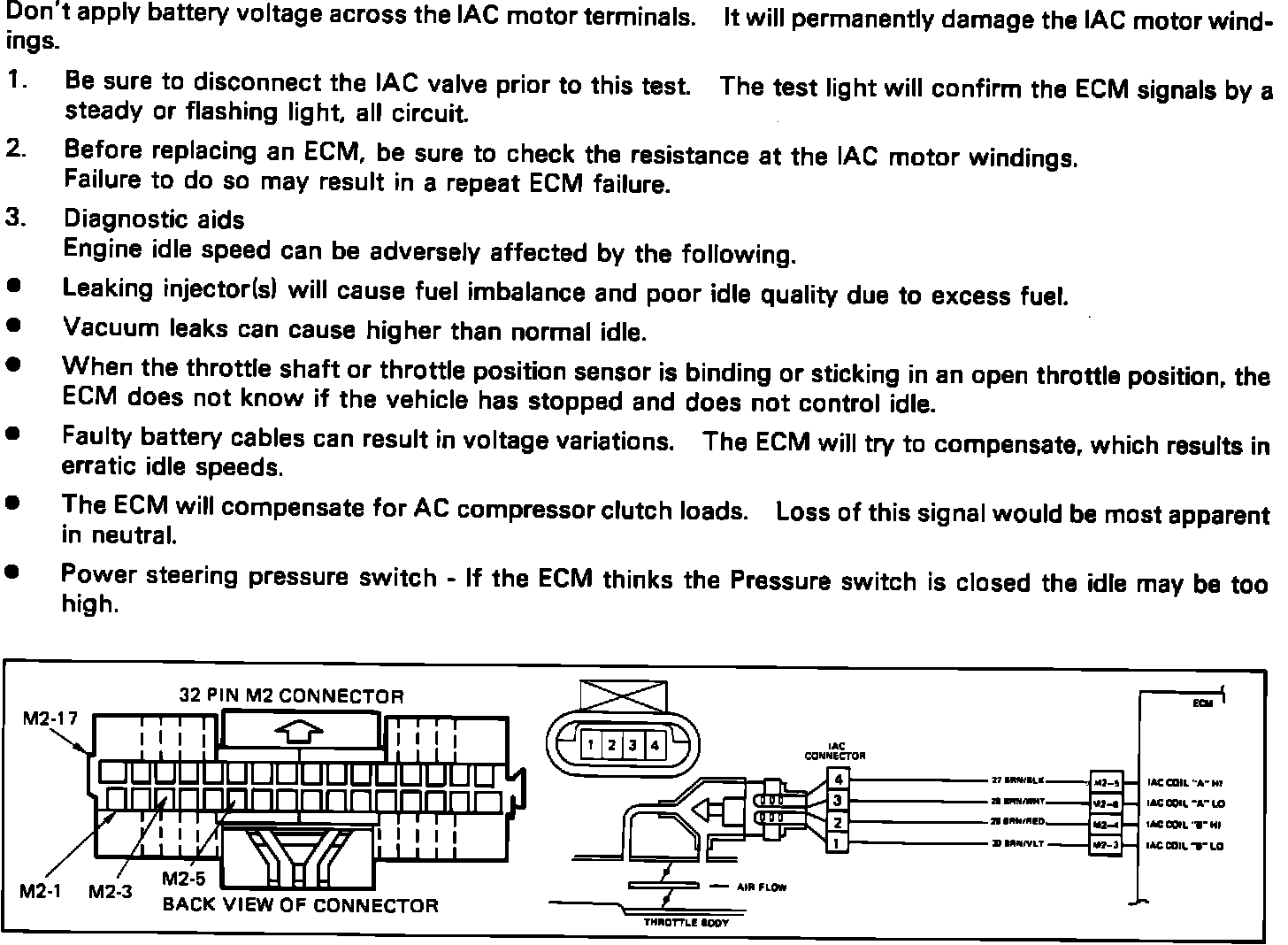

Idle Air Control (IAC) Valve Test Description:
