I-Mark L4-1471cc 1.5L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Throttle Position Sensor
>>
Testing and Inspection
>>
Non-Turbo
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Non-Turbo

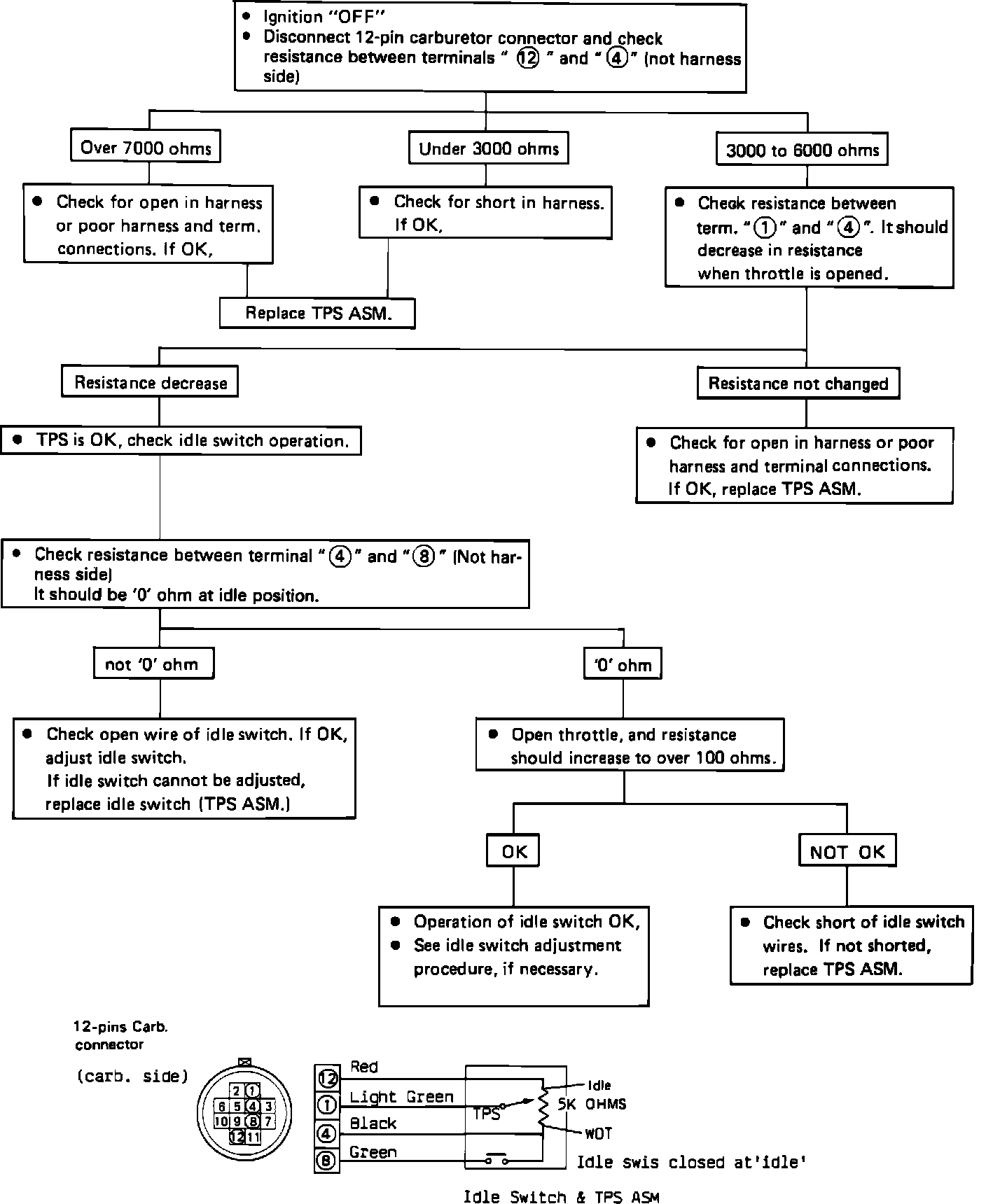

Idle Switch And TPS Diagnostic Chart:
