System Specifications

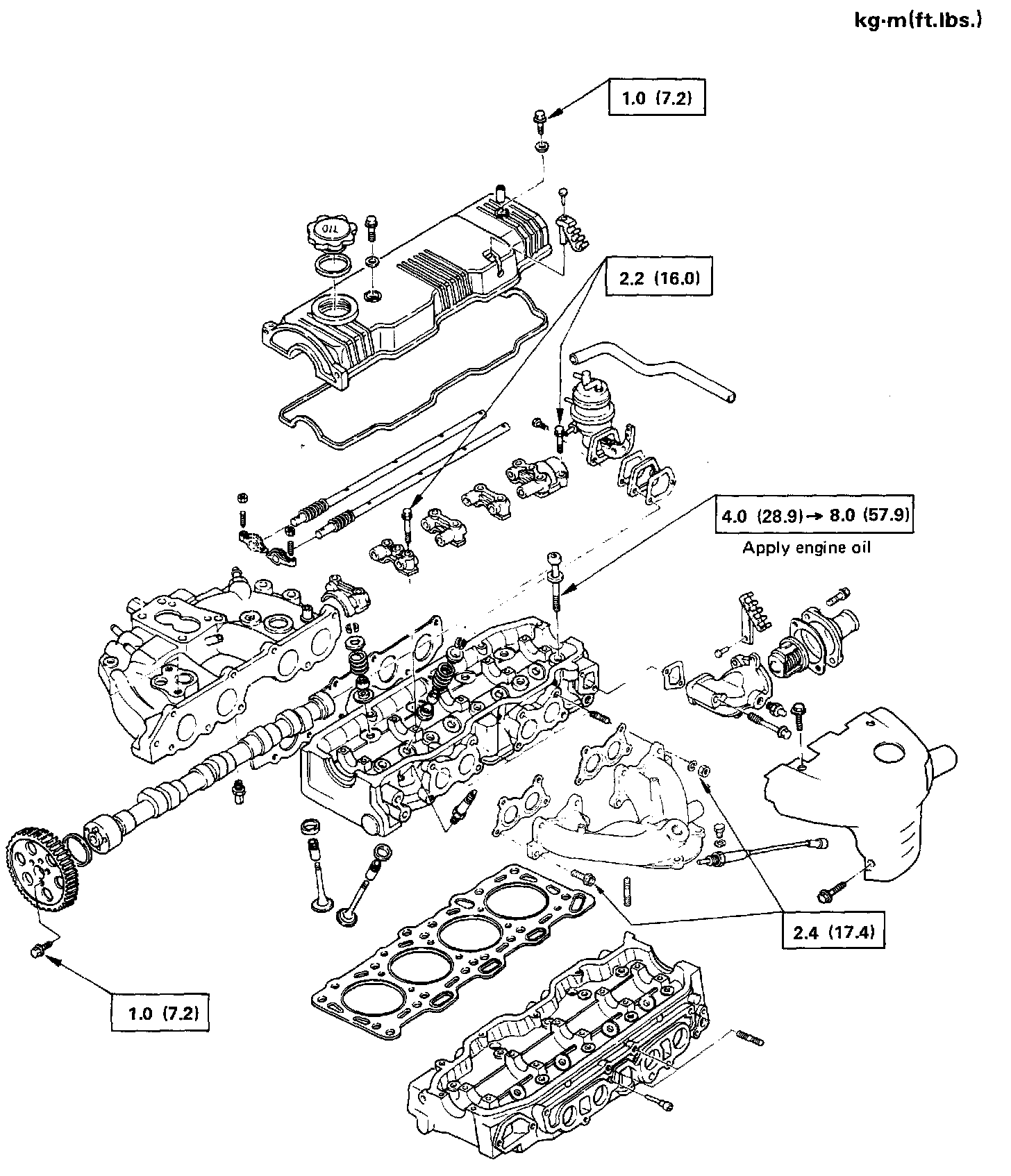

Torque Specifications:




Rocker Arm Shaft Removal Sequence:




Cylinder Head Bolt Removal Sequence:




Cylinder Head Bolt Torque Sequence:
