Diagnostic Circuit Check

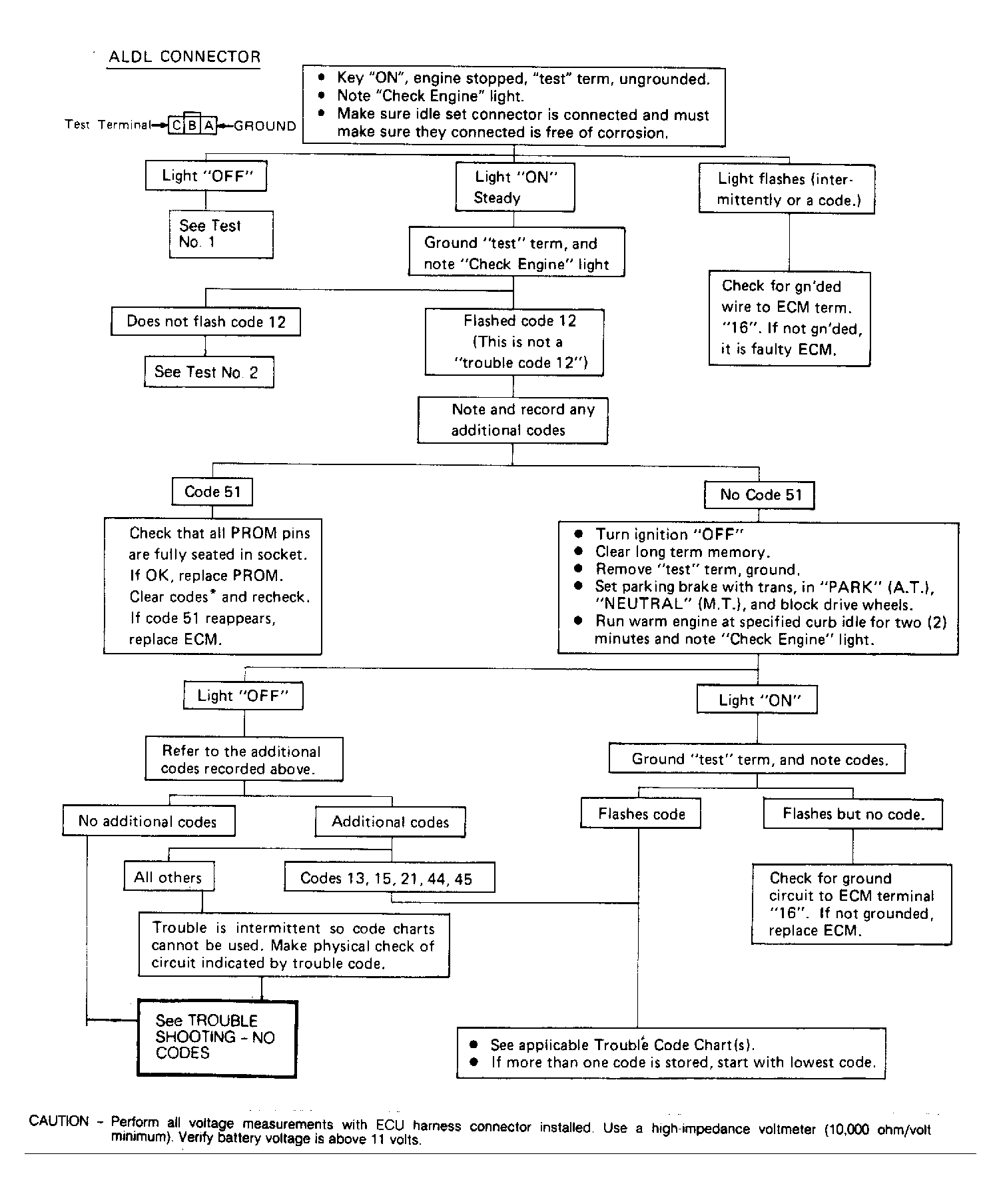

Fig 1: Diagnostic Circuit Check Flow Chart
G122146Courtesy of ISUZU MOTOR CO.
Fig 2: ECU Terminal Identification
G122147Courtesy of ISUZU MOTOR CO.
