Code 21 TPS/Idle Switch Signal

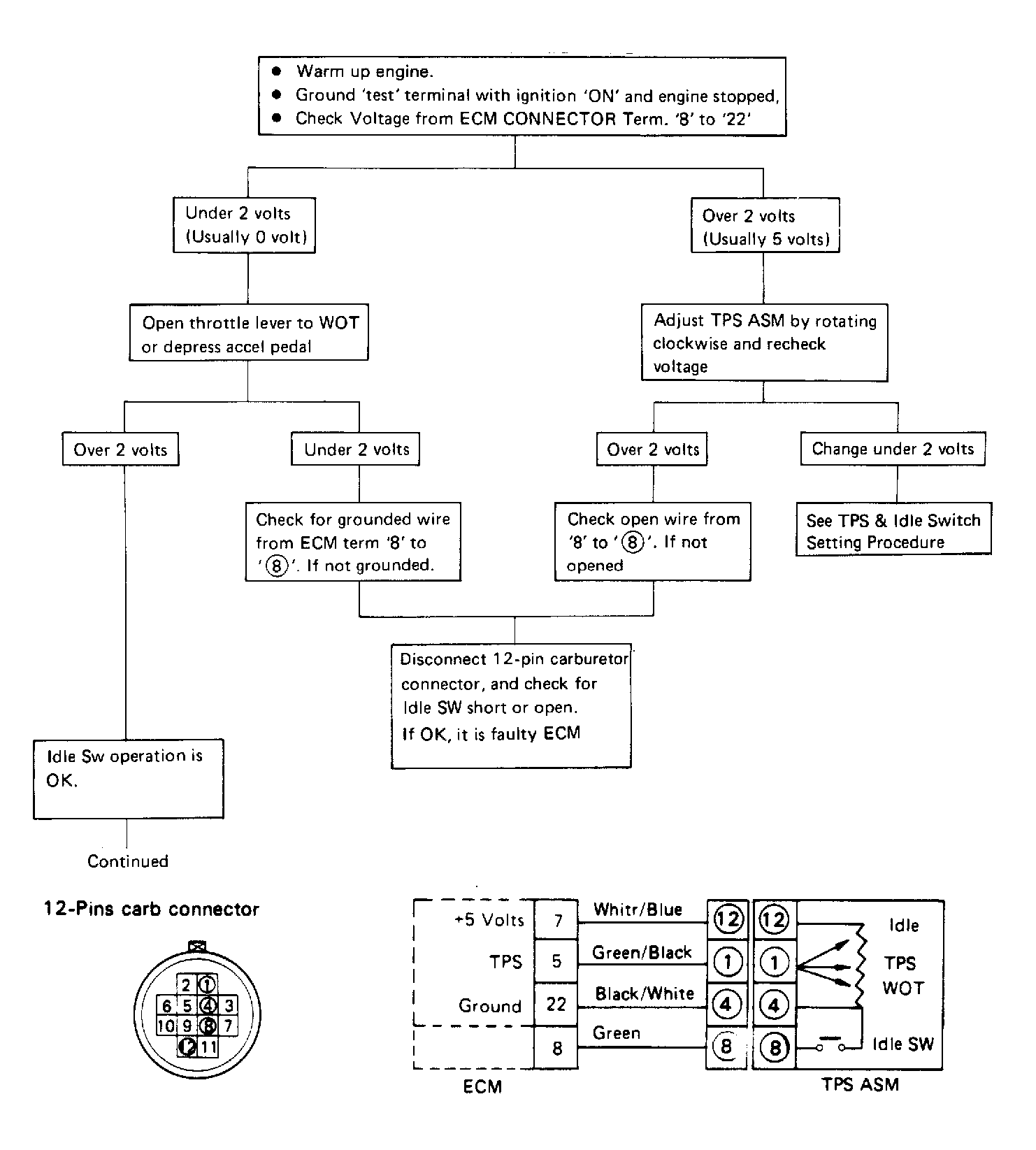

Fig 1: Flow Chart (1 of 2) - Code 21, TPS/Idle Switch Signal
G122156Courtesy of ISUZU MOTOR CO.

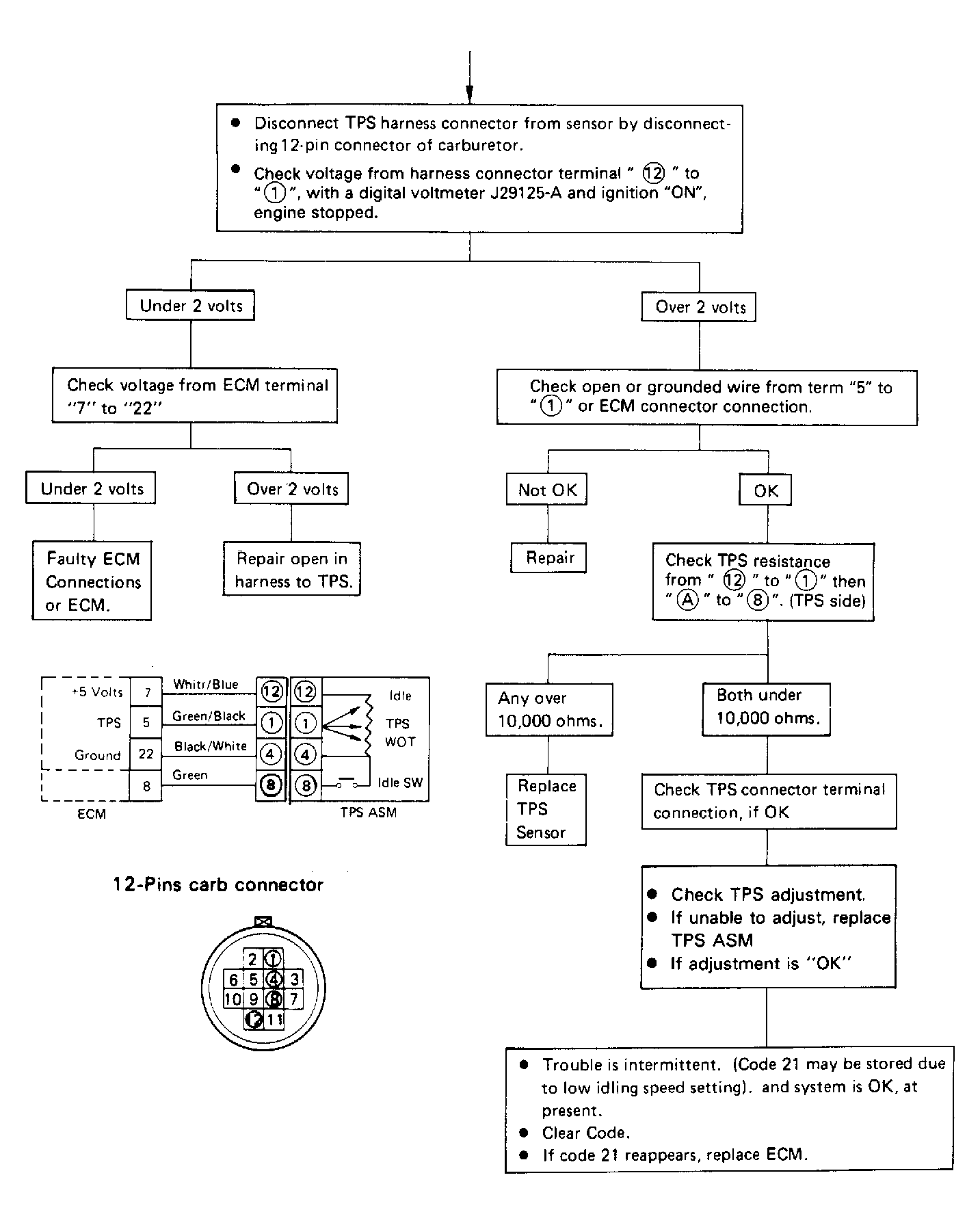

Fig 2: Flow Chart (2 of 2) - Code 21, TPS/Idle Switch Signal (Cont.)
G122157Courtesy of ISUZU MOTOR CO.
