Driver's Door Power Window Switch

It opens or closes the window on driver and passenger sides. The power window switch and the lock switch are provided on the switch panel on the driver side only. Also, only the window on the driver side can fully be opened by one-touch operation. Check voltage and continuity between the driver's switch harness side connector terminals. See Fig 1 and Fig 2 .

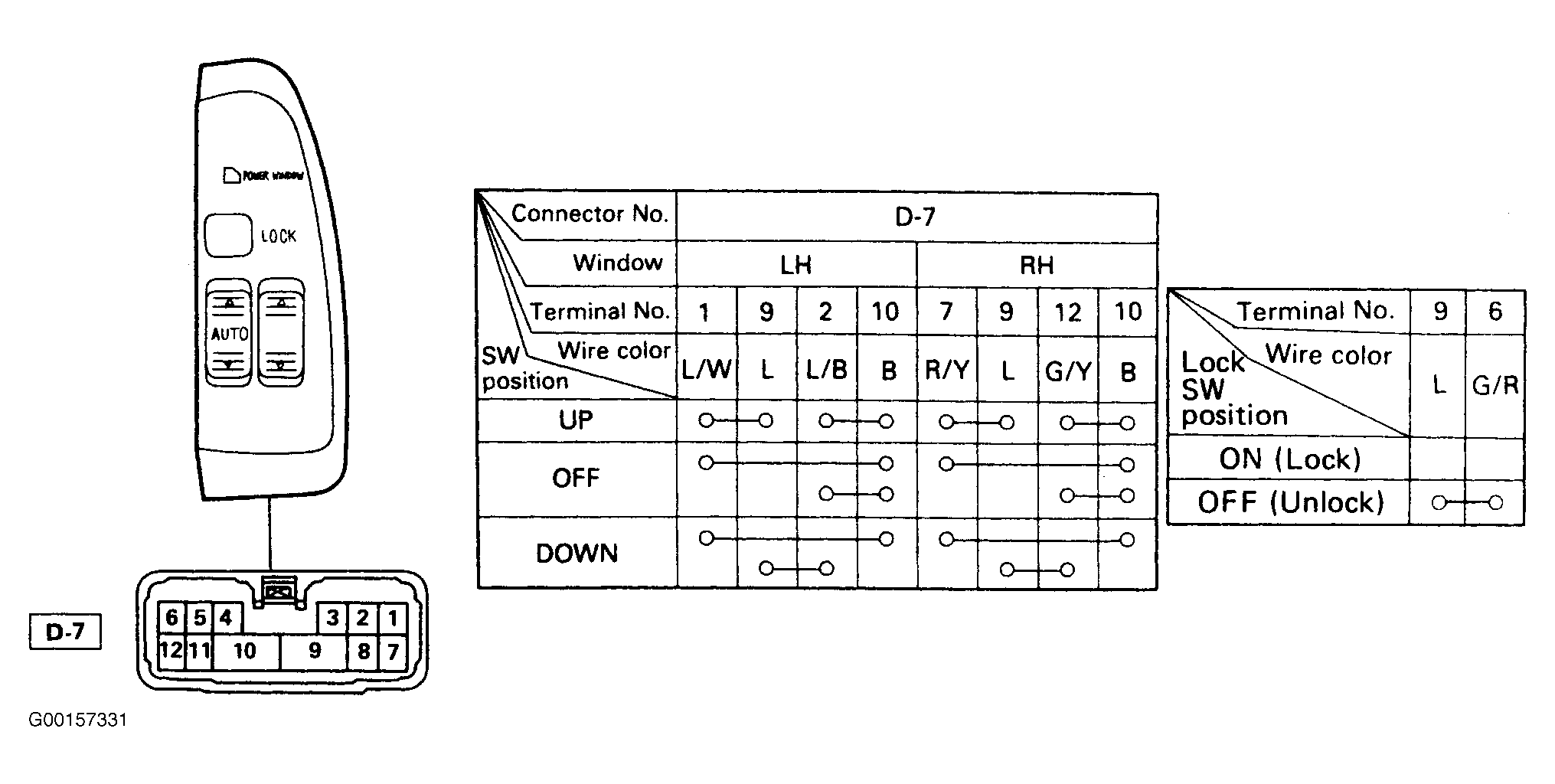

Fig 1: Testing Driver's Power Window Switch Circuits

Courtesy of ISUZU MOTOR CO.

Fig 2: Testing Driver's Power Window Switch Continuity

Courtesy of ISUZU MOTOR CO.
