Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Diode Box | In engine compartment fuse/relay block. |

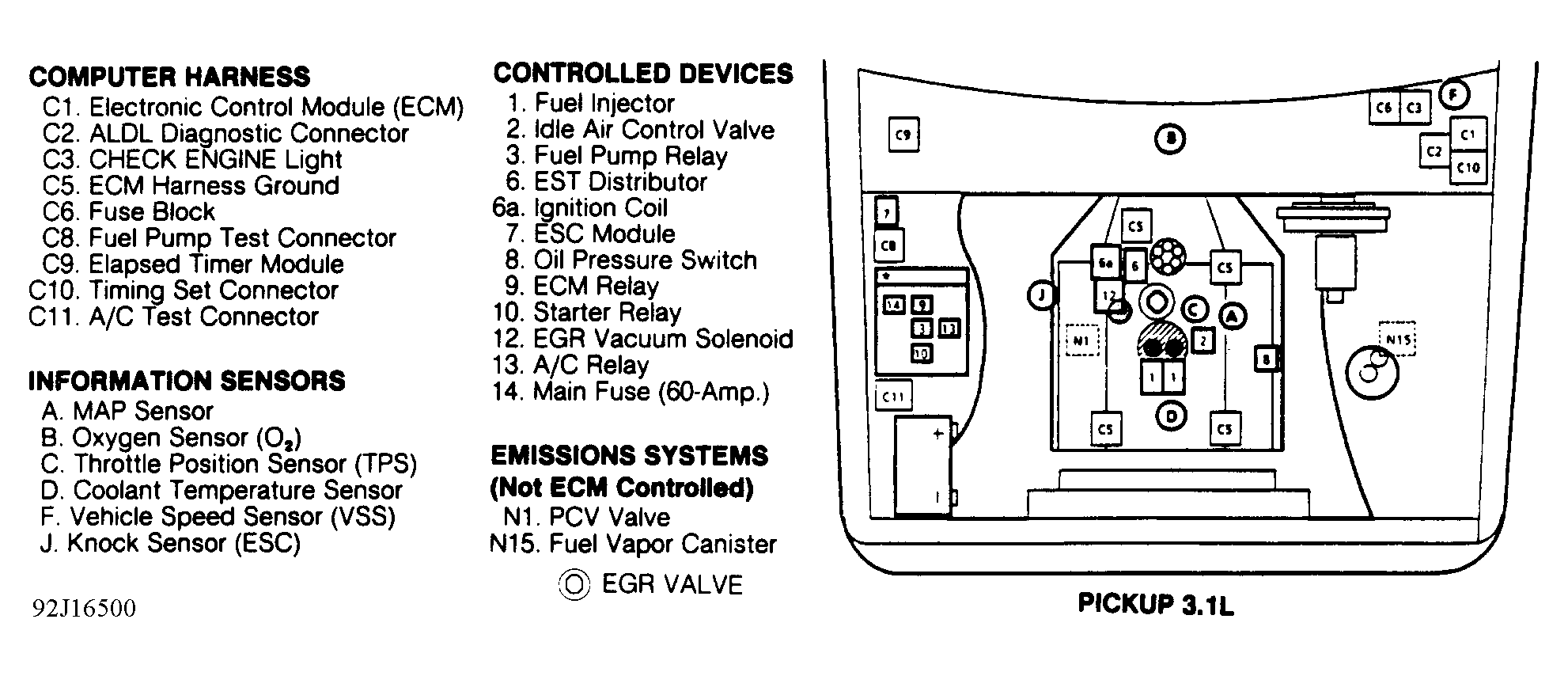

| Fuse Block | Under left side of dash. See Figure . |
| Fuse/Relay Block | On right side of engine compartment, on inner fender panel. |
