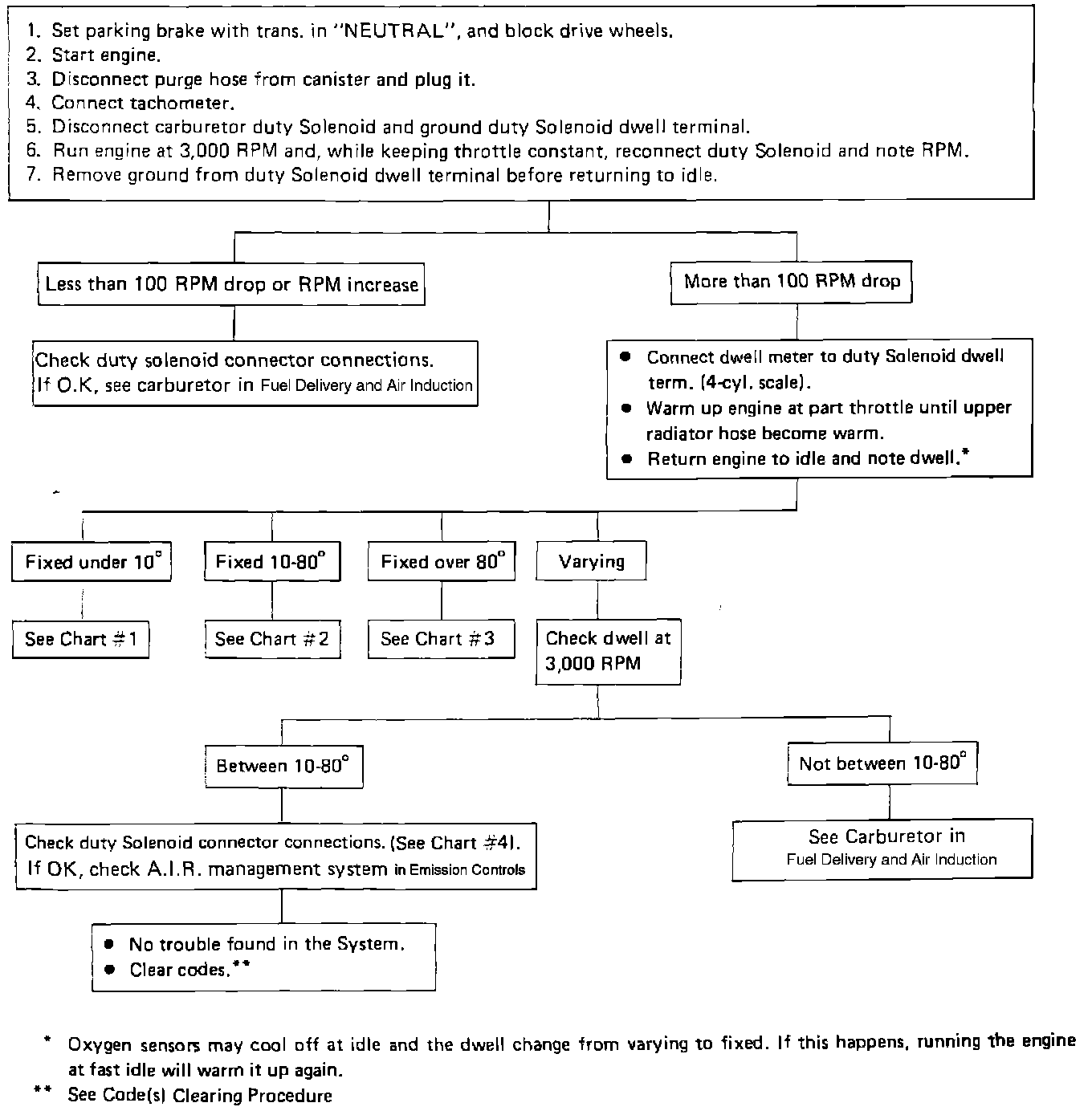

System Performance Check

System Performance Check:

The System Performance Check is used to check the operation of the duty solenoid and the main metering circuit using a tachometer.
It also checks the operation of the closed loop feedback operation by the use of a dwell meter.
