Throttle Full Close Switch: Testing and Inspection

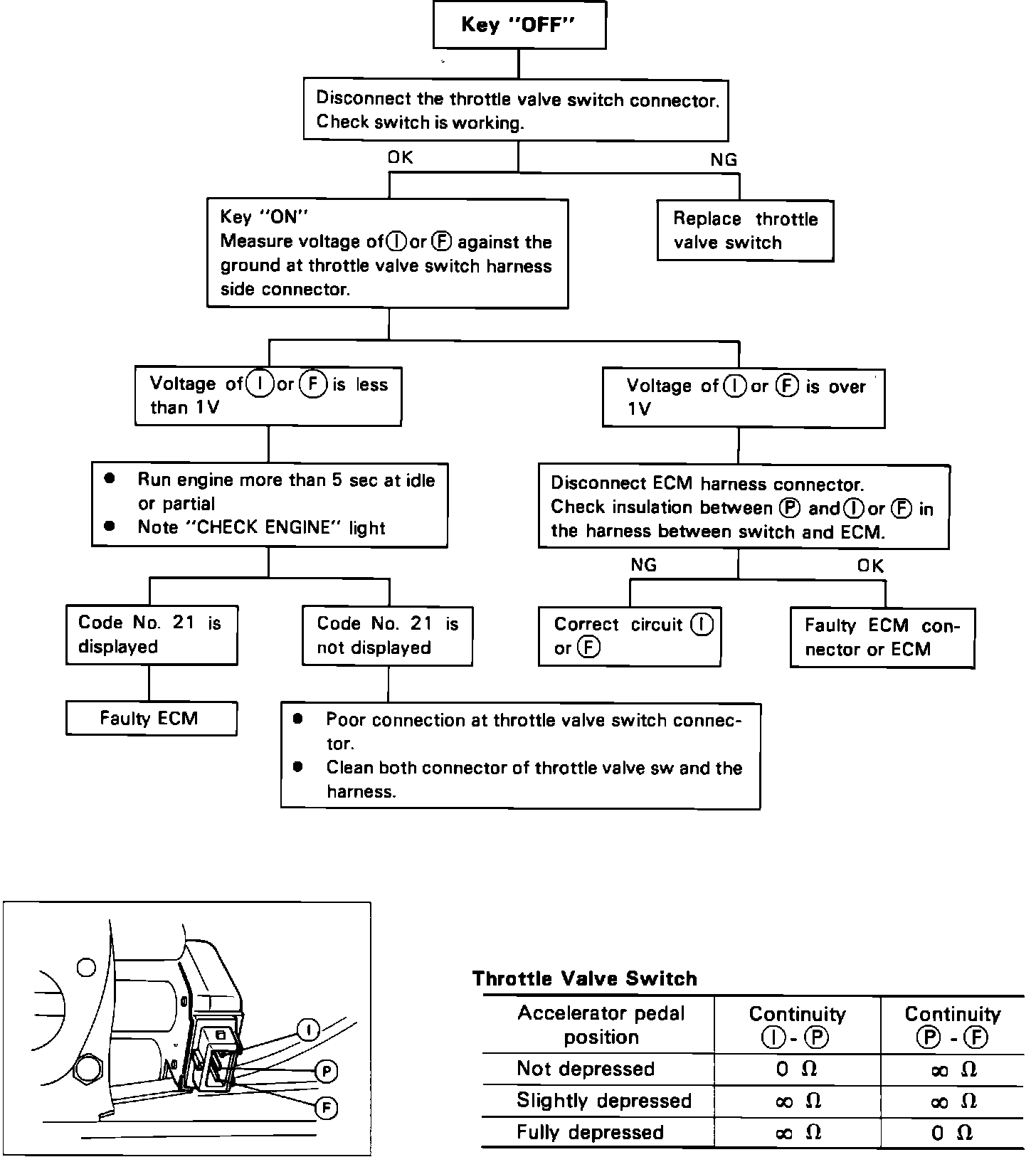

DIAGNOSTIC CHART

Code 21 Diagnostic Chart:






THROTTLE VALVE SWITCH INSPECTION PROCEDURE

Throttle Valve Switch Inspection Procedure:
