Code 34 - EGR Gas Temperature Sensor

EGR GAS TEMP SENSOR RESISTANCE

Fig 1: Code No. 34 Schematic, EGR Gas Temp. Sensor

Courtesy of ISUZU MOTOR CO.

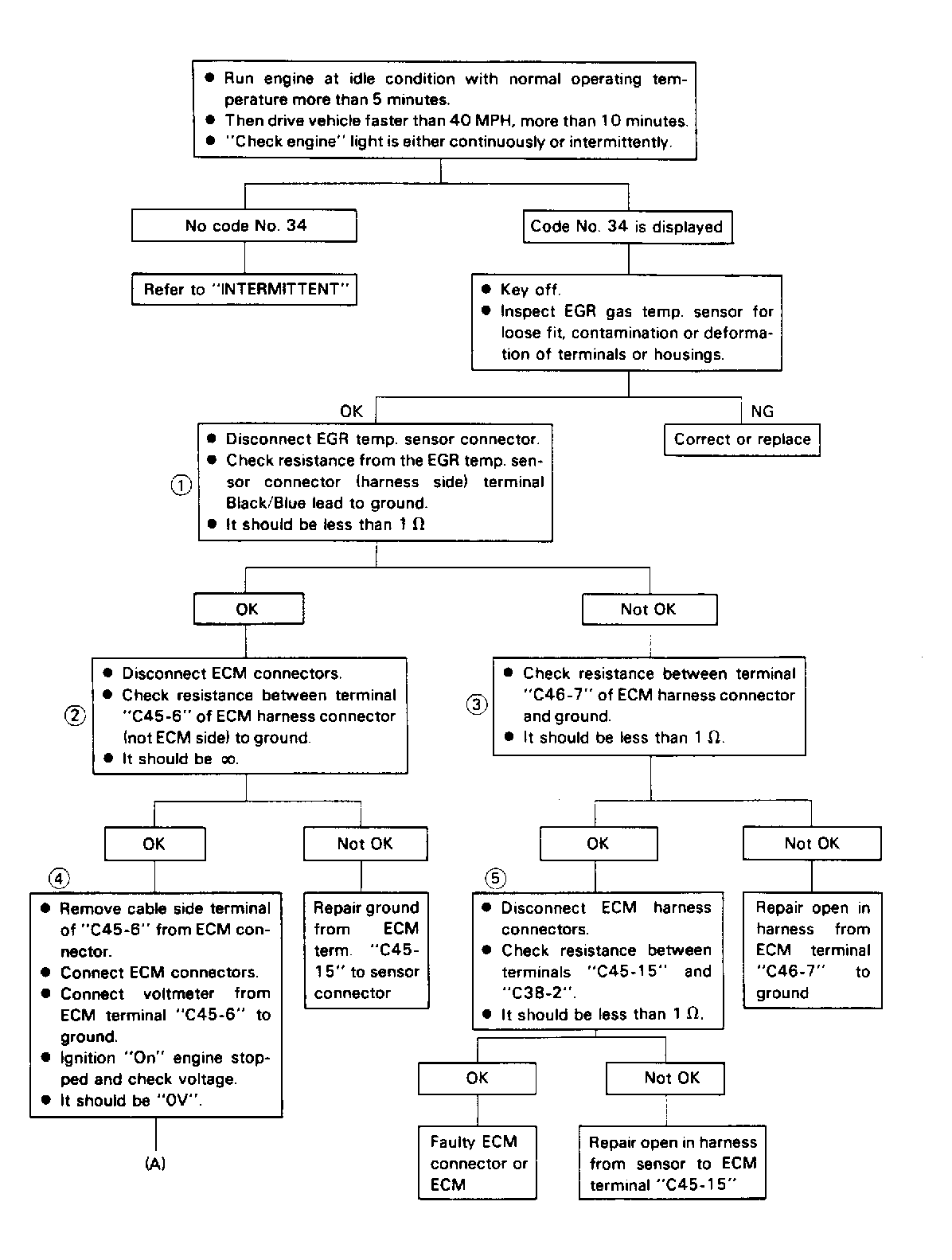

Fig 2: Code No. 34 Flow Chart, EGR Gas Temp. Sensor (1 of 2)

Courtesy of ISUZU MOTOR CO.

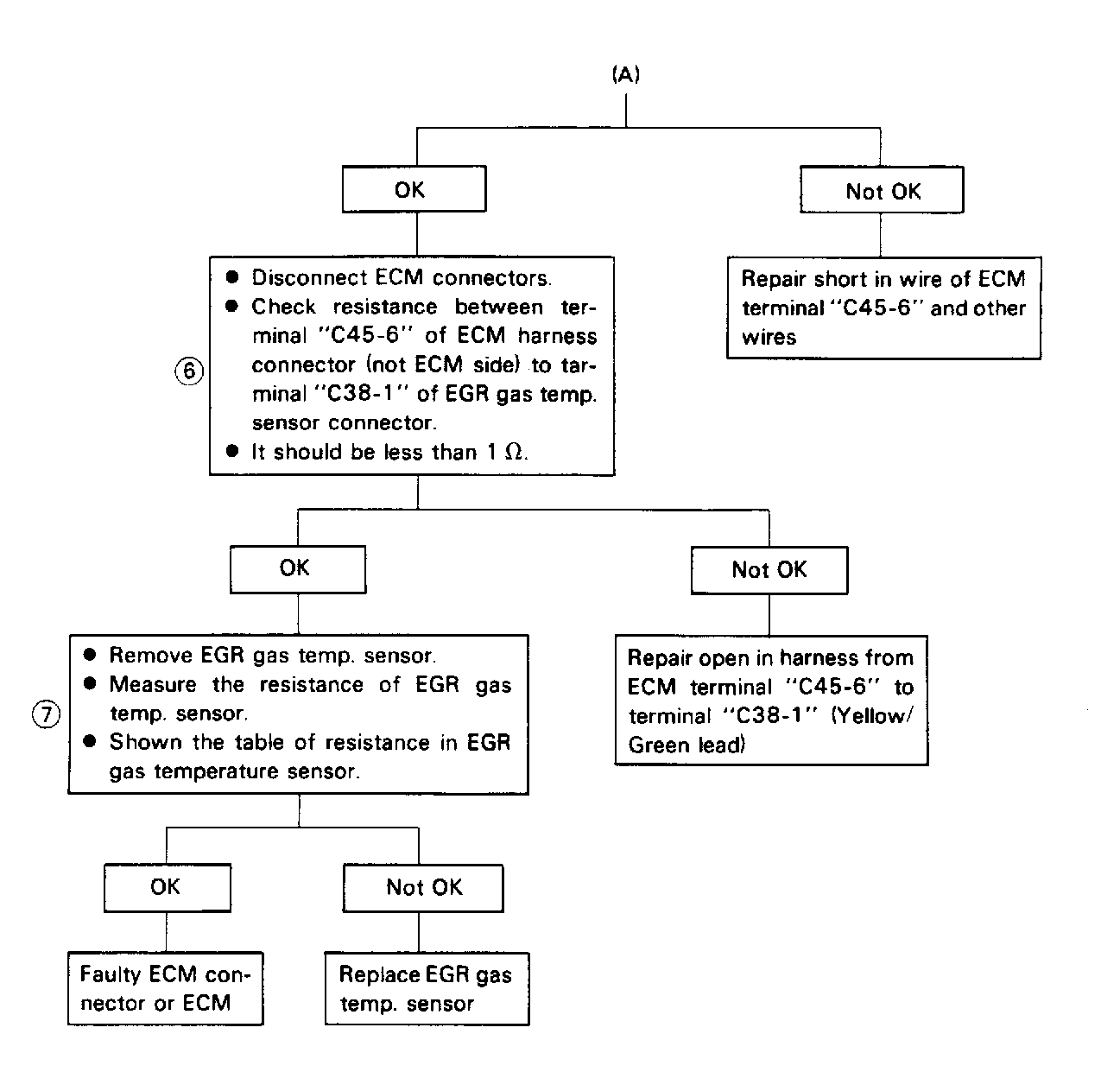

Fig 3: Code No. 34 Flow Chart, EGR Gas Temp. Sensor (2 of 2)

Courtesy of ISUZU MOTOR CO.
