Engine Controls - Tests W/Codes - 2.3L CARBURETED
>>
Code Charts
>>
Code 52 - Faulty ECM Ram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Code 52 - Faulty ECM Ram

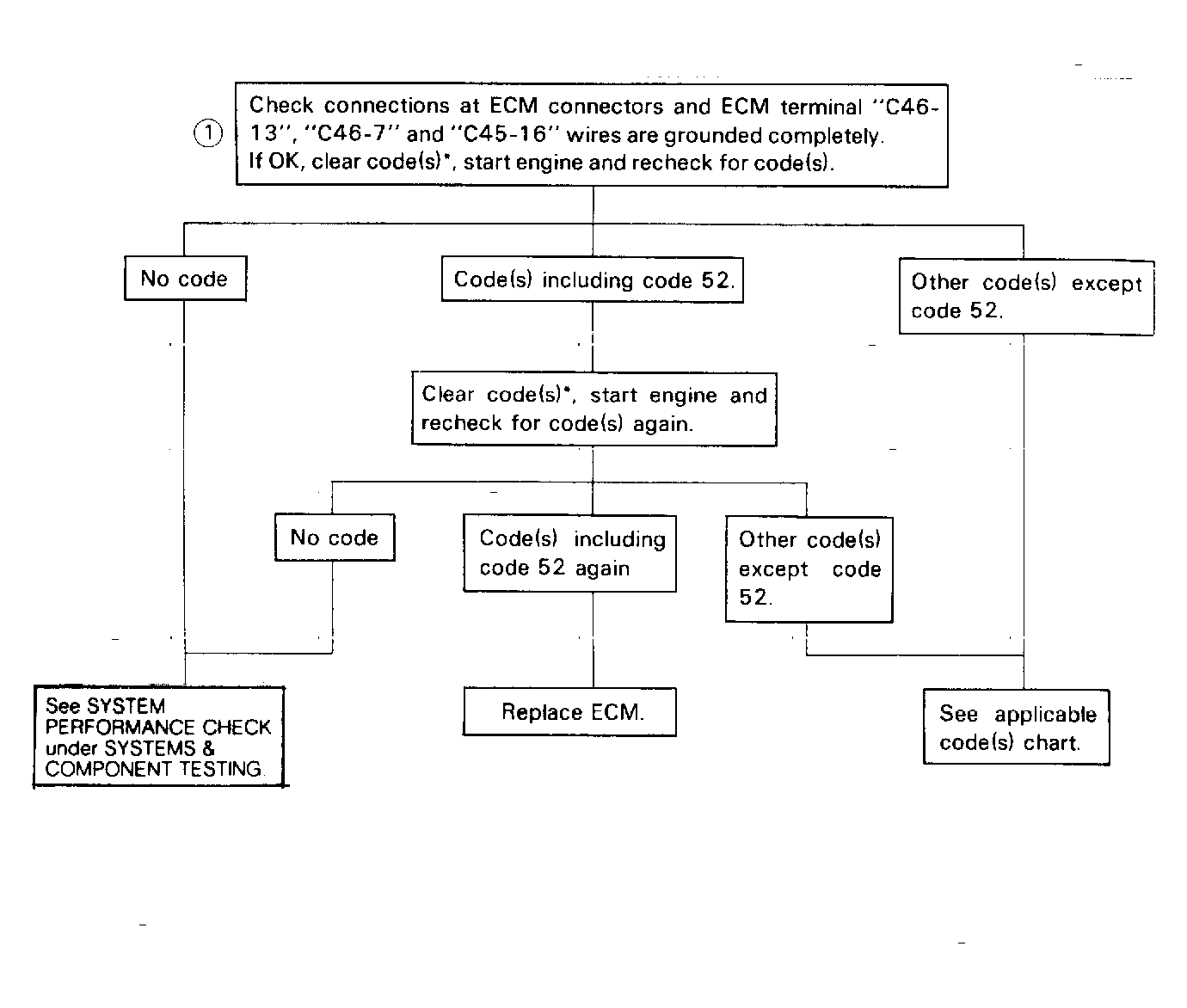

Fig 1: Code No. 52 Flow Chart, Faulty ECM Ram
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
