Service Point Locations

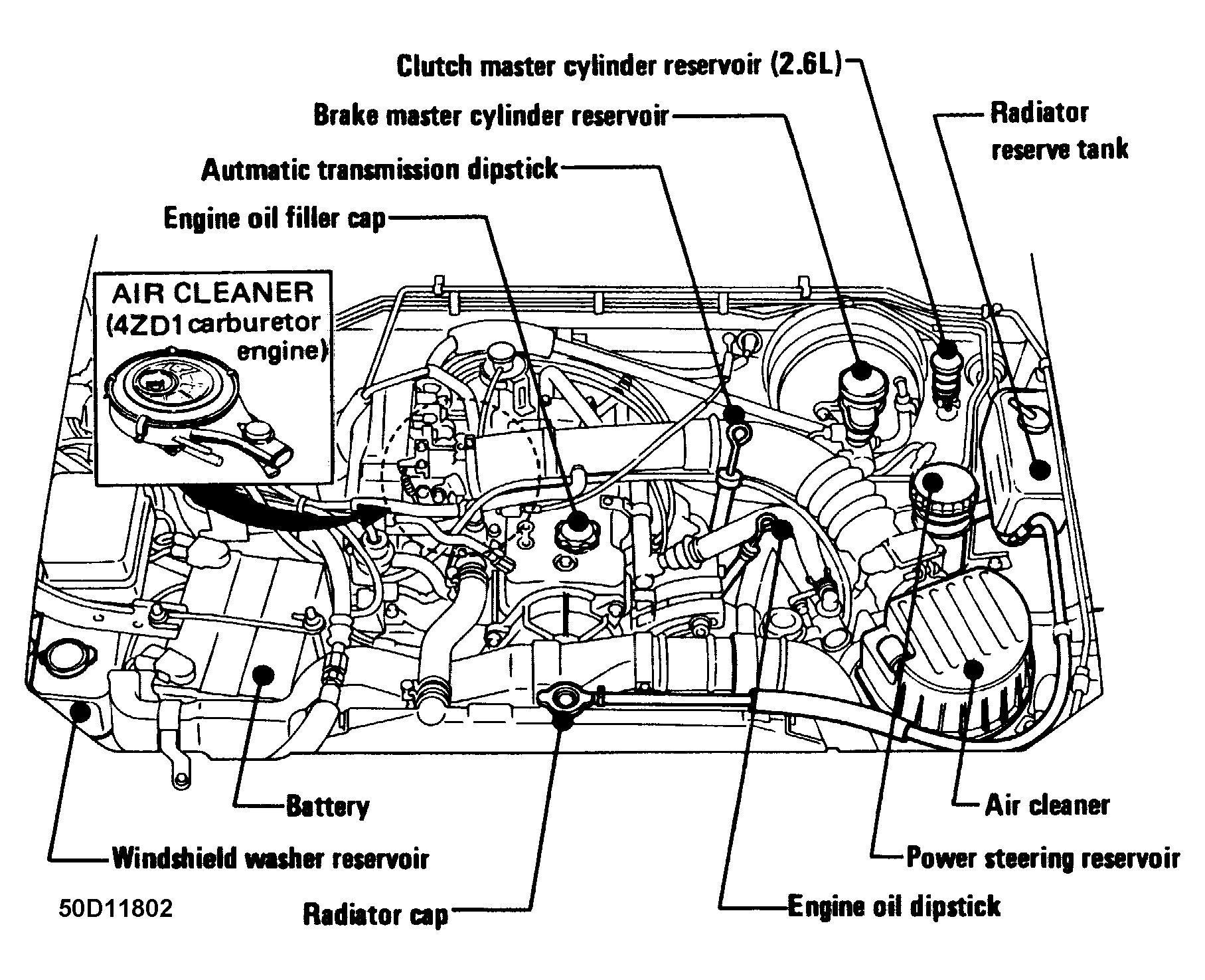

Fig 1: Engine Service Point Locations (Typical 4-Cyl. - Gas)
Courtesy of ISUZU MOTOR CO.

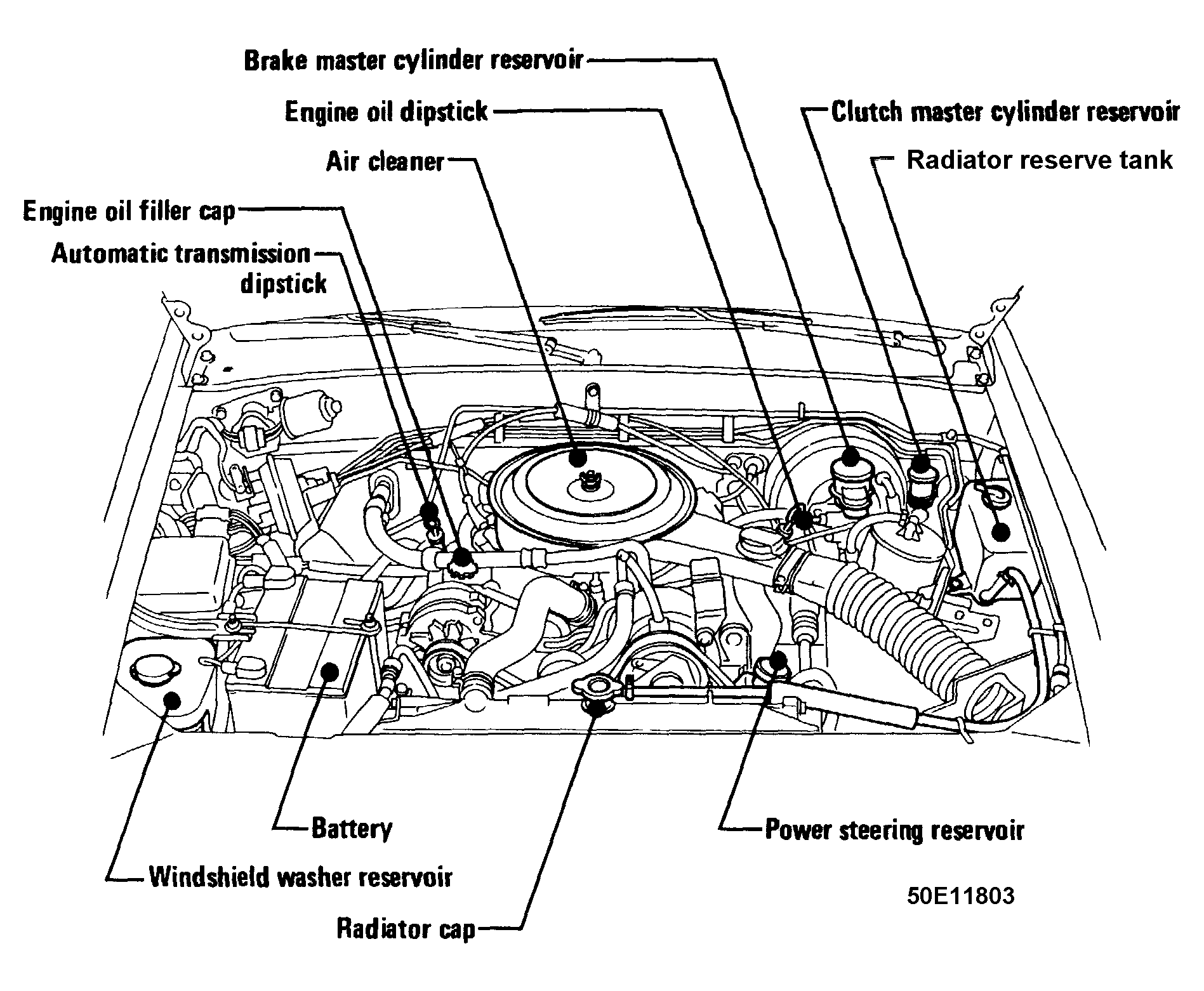

Fig 2: Engine Service Point Locations (3.1L V6)
Courtesy of ISUZU MOTOR CO.

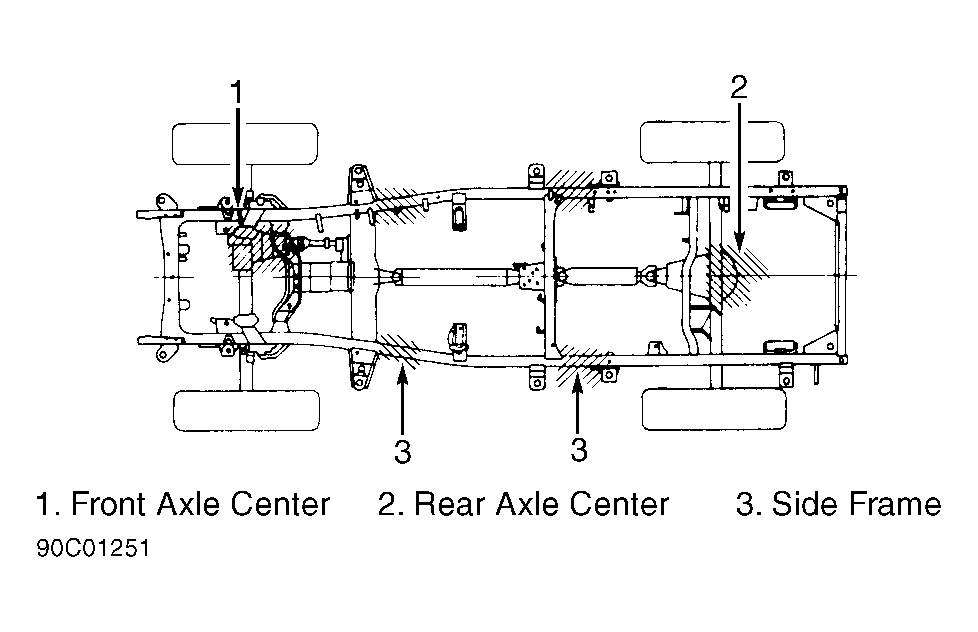

Fig 3: Lift Points
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
