Connector Identification

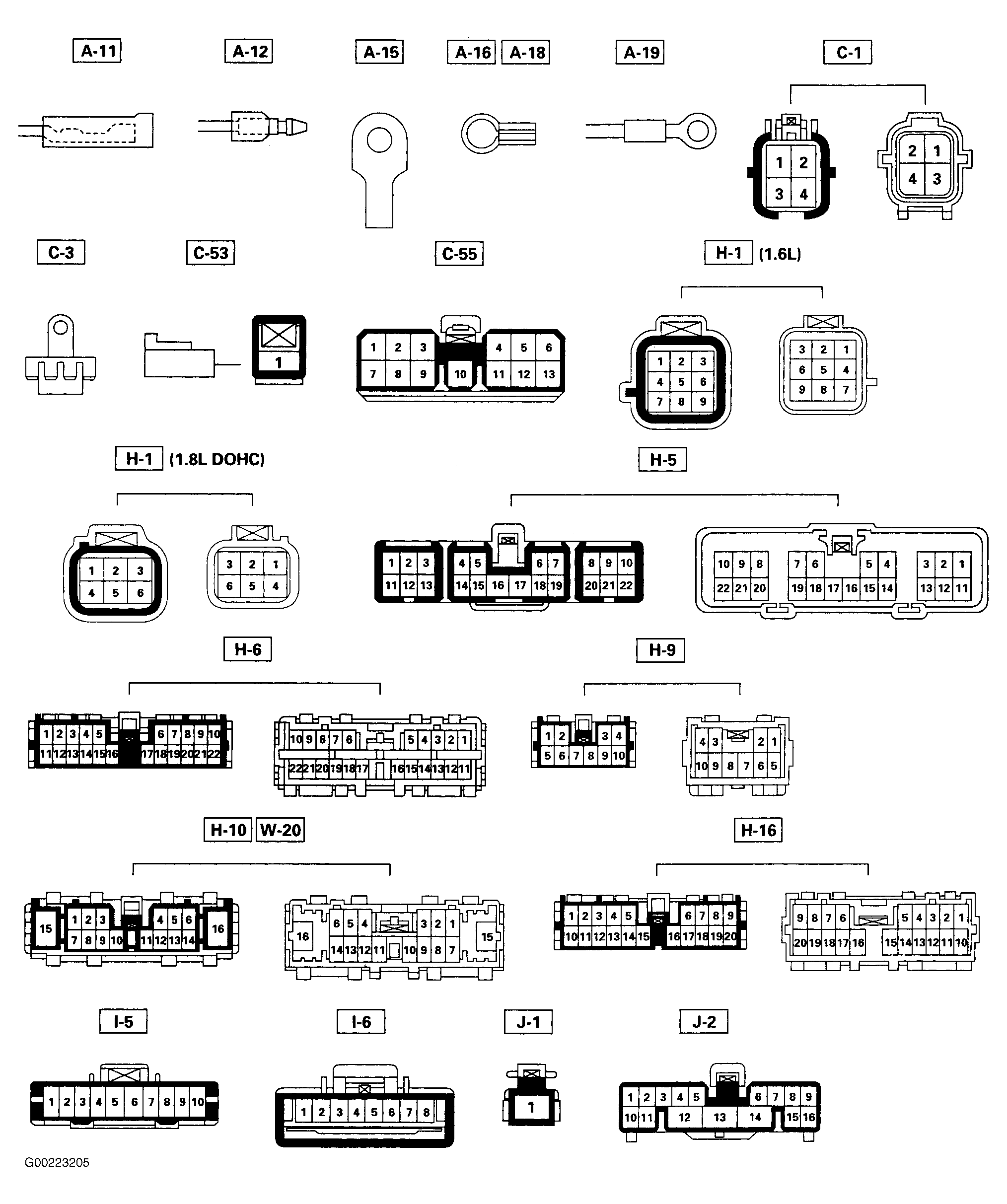

Fig 1: Cruise Control Connector Identification (1 Of 2)
G00223205Courtesy of ISUZU MOTOR CO.

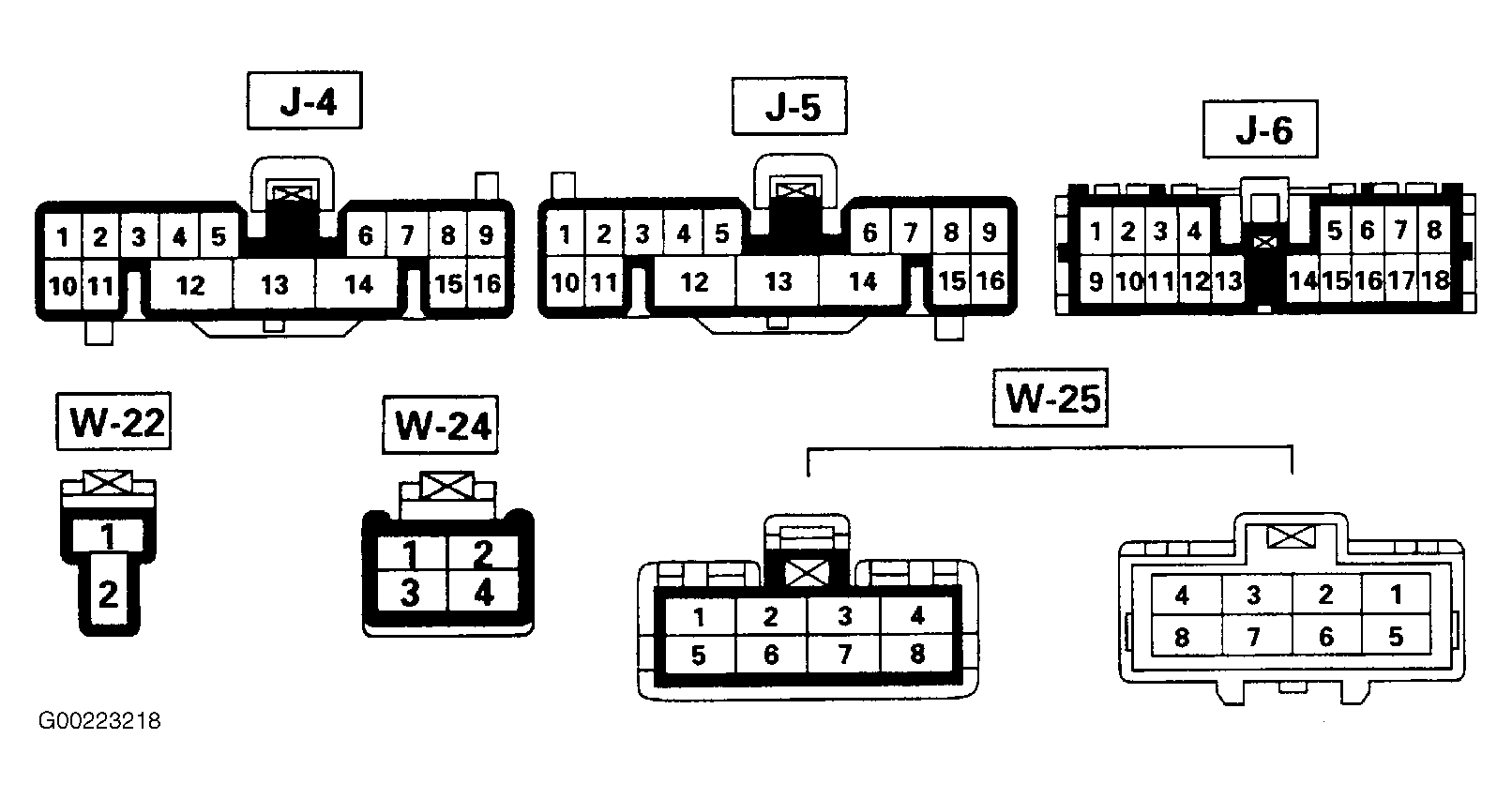

Fig 2: Cruise Control Connector Identification (2 Of 2)
G00223218Courtesy of ISUZU MOTOR CO.
