System Performance Check

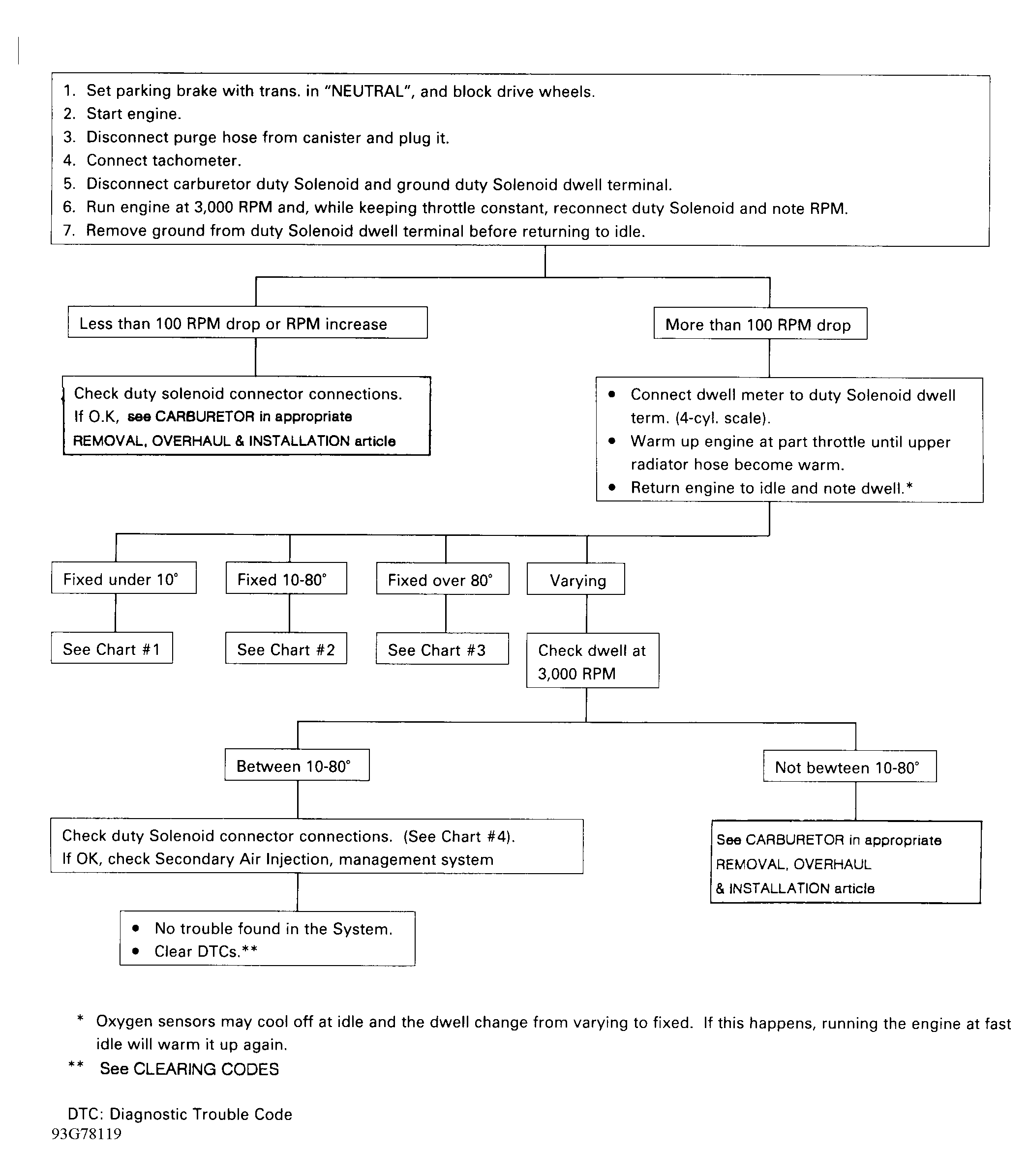

Fig 1: System Performance Check
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
