Code 4 - Closed Anti-Lock Valve Switch

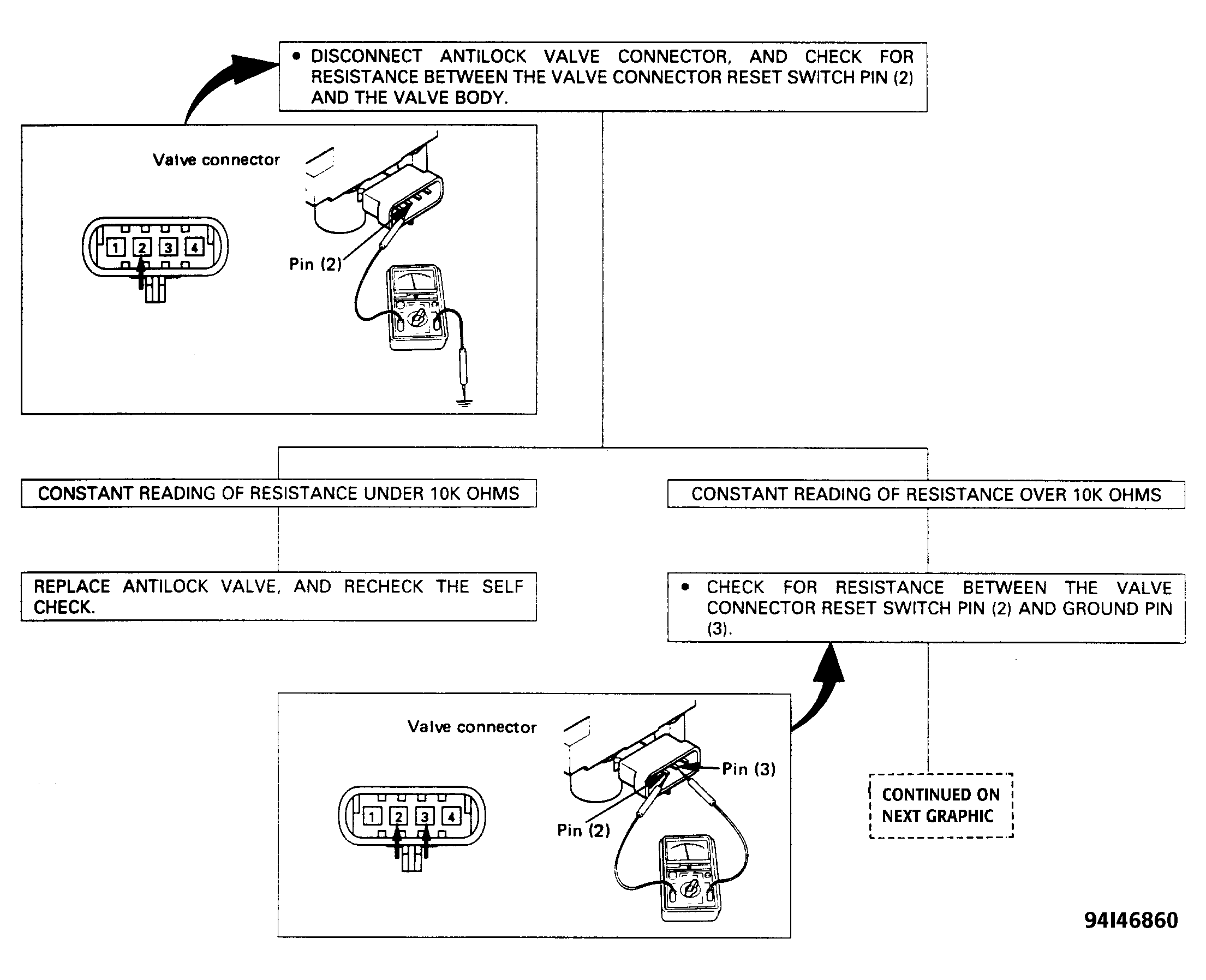

Fig 1: Code 4 - Closed Anti-Lock Valve Switch (1 Of 3)

Courtesy of ISUZU MOTOR CO.

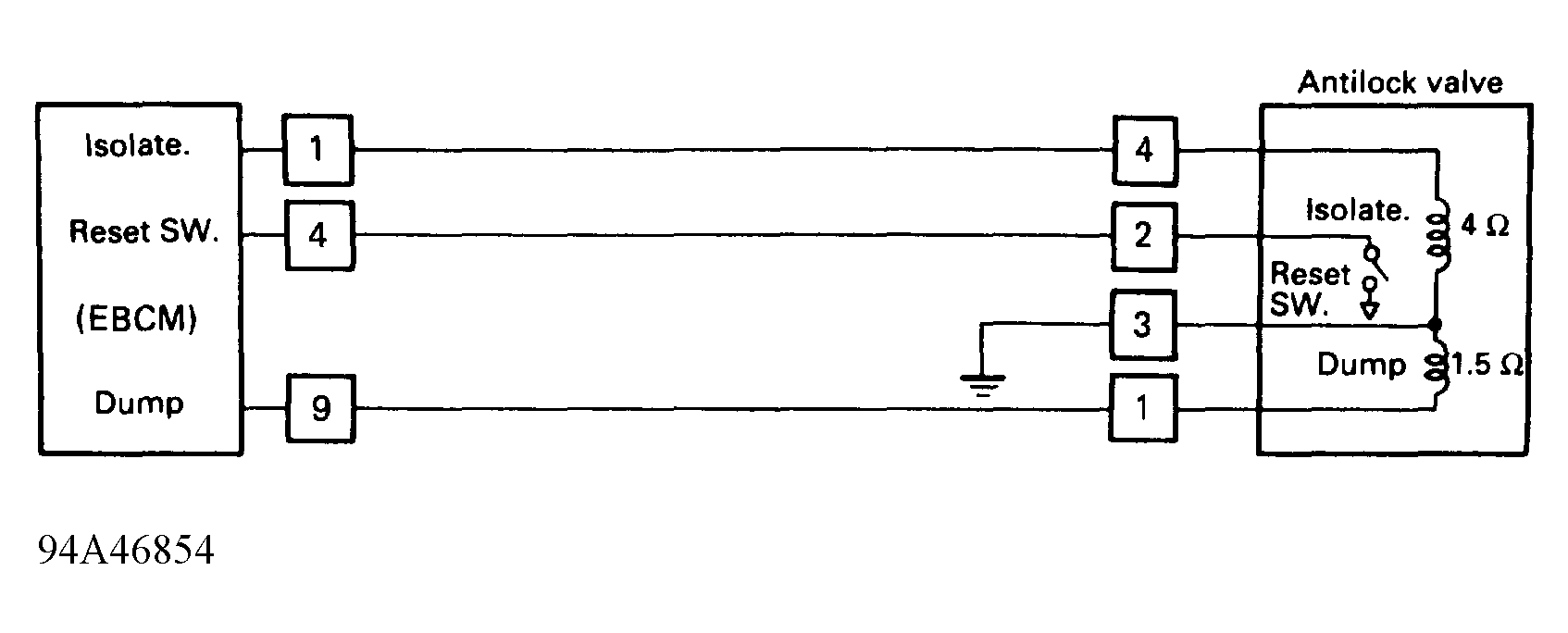

Fig 2: Code 4 - Closed Anti-Lock Valve Switch (2 Of 3)

Courtesy of ISUZU MOTOR CO.

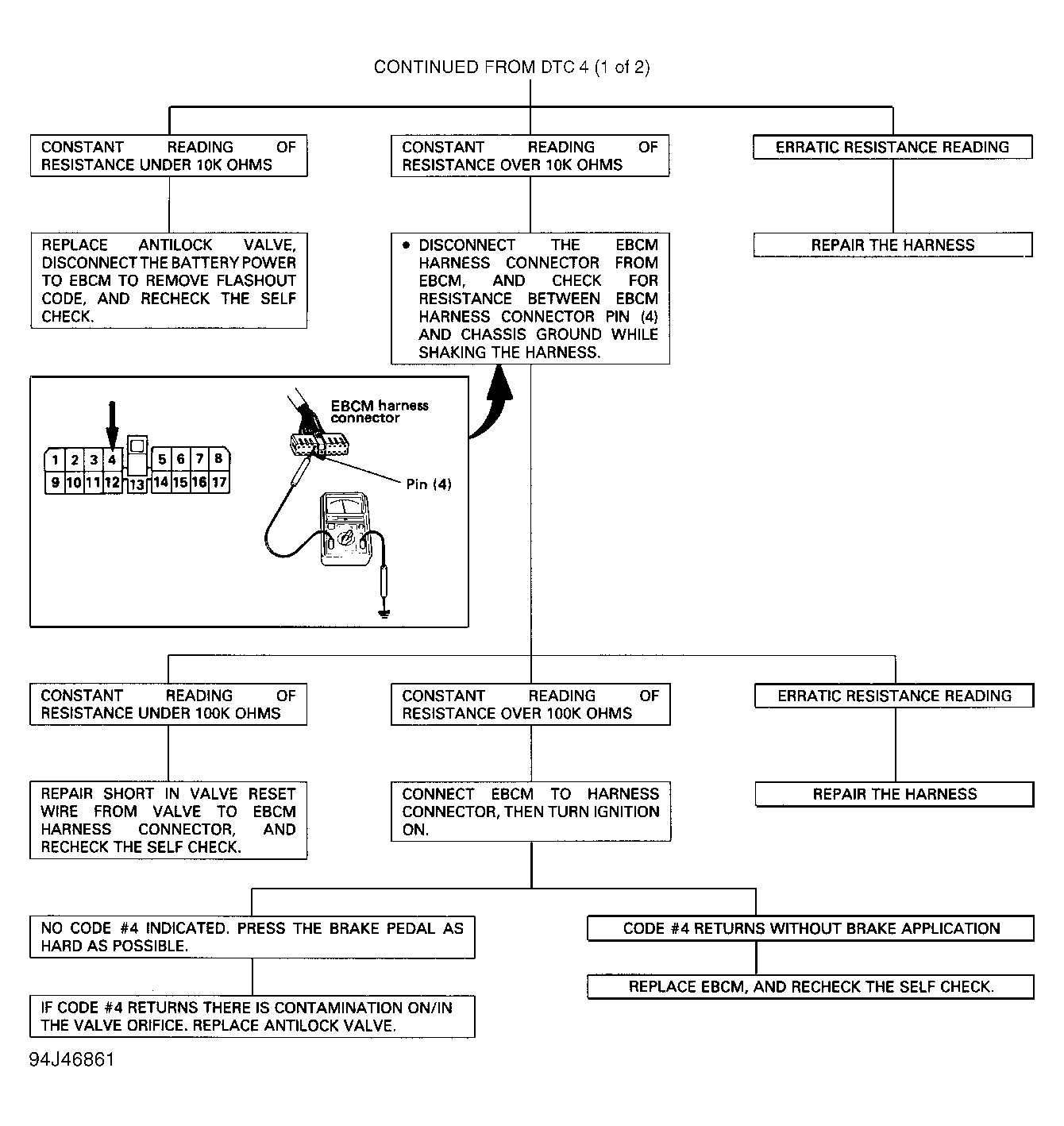

Fig 3: Code 4 - Closed Anti-Lock Valve Switch (3 Of 3)

Courtesy of ISUZU MOTOR CO.
