Engine Control Module

Powertrain Control Module Wiring Diagrams

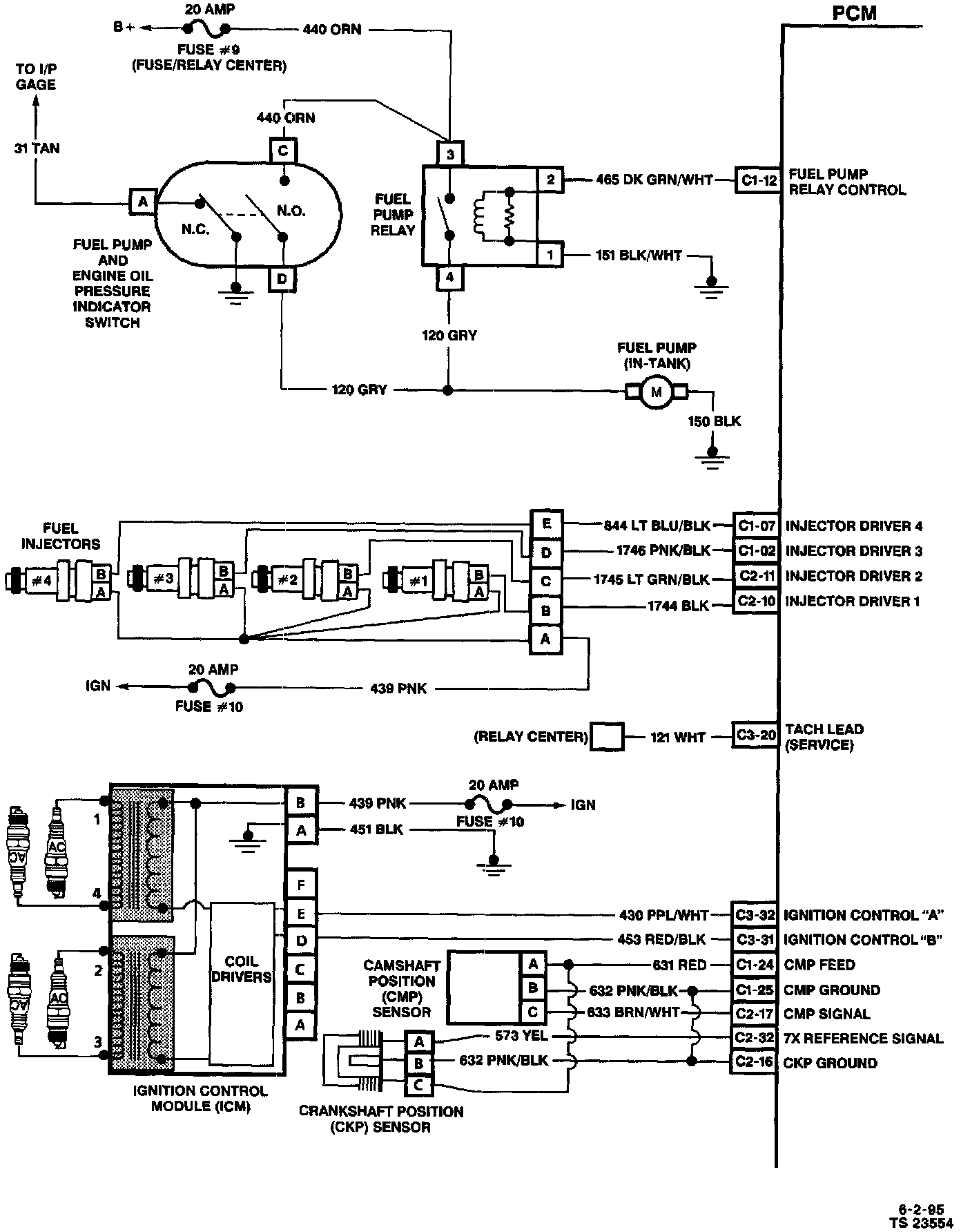

PCM Circuits (1 Of 5):




Part 1 of 5

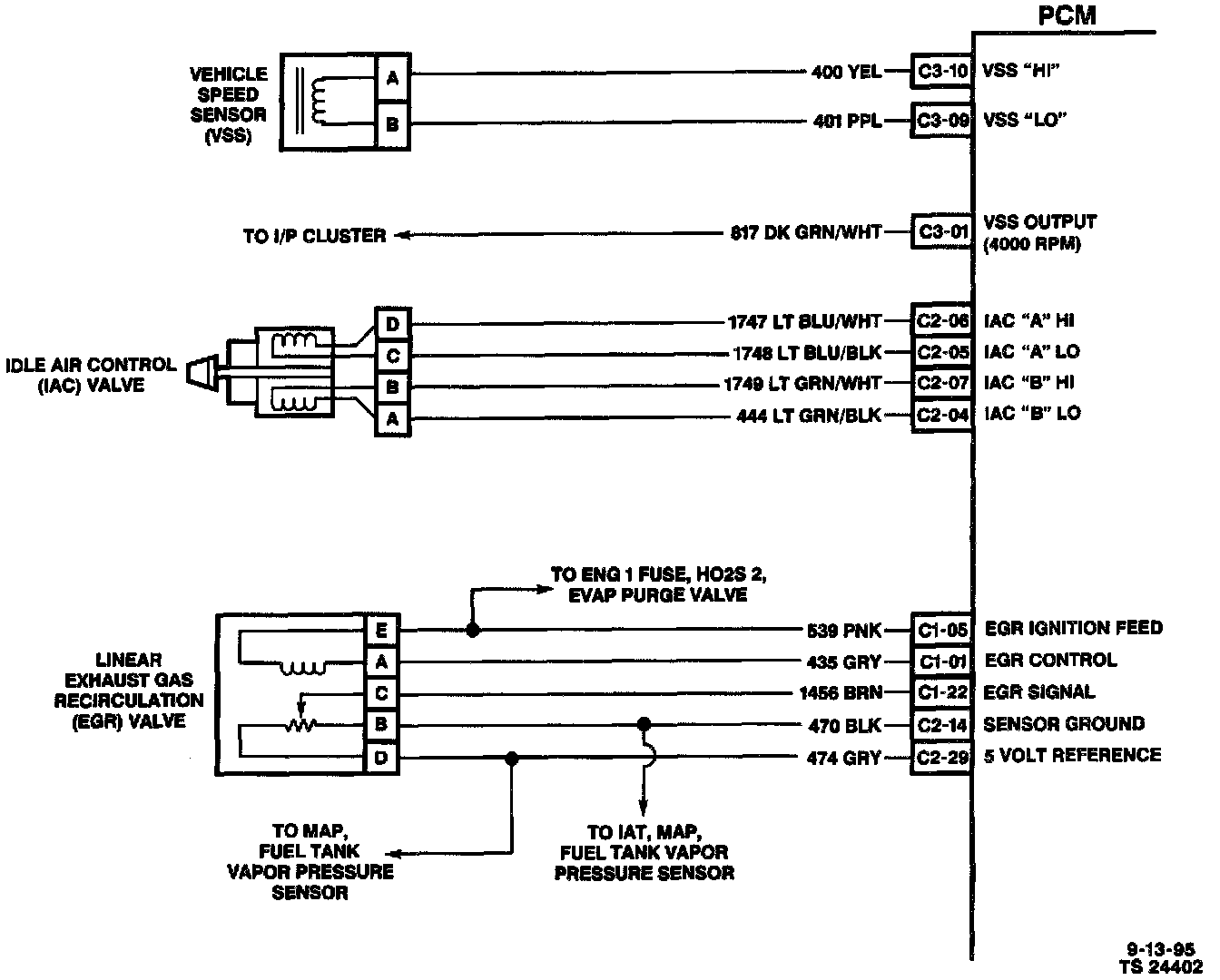

PCM Circuits (2 Of 5):




Part 2 of 5

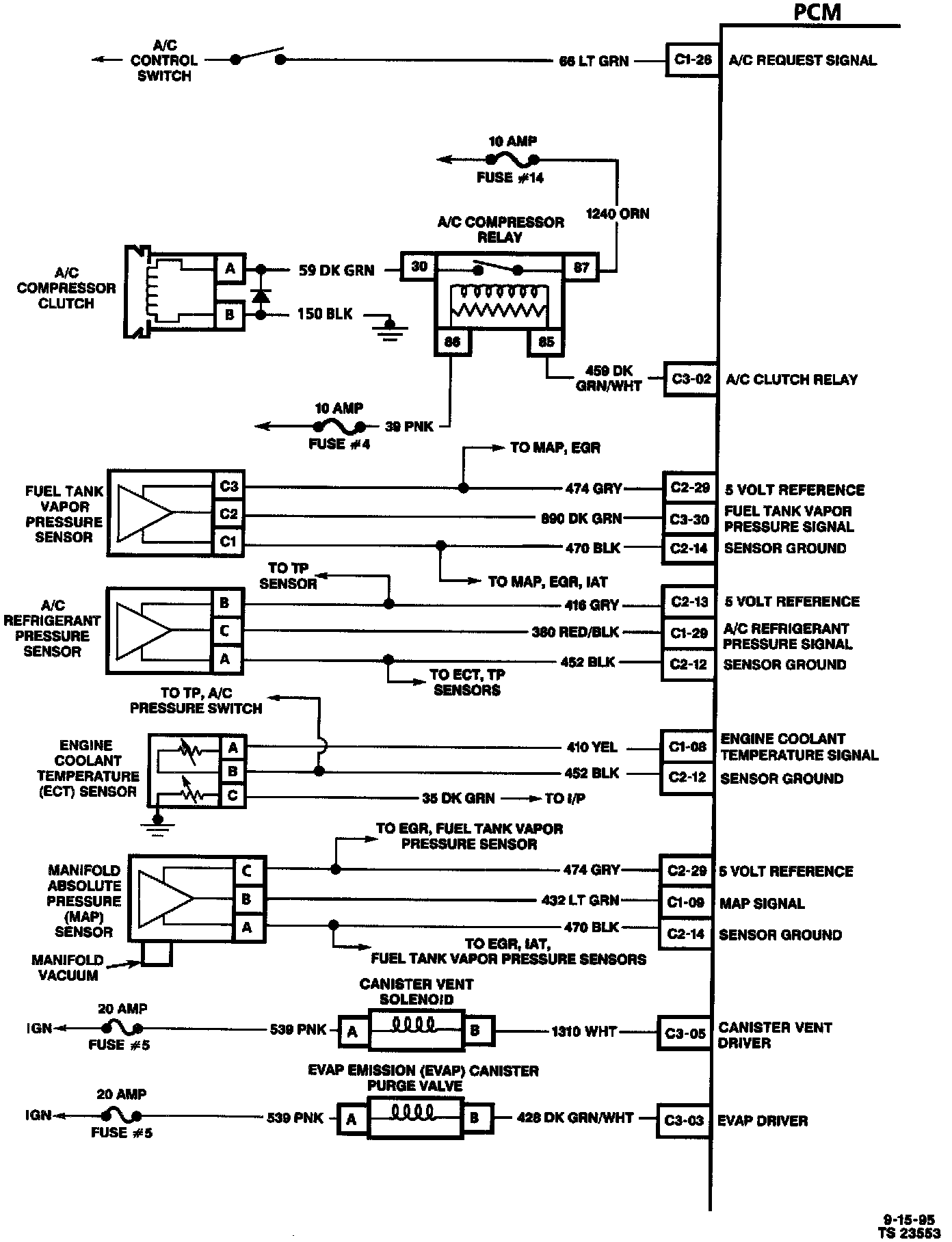

PCM Circuits (3 Of 5):




Part 3 of 5

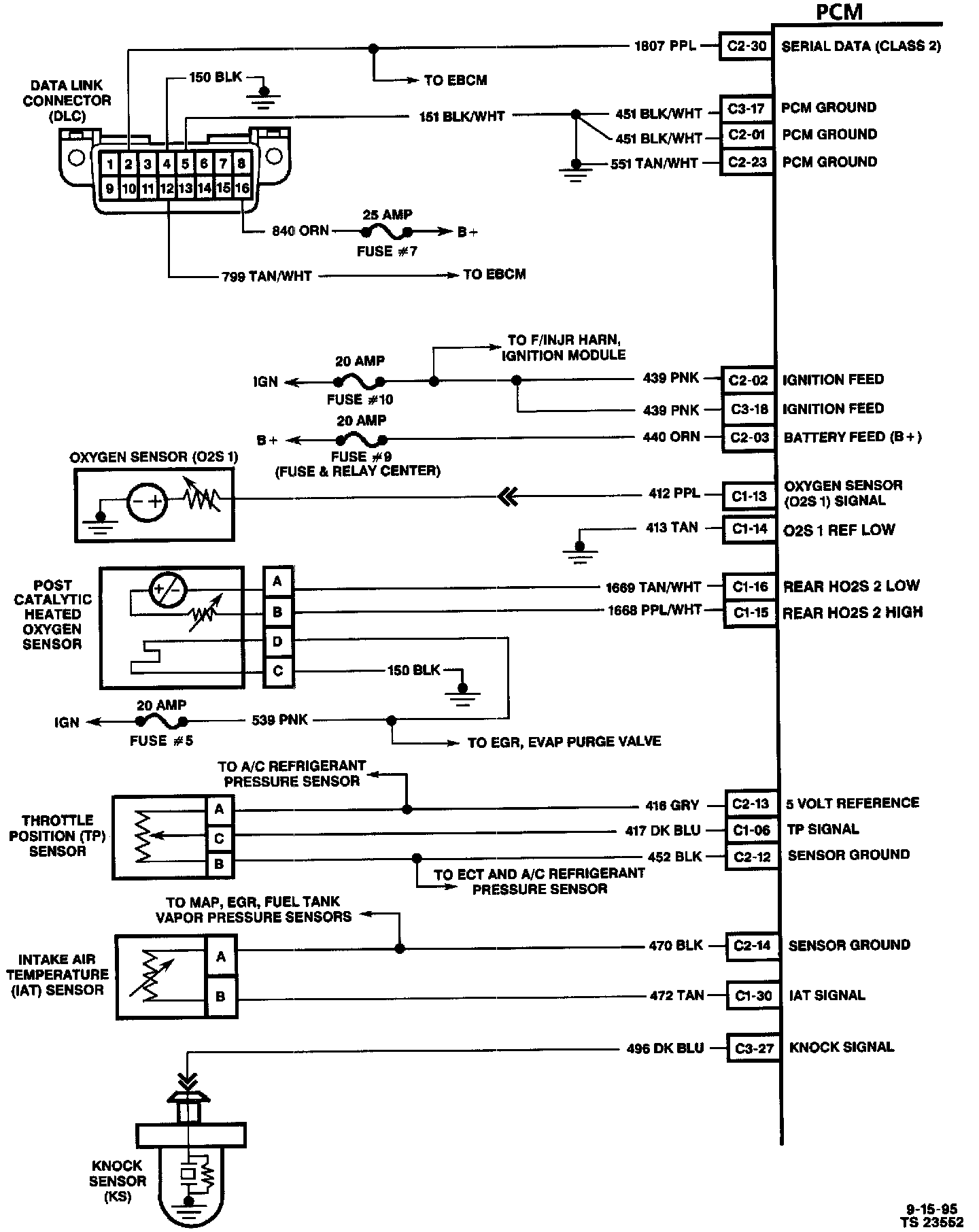

PCM Circuits (4 Of 5):




Part 4 of 5

PCM Circuits (5 Of 5):




Part 5 of 5
