Connector Views

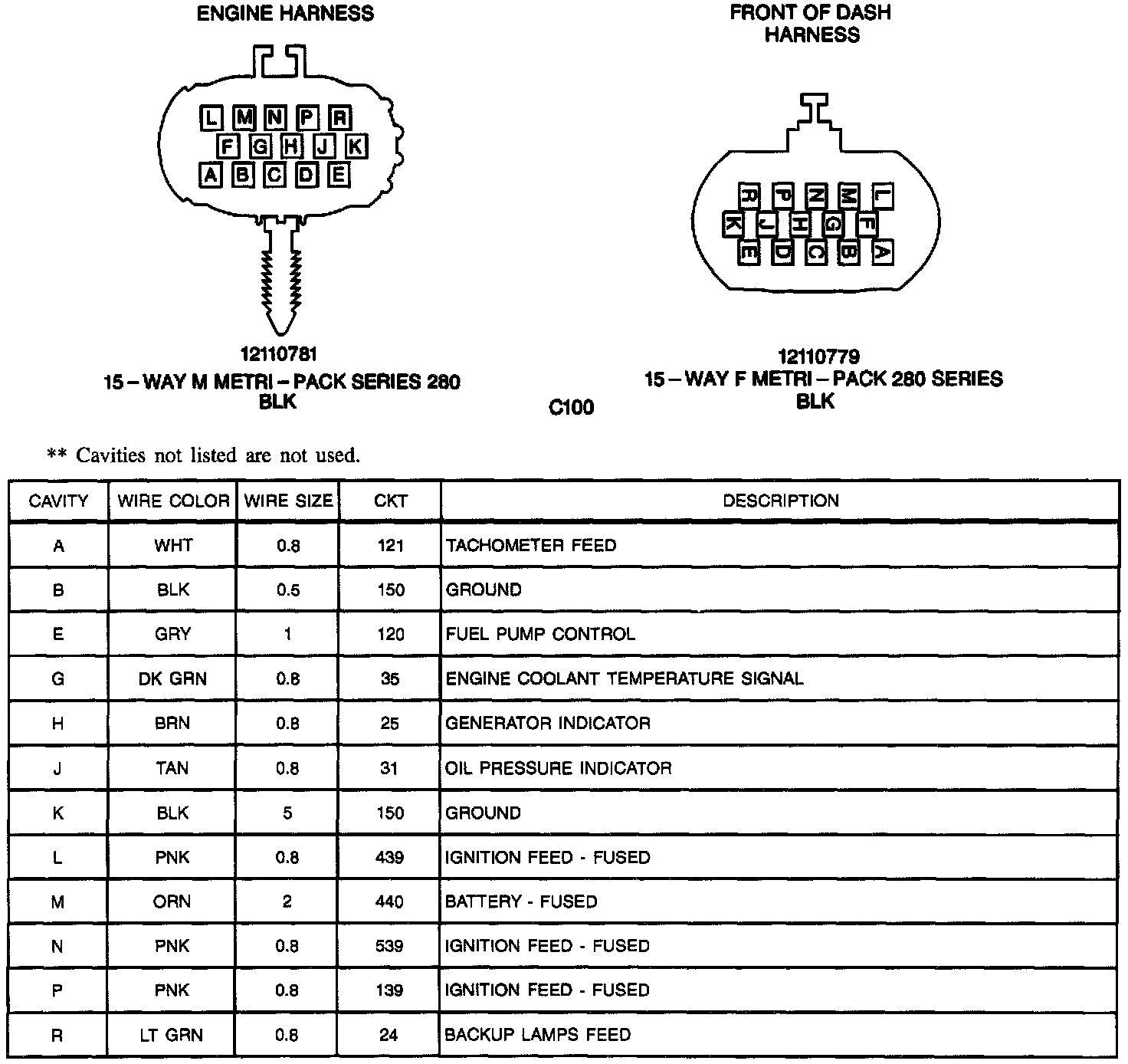

C100: Engine Harness, Front Of Dash Harness:

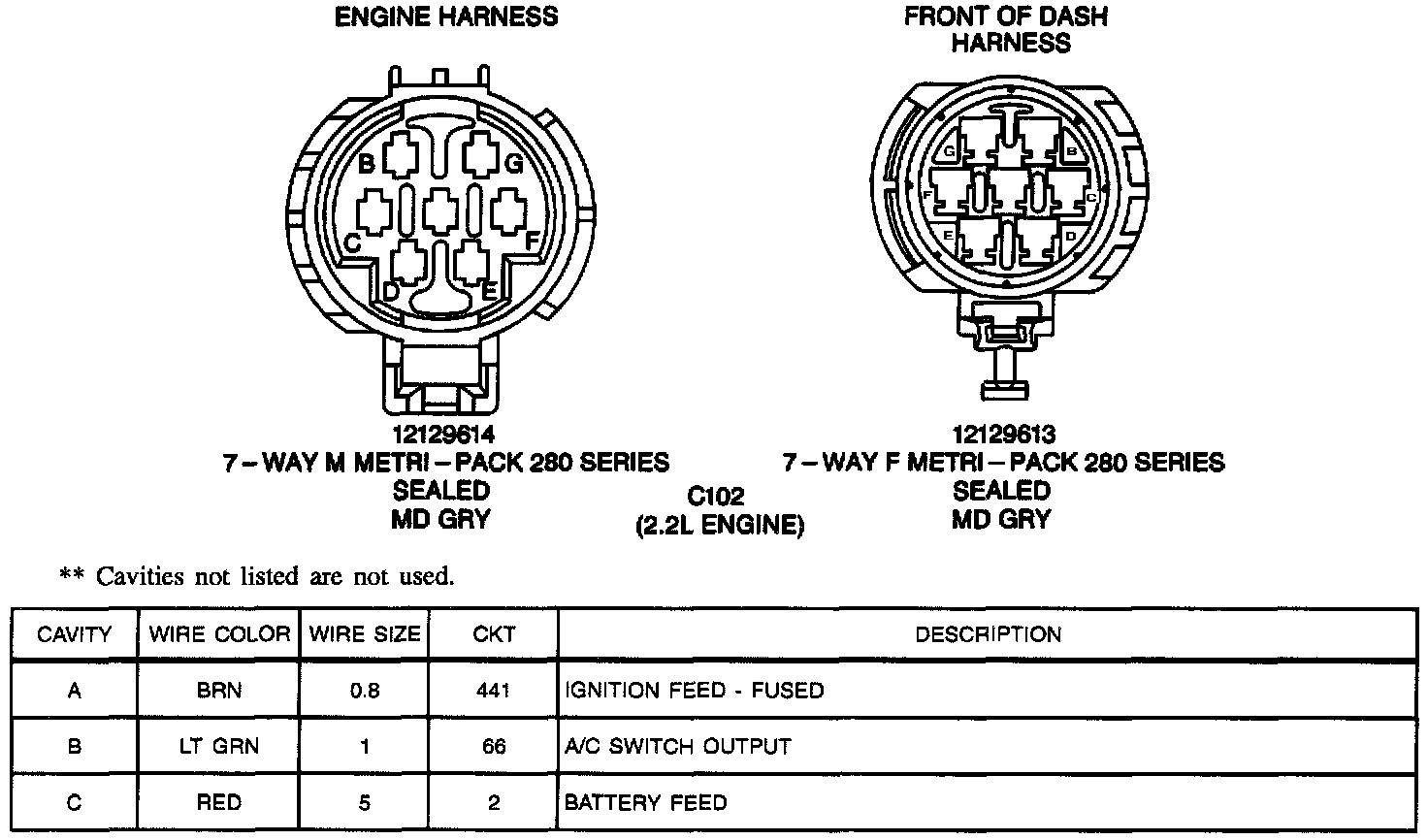

C102: Engine Harness, Front Of Dash Harness:

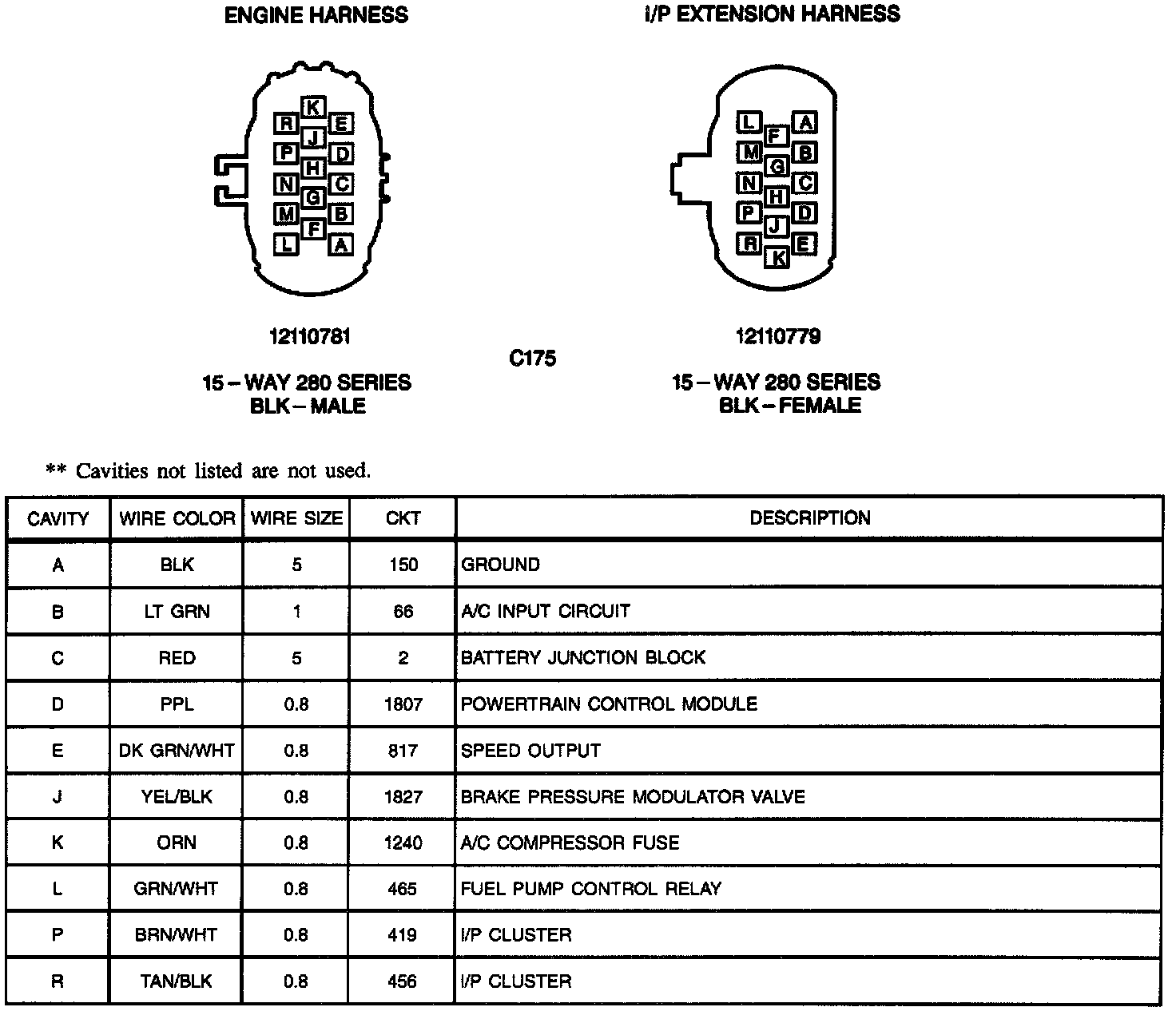

C175: Engine Harness, I/P Extension Harness:

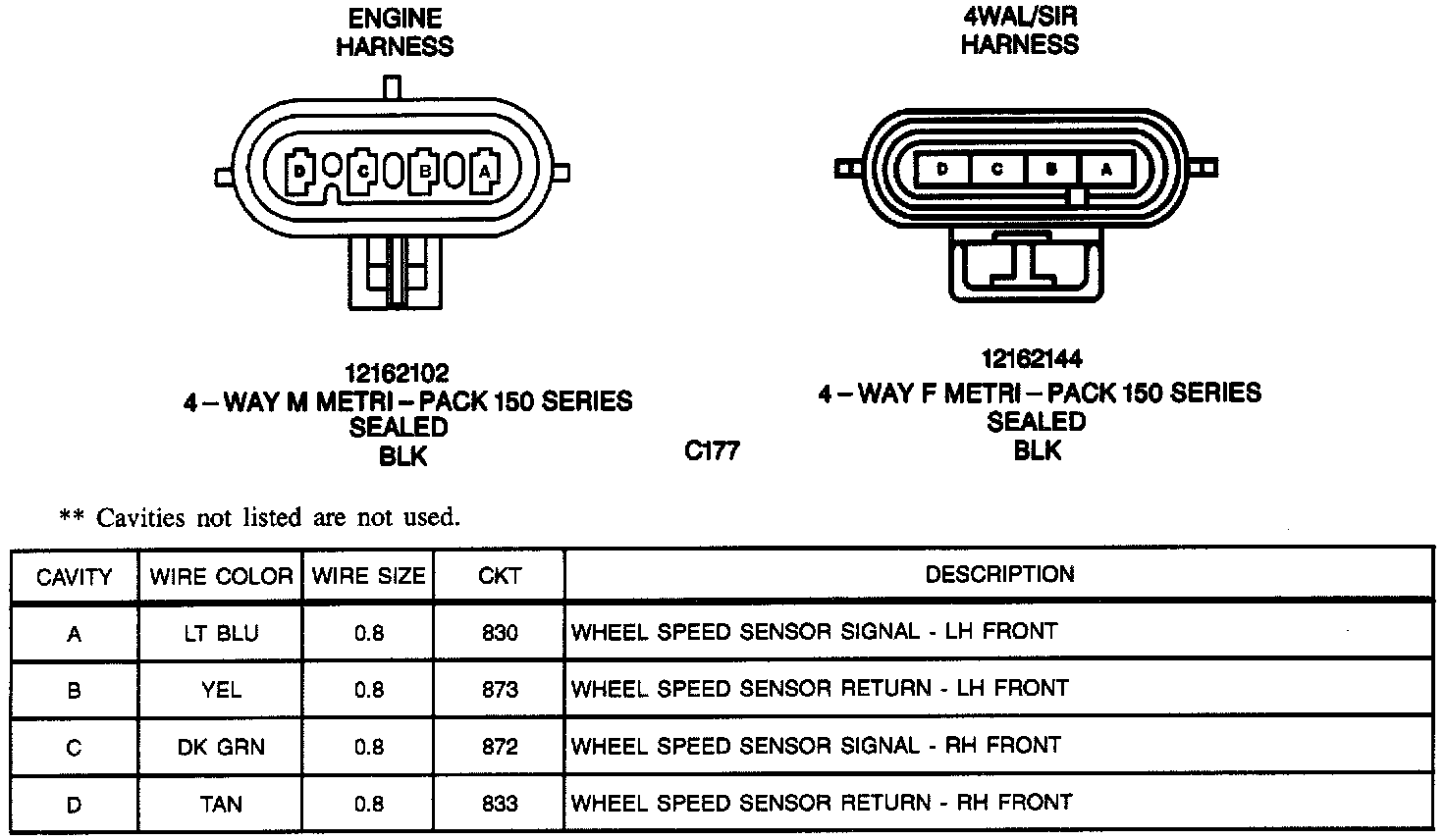

C177: Engine Harness, 4WAL/SIR Harness:

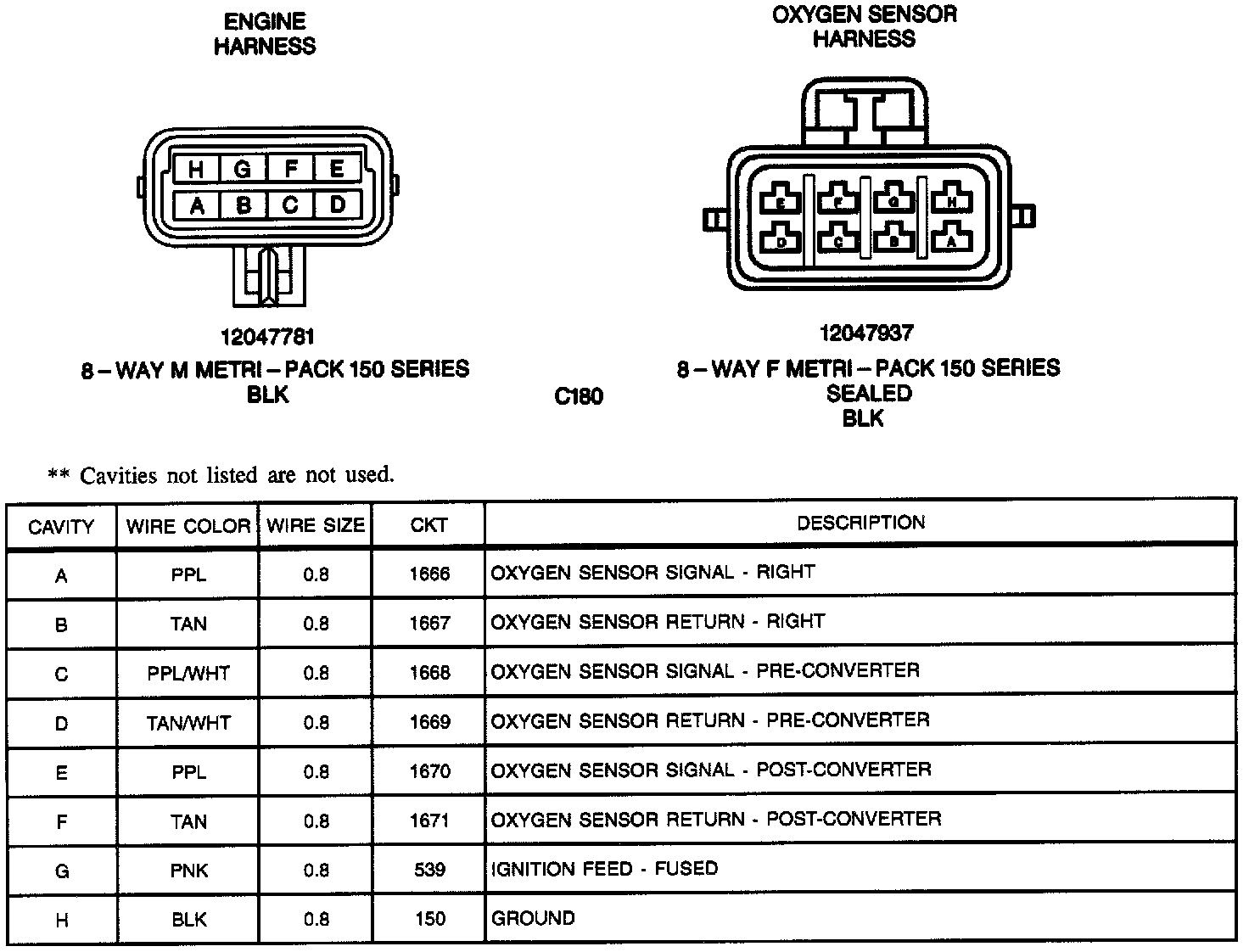

C180: Engine Harness, Oxygen Sensor Harness:

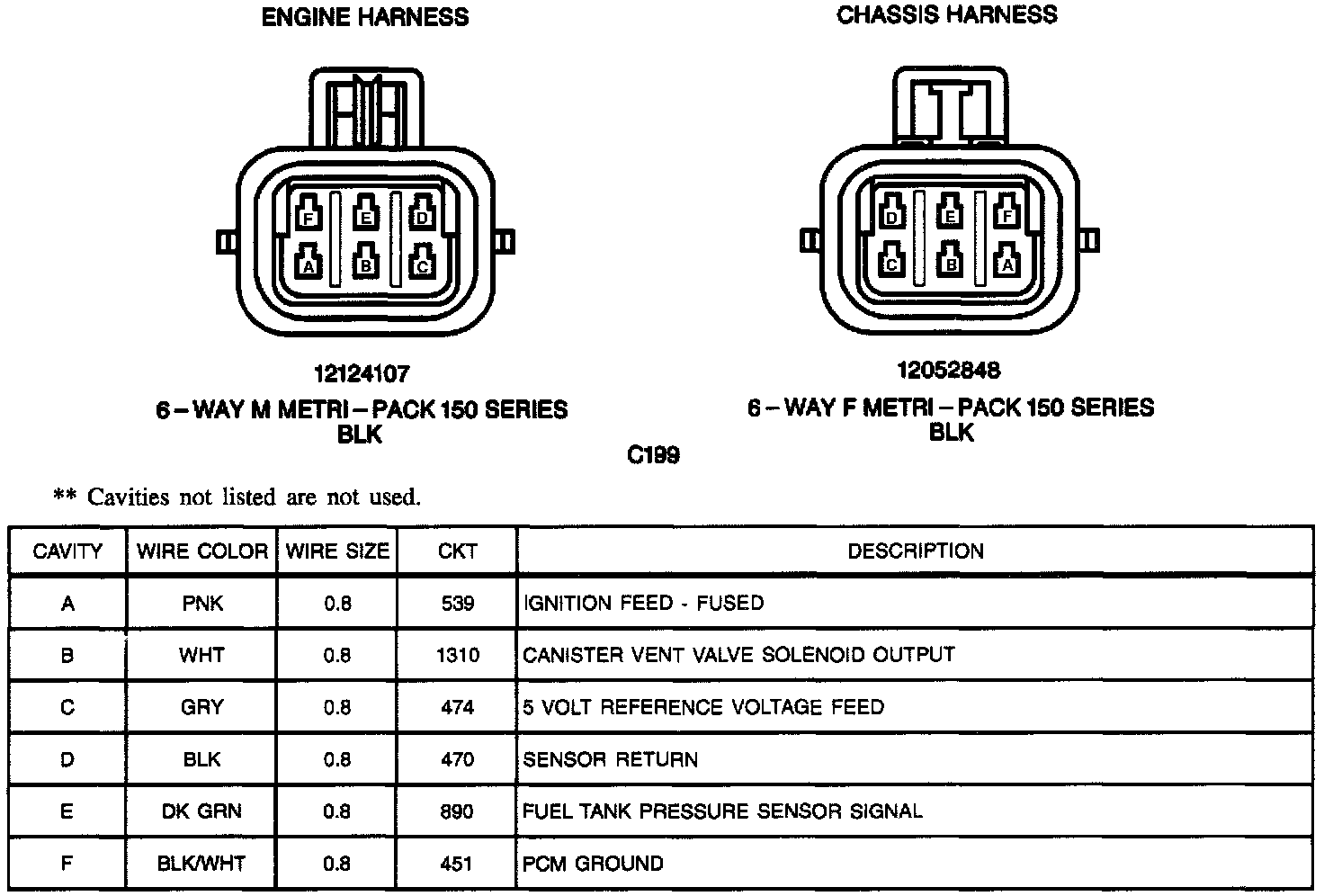

C199: Engine Harness, Chassis Harness:

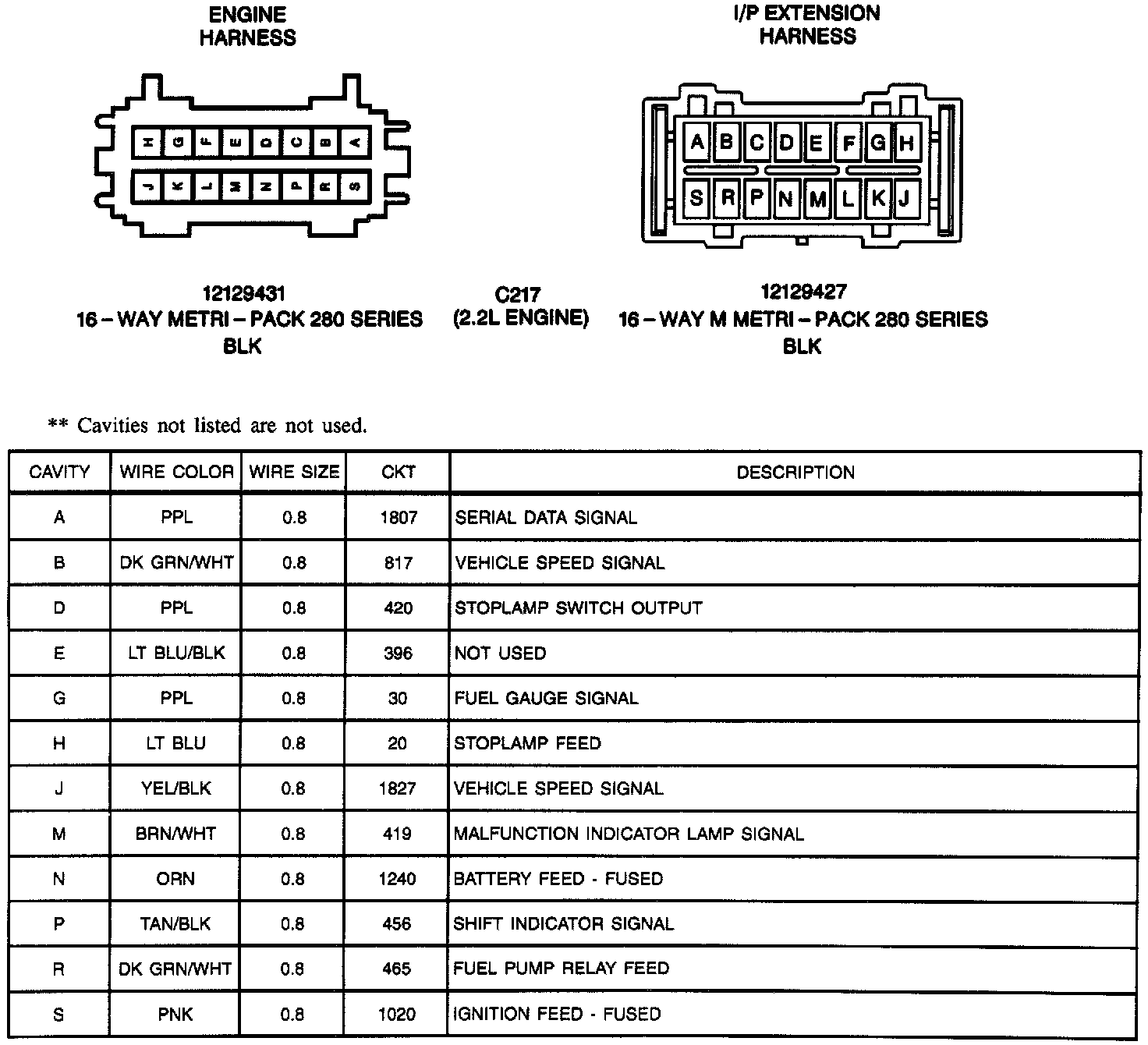

C217: Engine Harness, I/P Extension Harness:

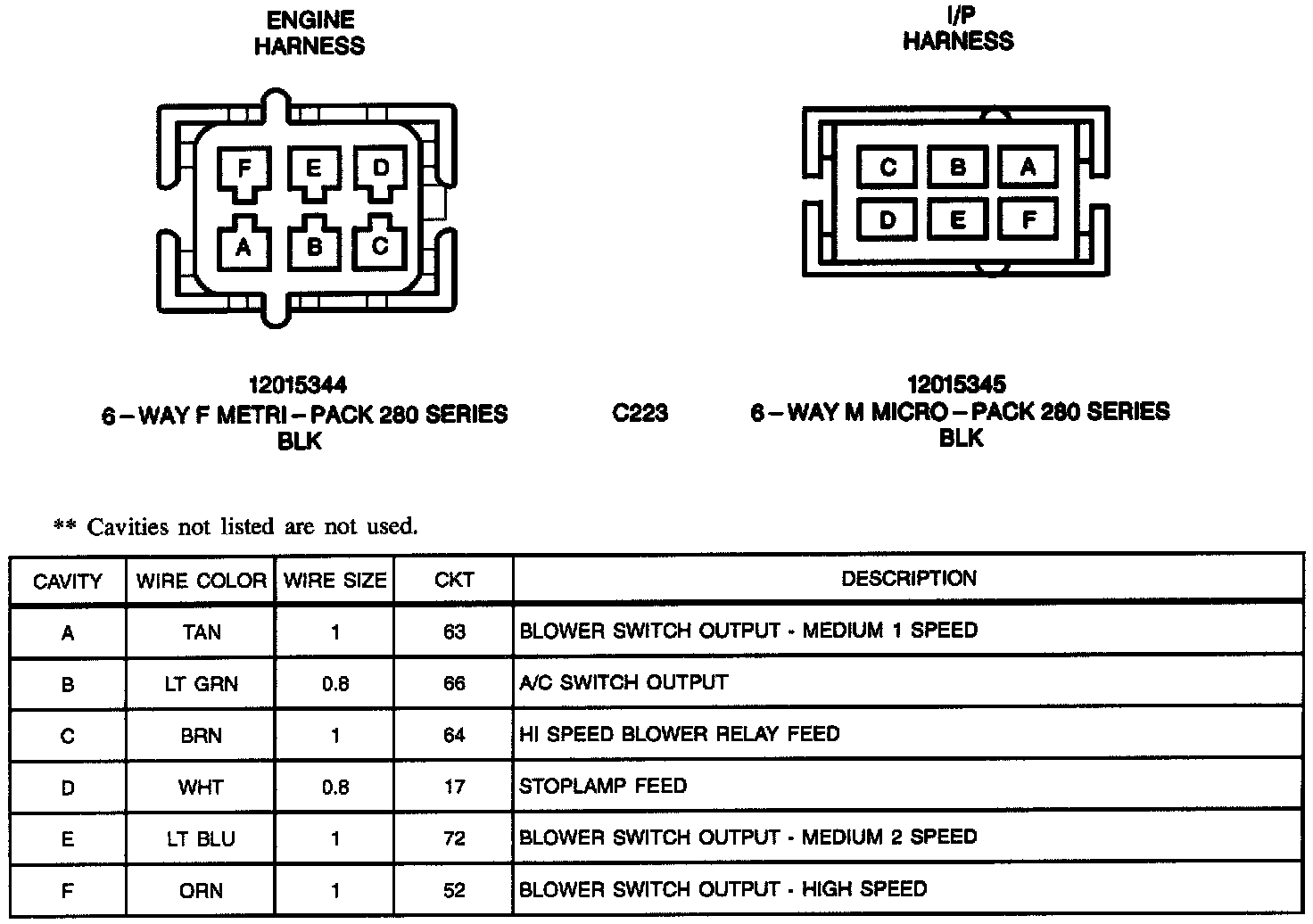

C223: Engine Harness, I/P Harness:
