Powertrain Control Module

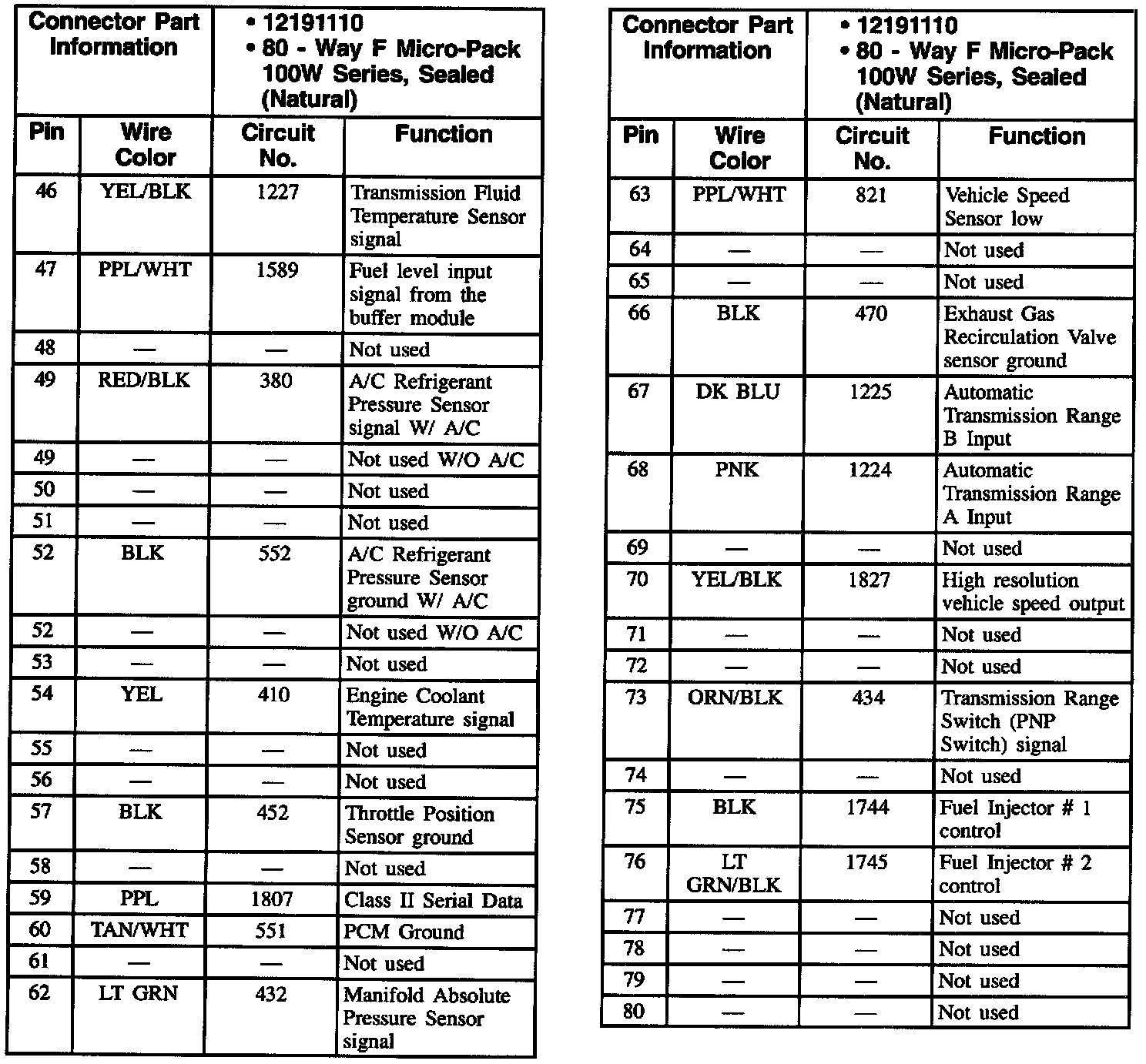

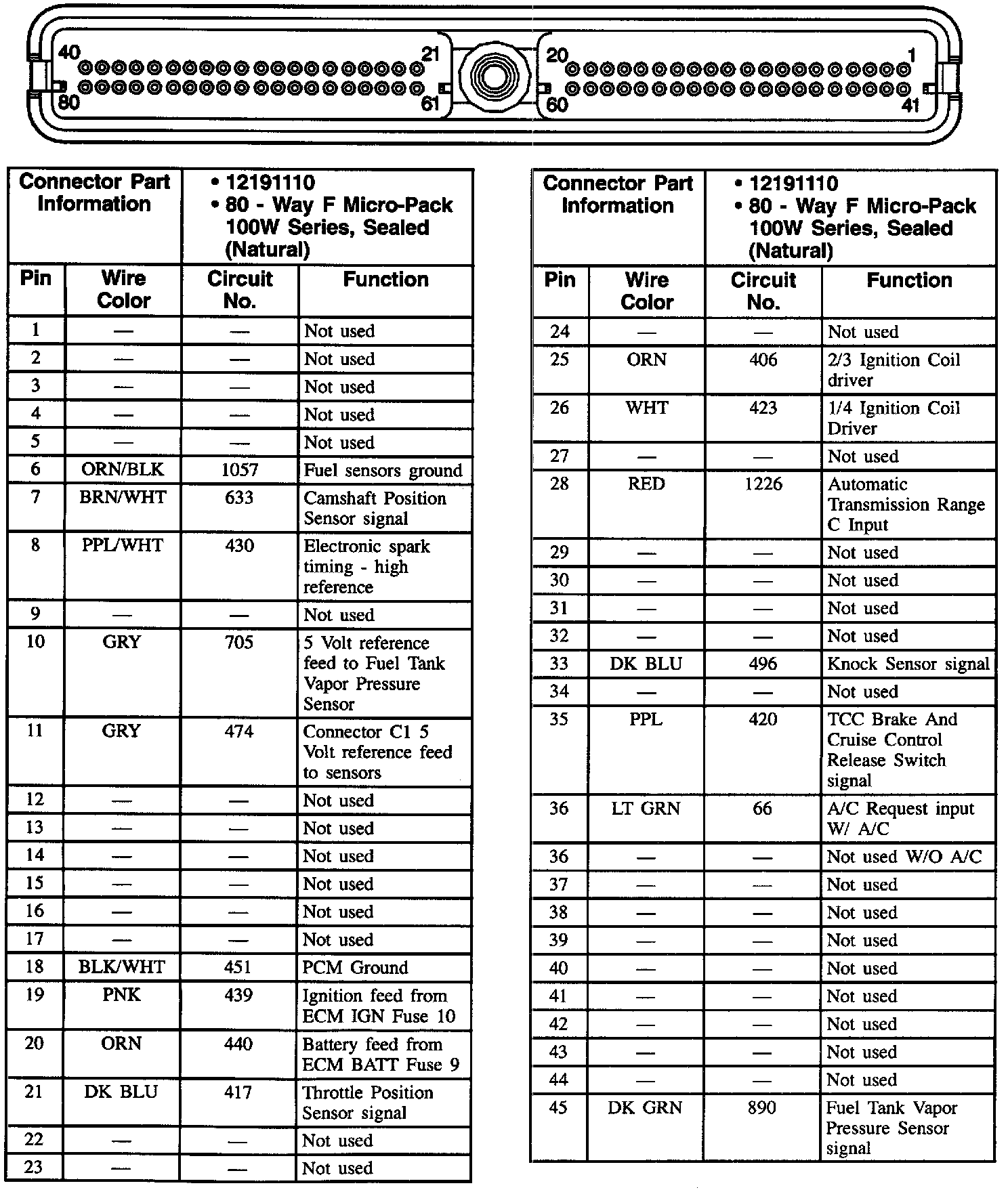

Powertrain Control Module Connector C1 (2.2L W/ A/T)

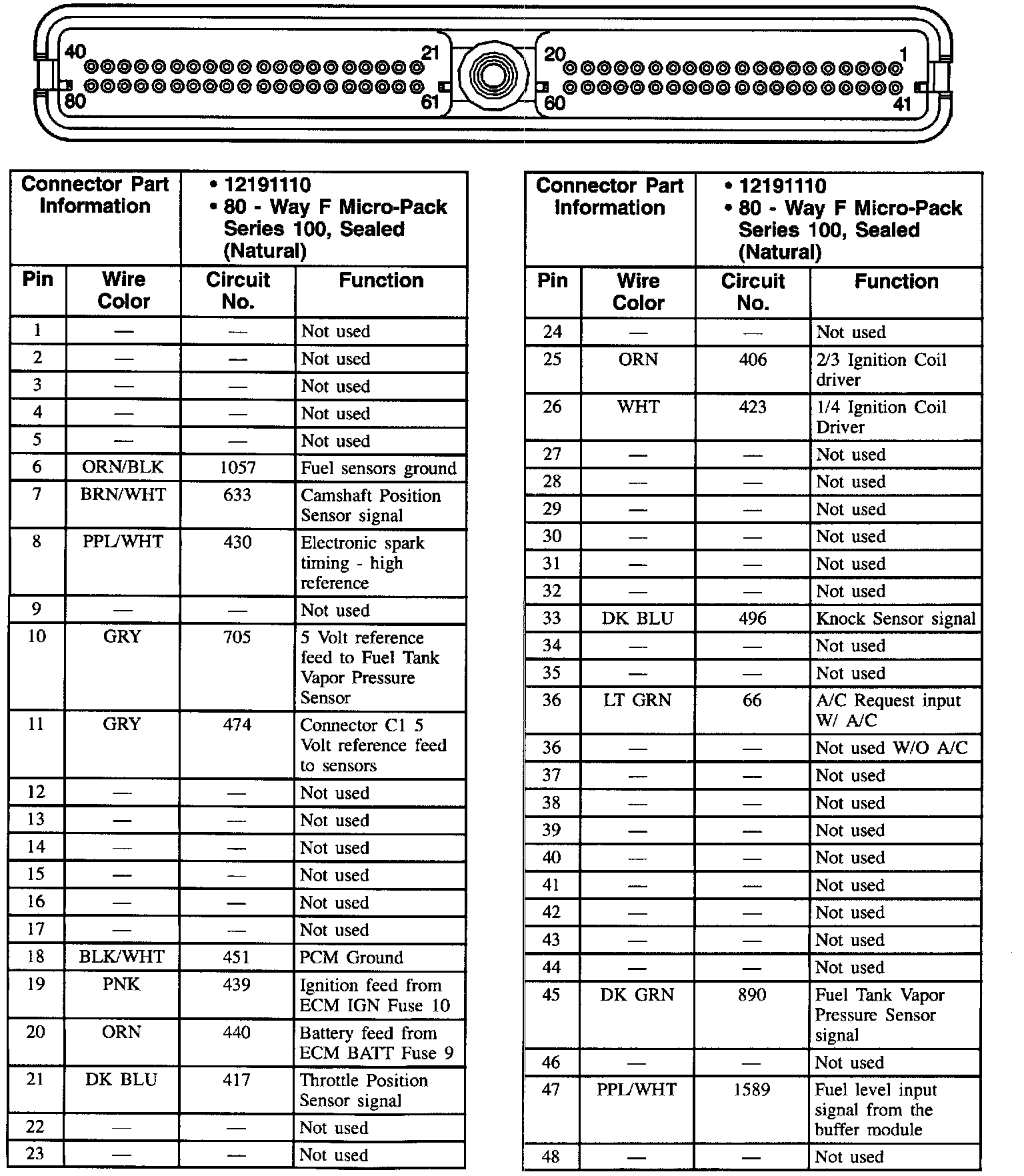

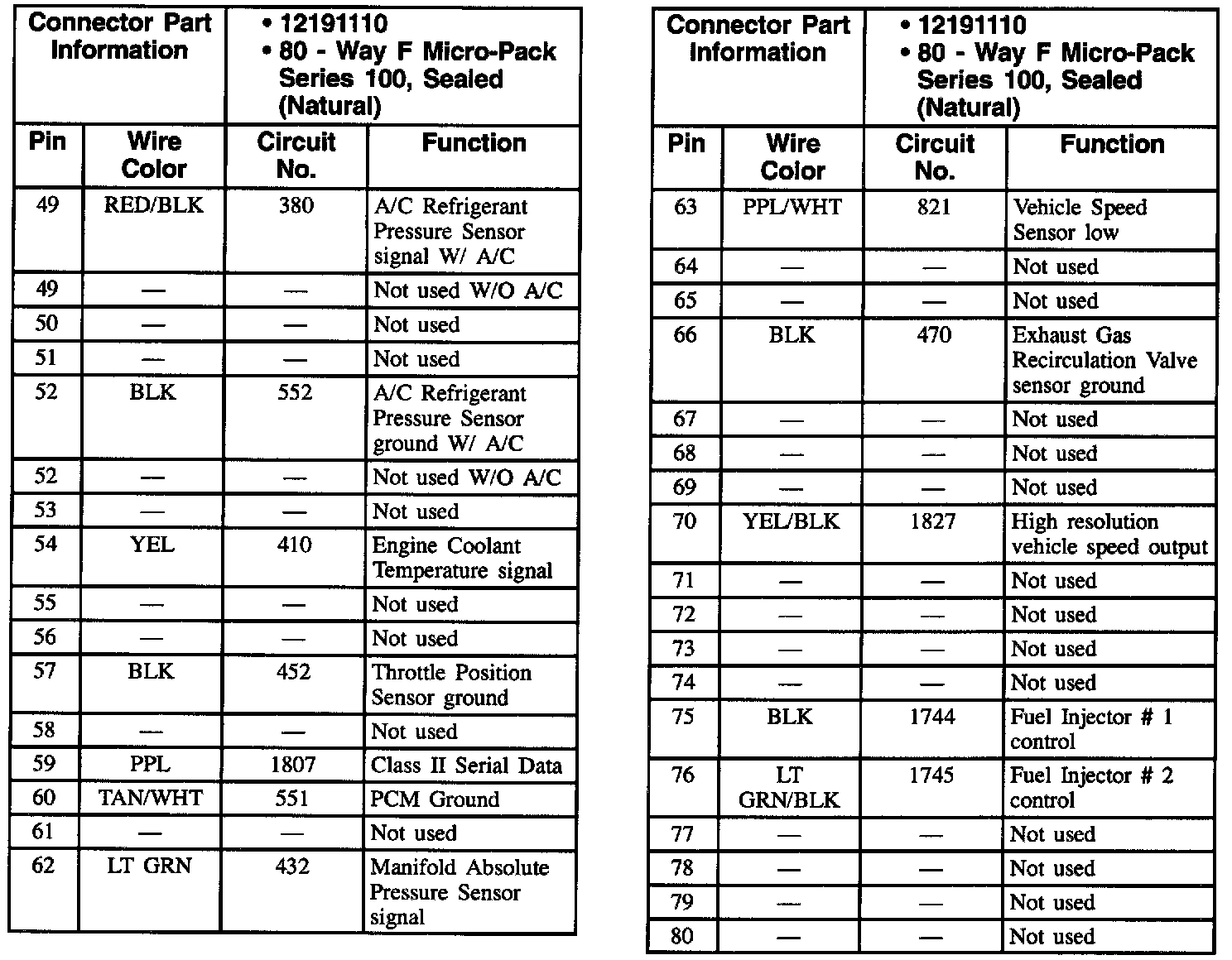

Powertrain Control Module Connector C1 (2.2L W/ M/T)

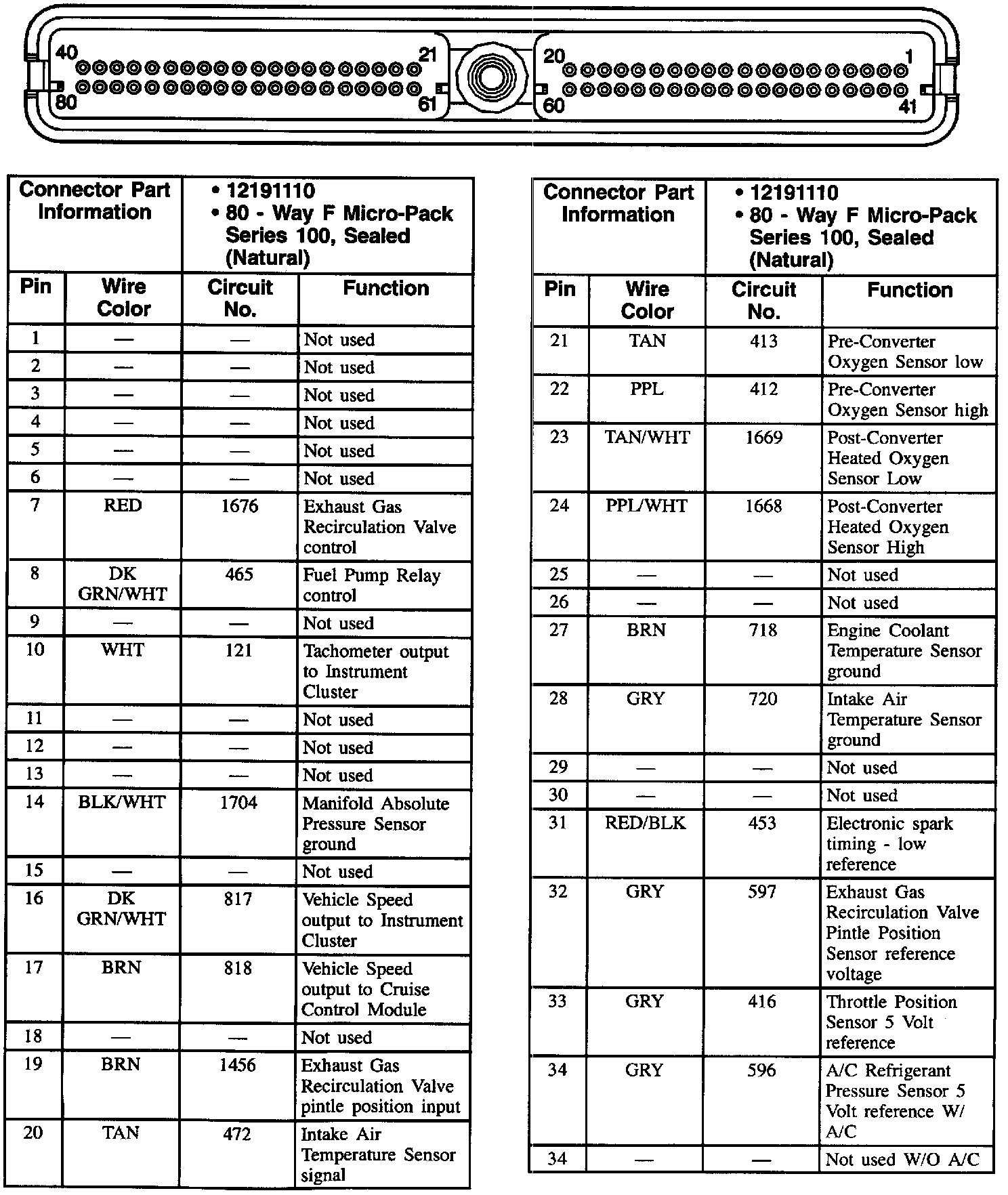

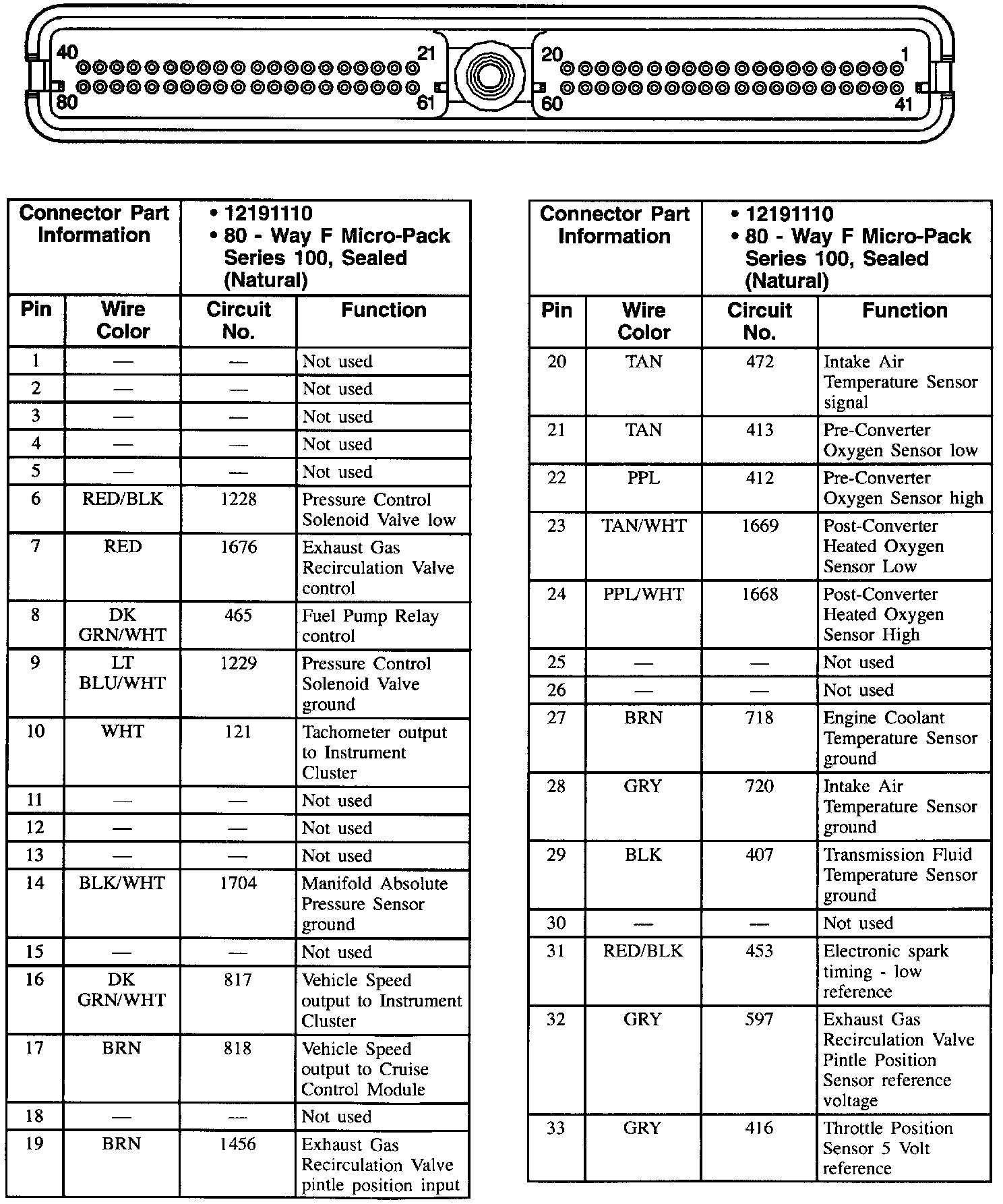

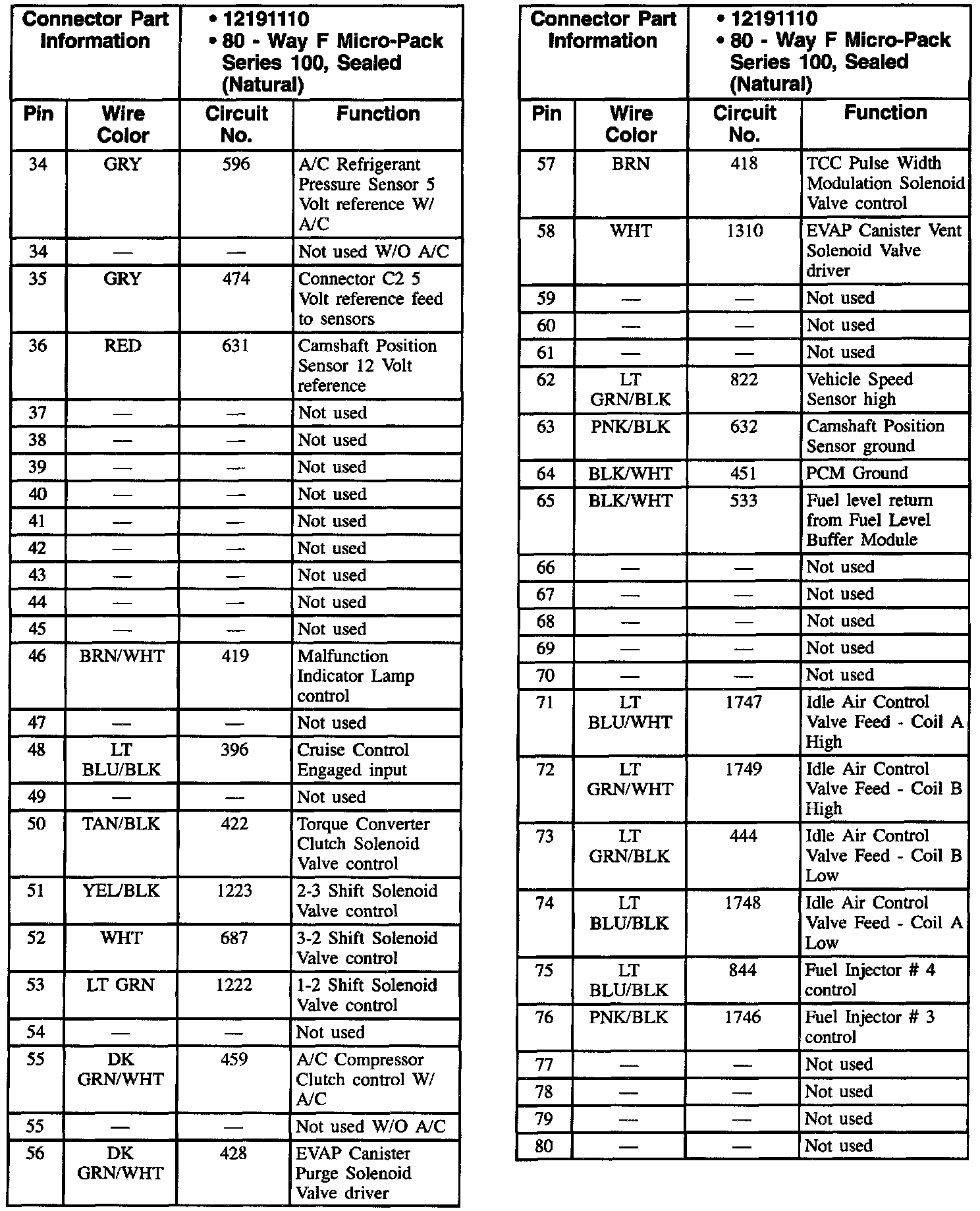

Powertrain Control Module Connector C2 (2.2L W/ A/T, W/ A/C)







Powertrain Control Module Connector C2 (2.2L W/ M/T)
