Engine Controls Component Views

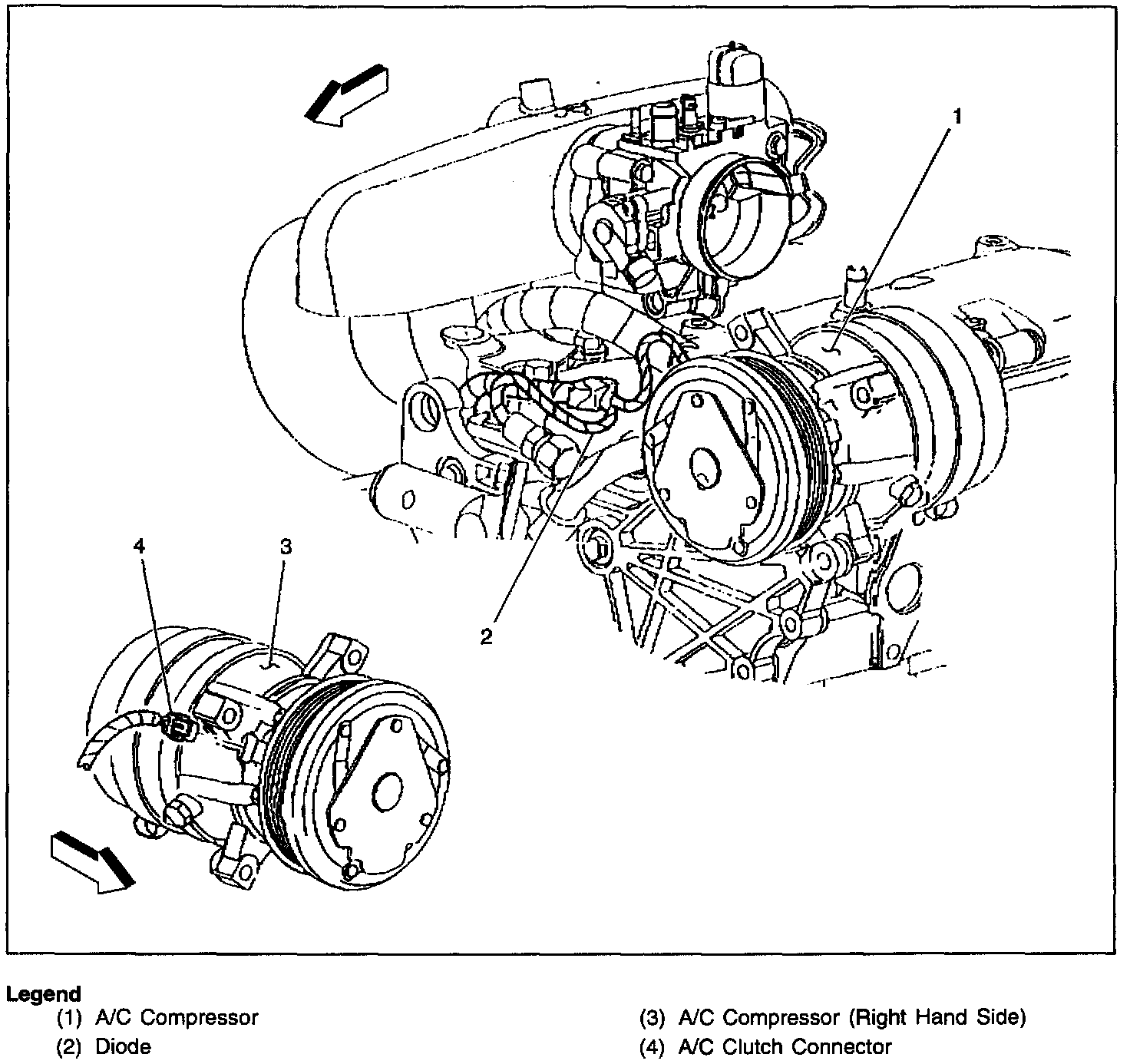

A/C Compressor

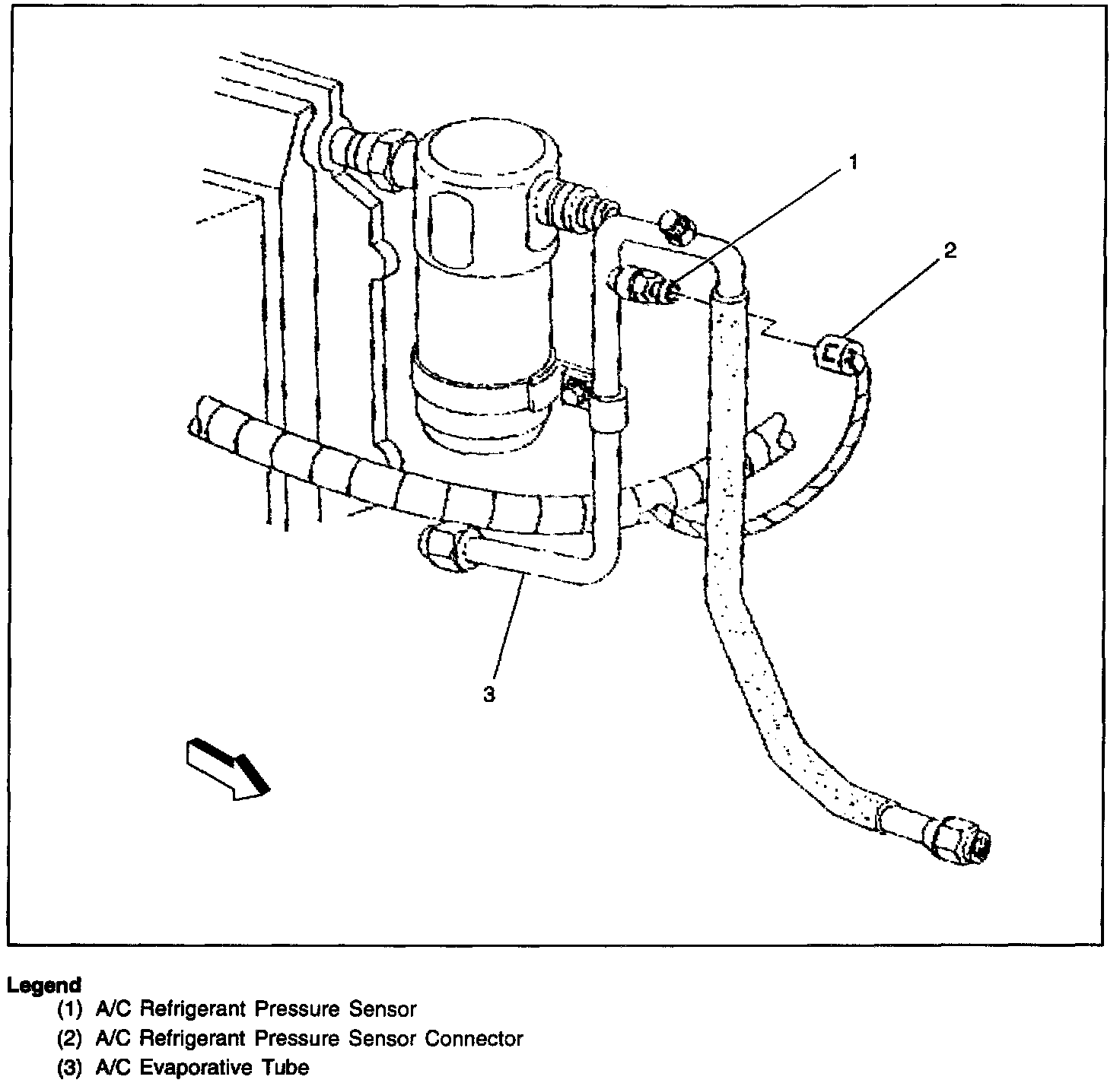

A/C Refrigerant Pressure Sensor

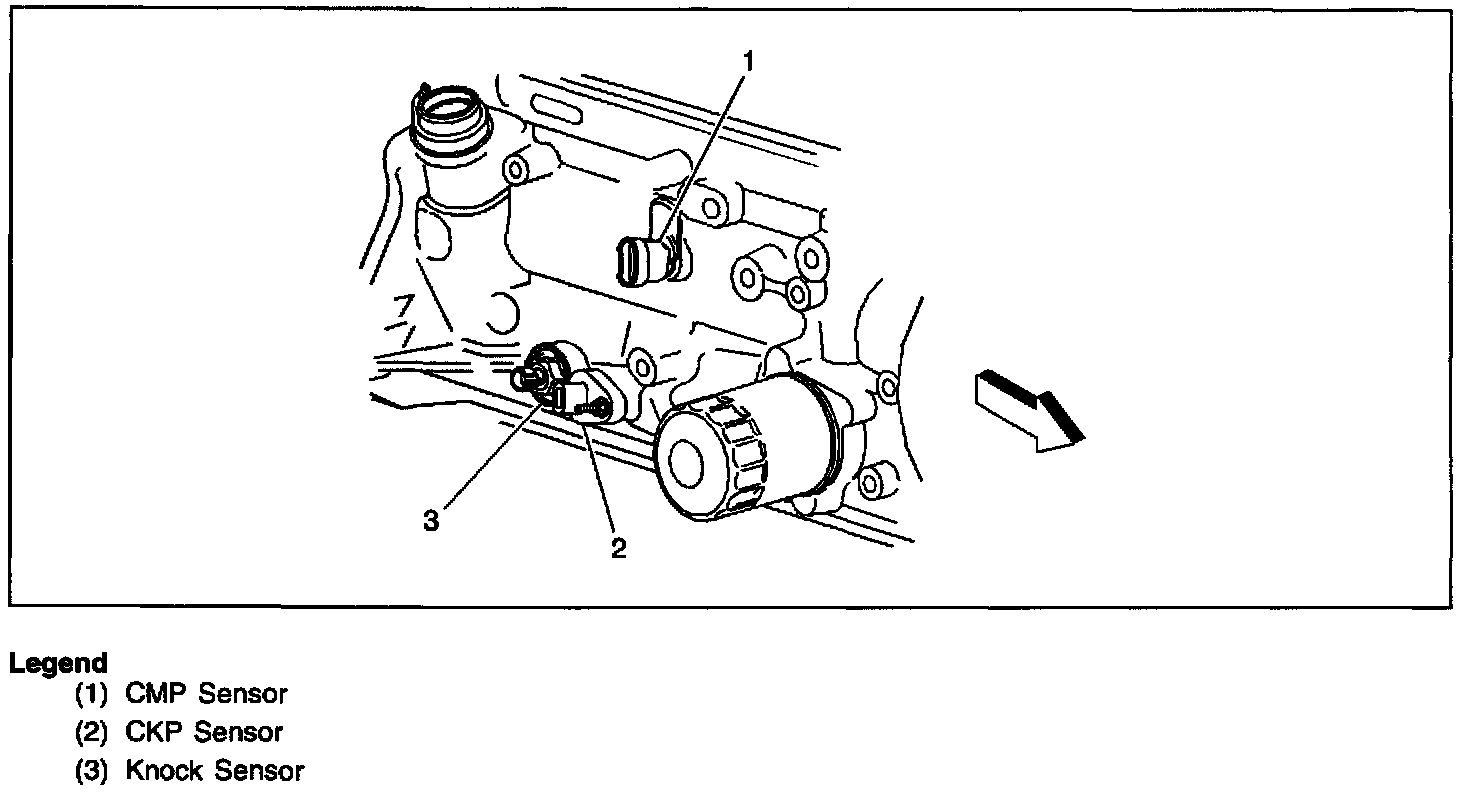

CKP Sensor, CMP Sensor, and Knock Sensor

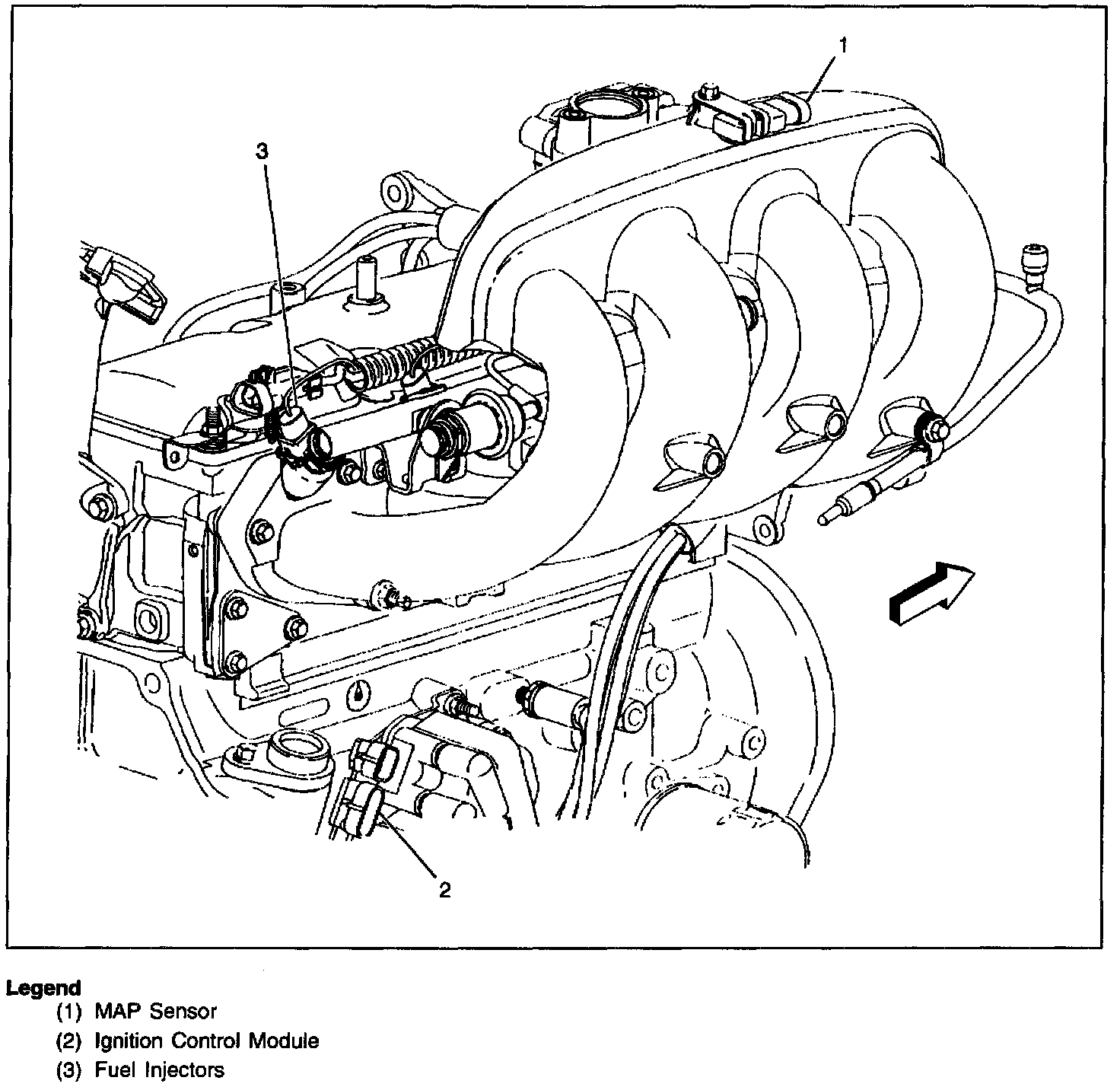

ICM and Fuel Injectors

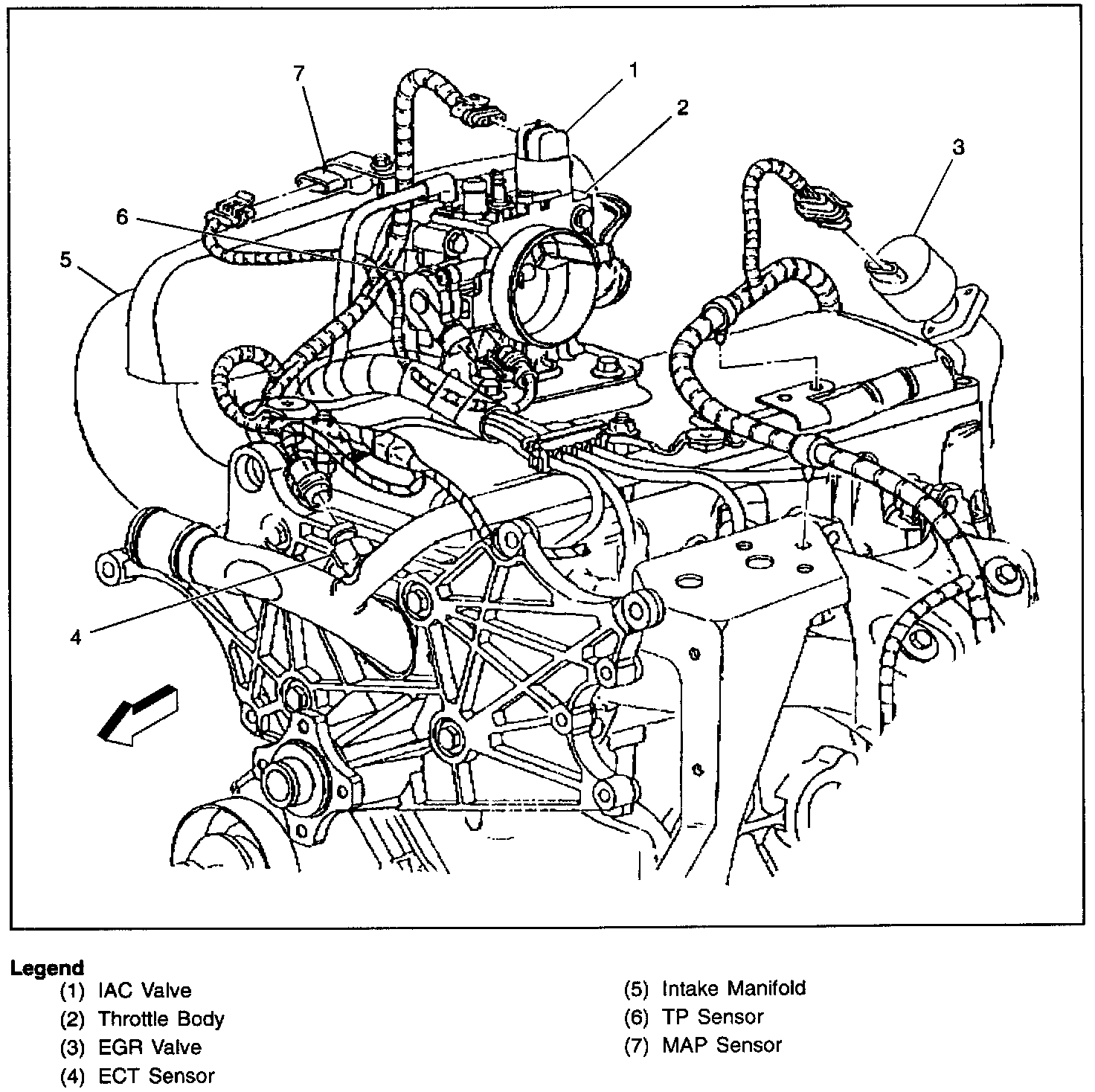

LH Upper Engine

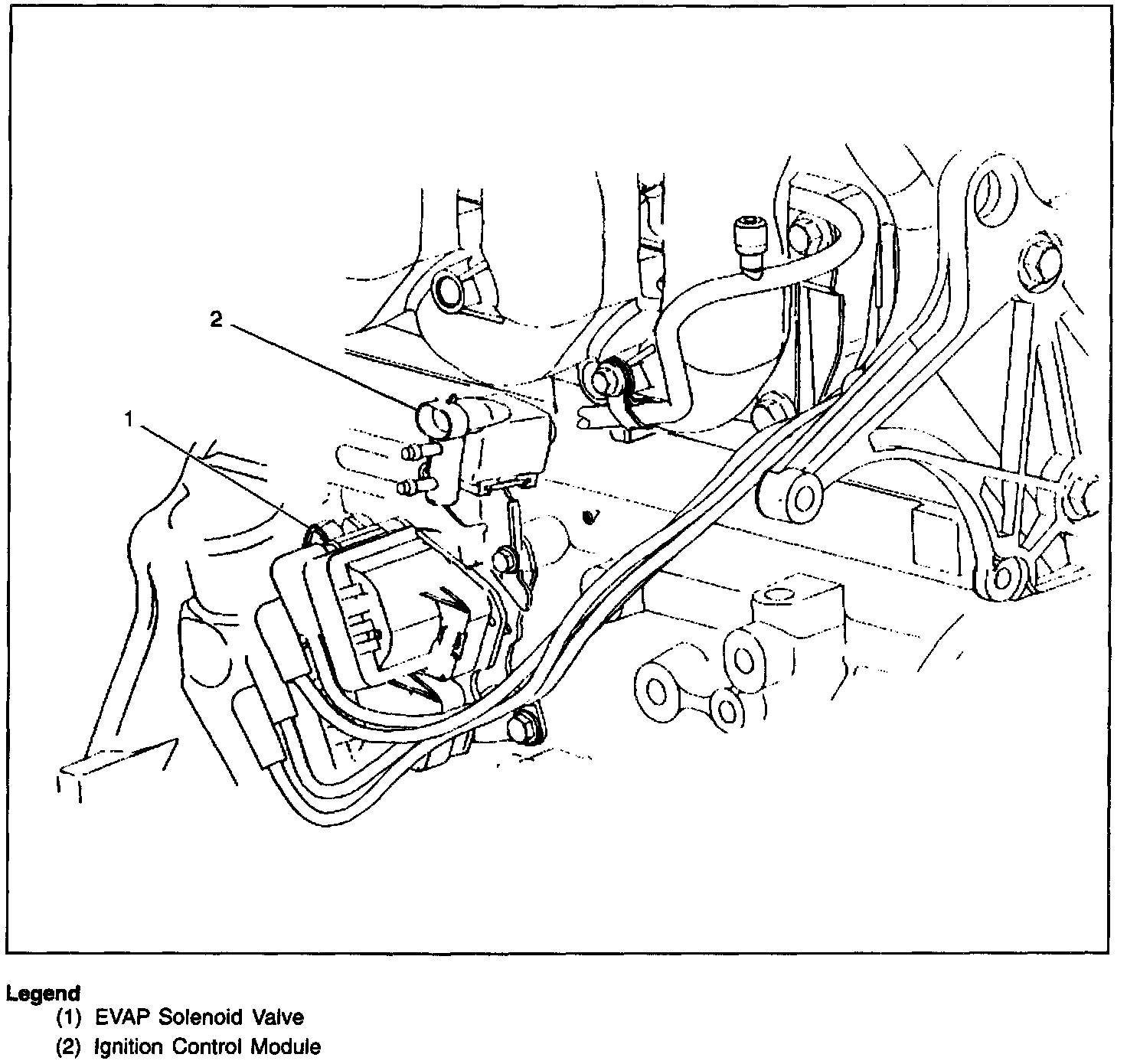

EVAP Solenoid Valve

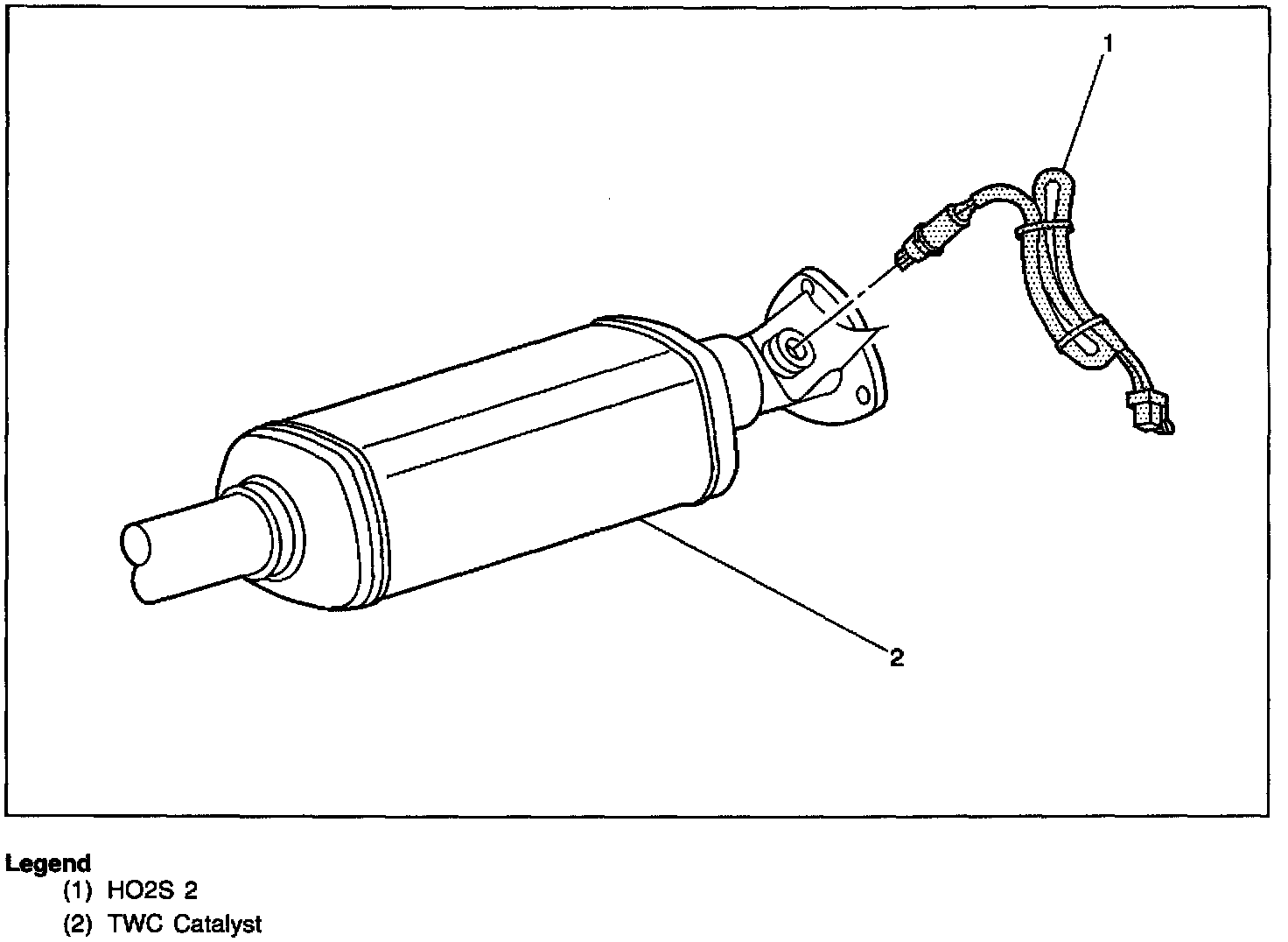

HO2S 2

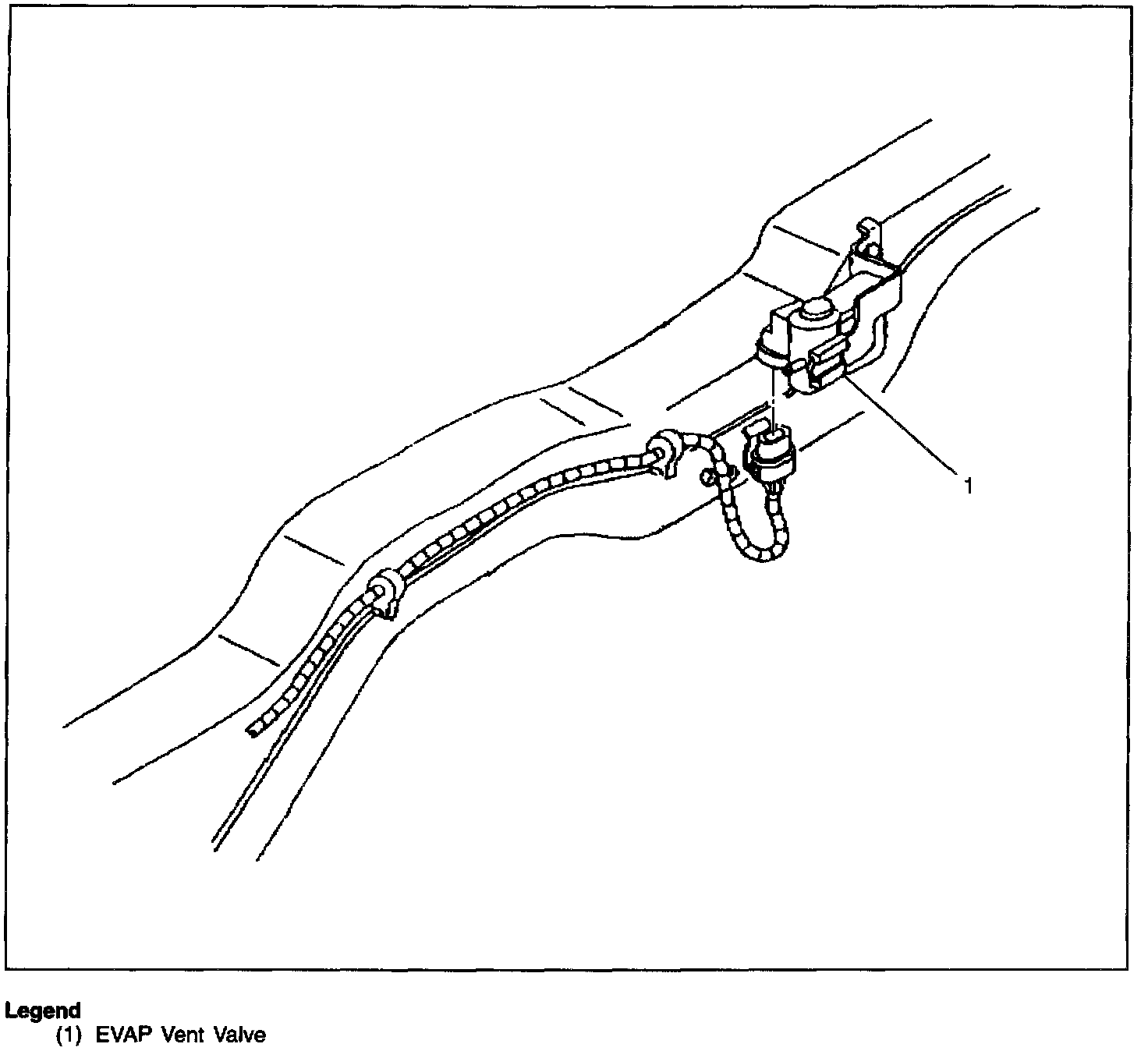

EVAP Vent Valve

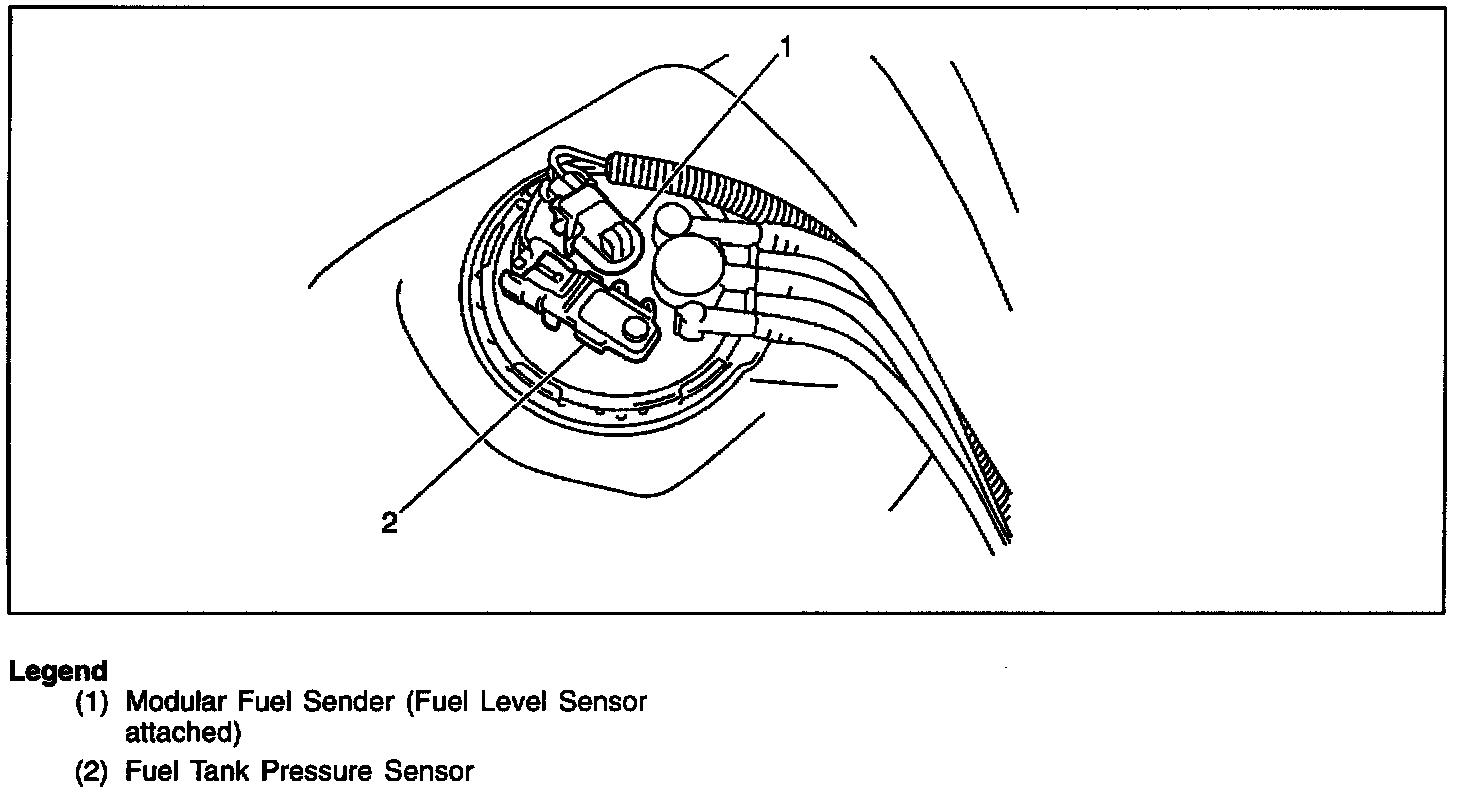

Modular Fuel Sender

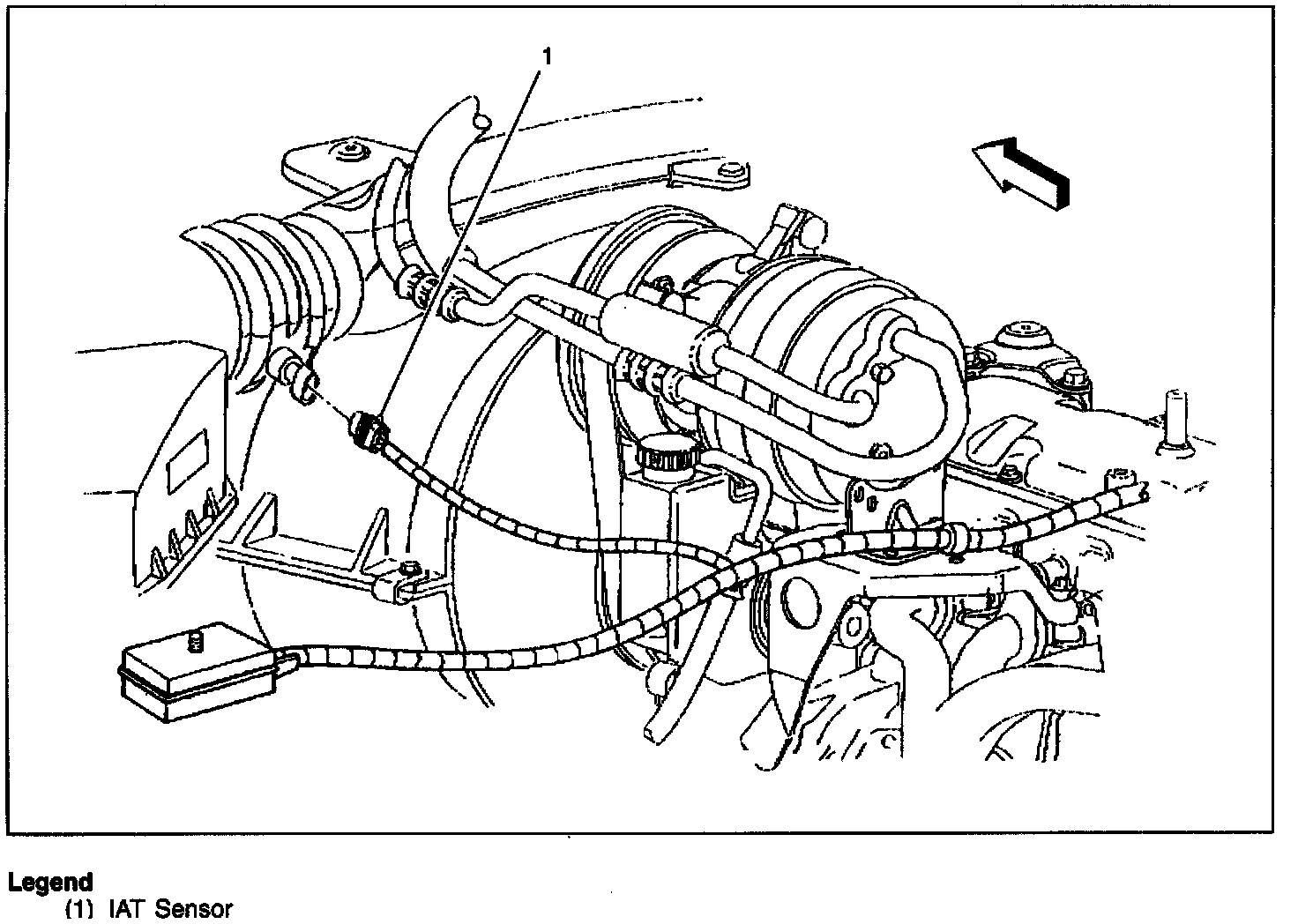

IAT Sensor

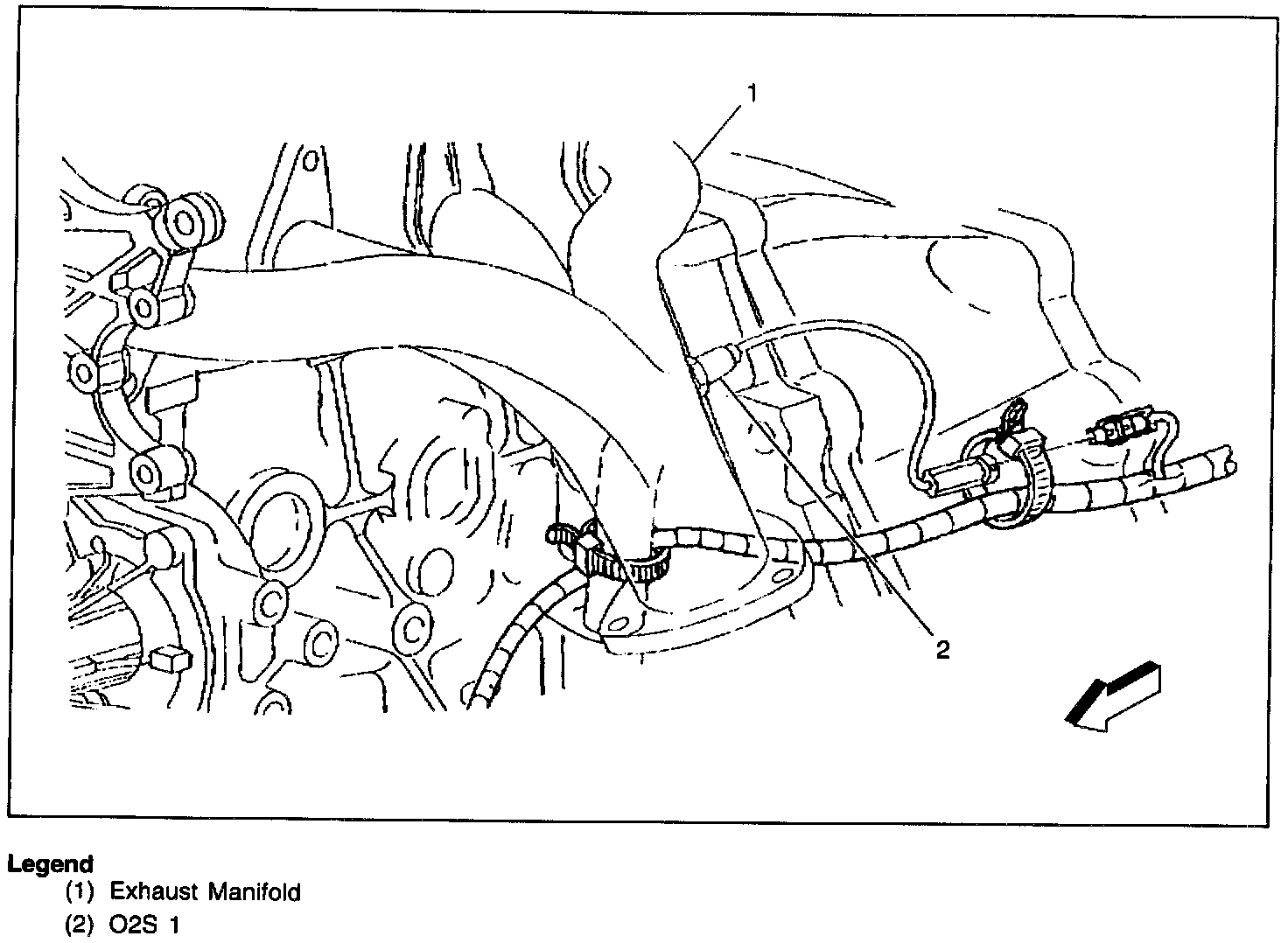

O2S 1

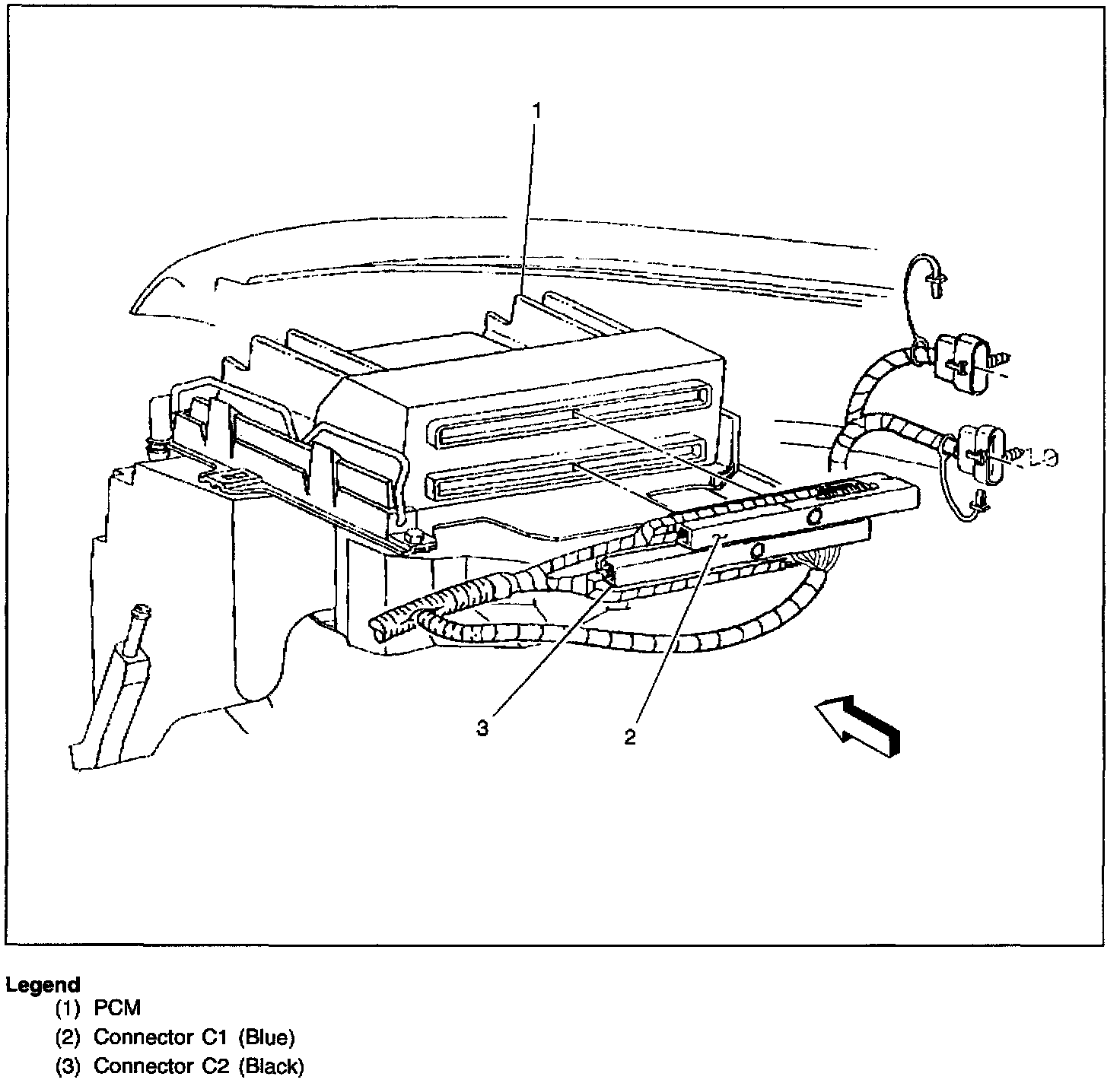

PCM Connectors

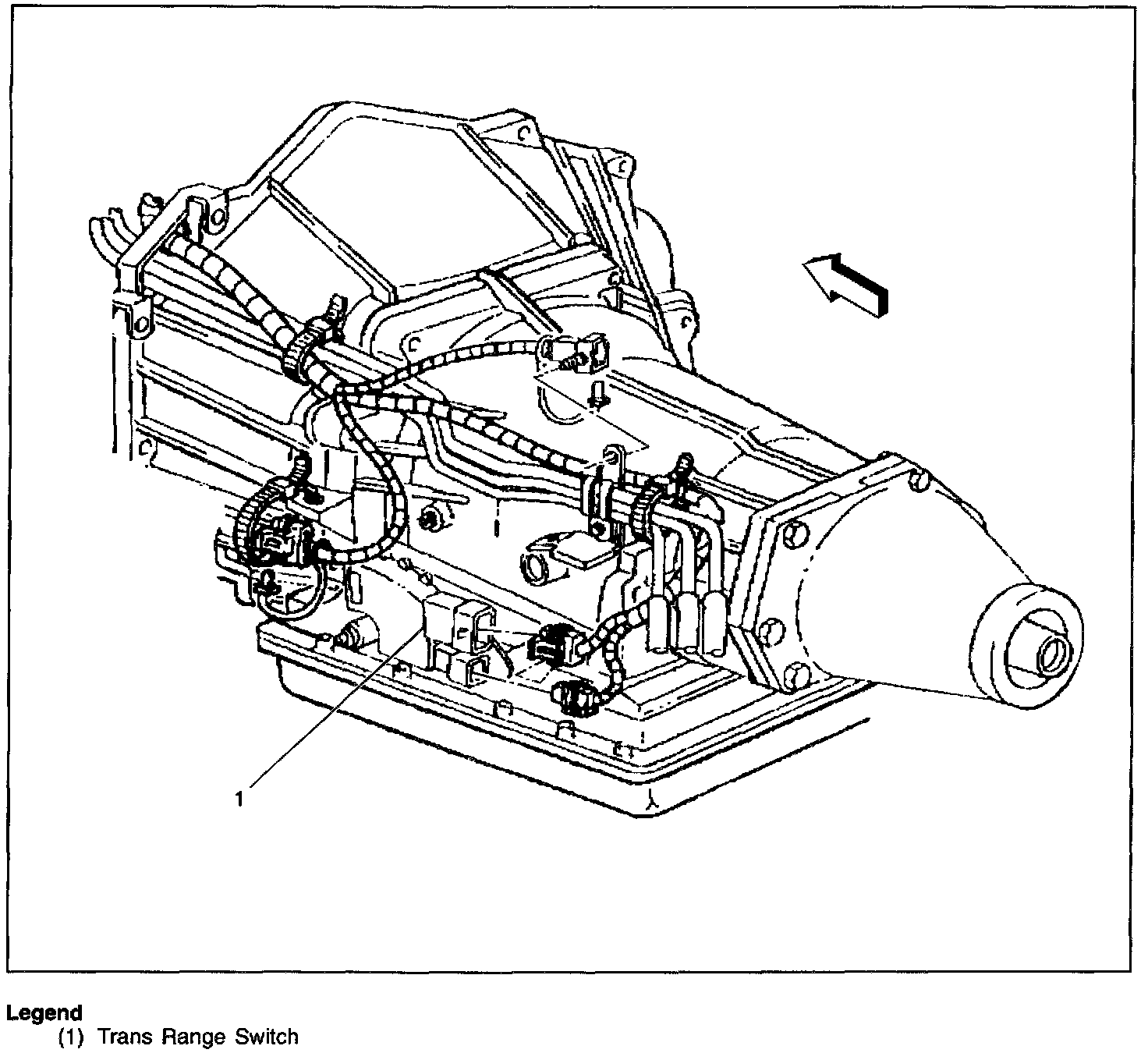

Trans Range Switch
