PCM Connector End Views

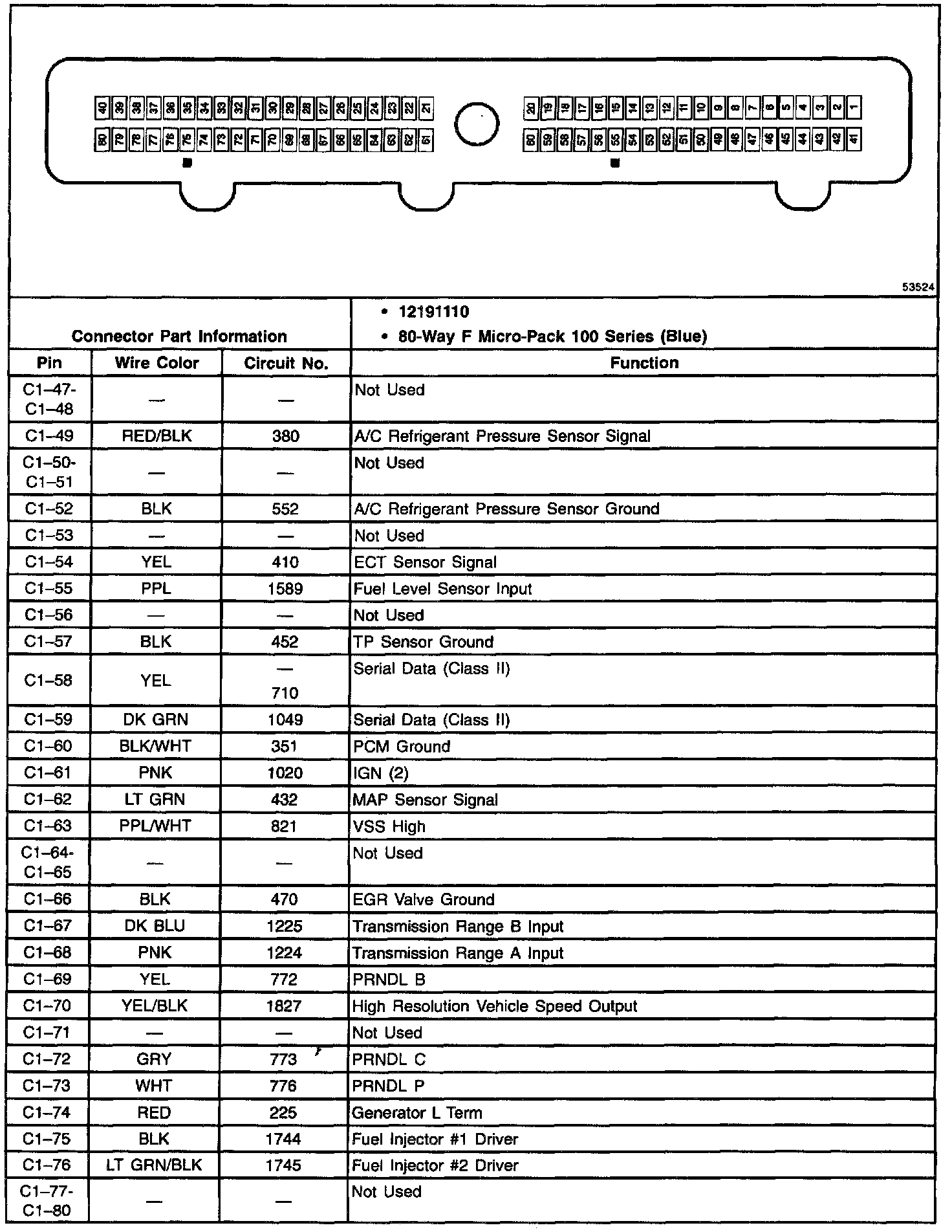

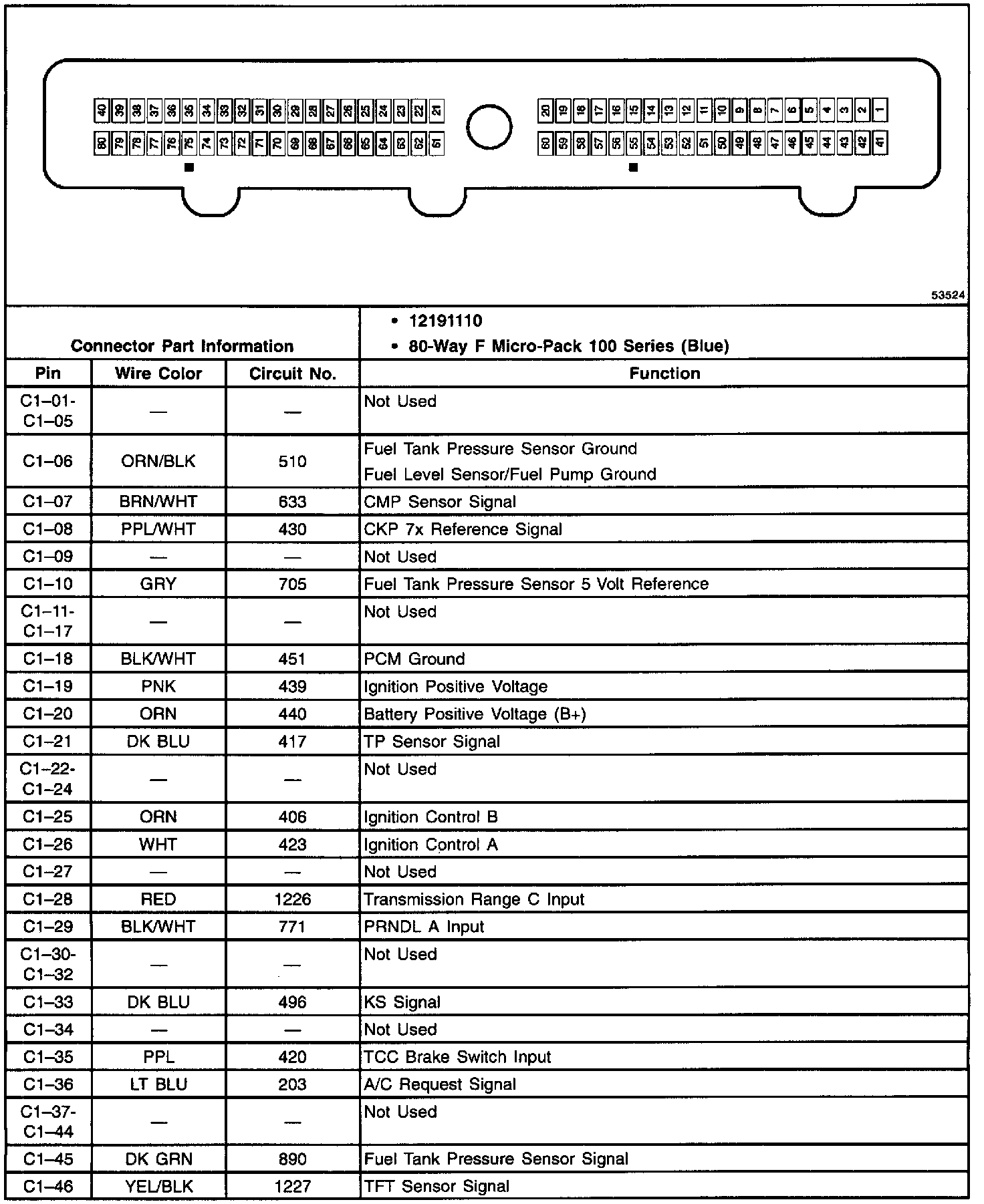

Powertrain Control Module (PCM) Connector C1

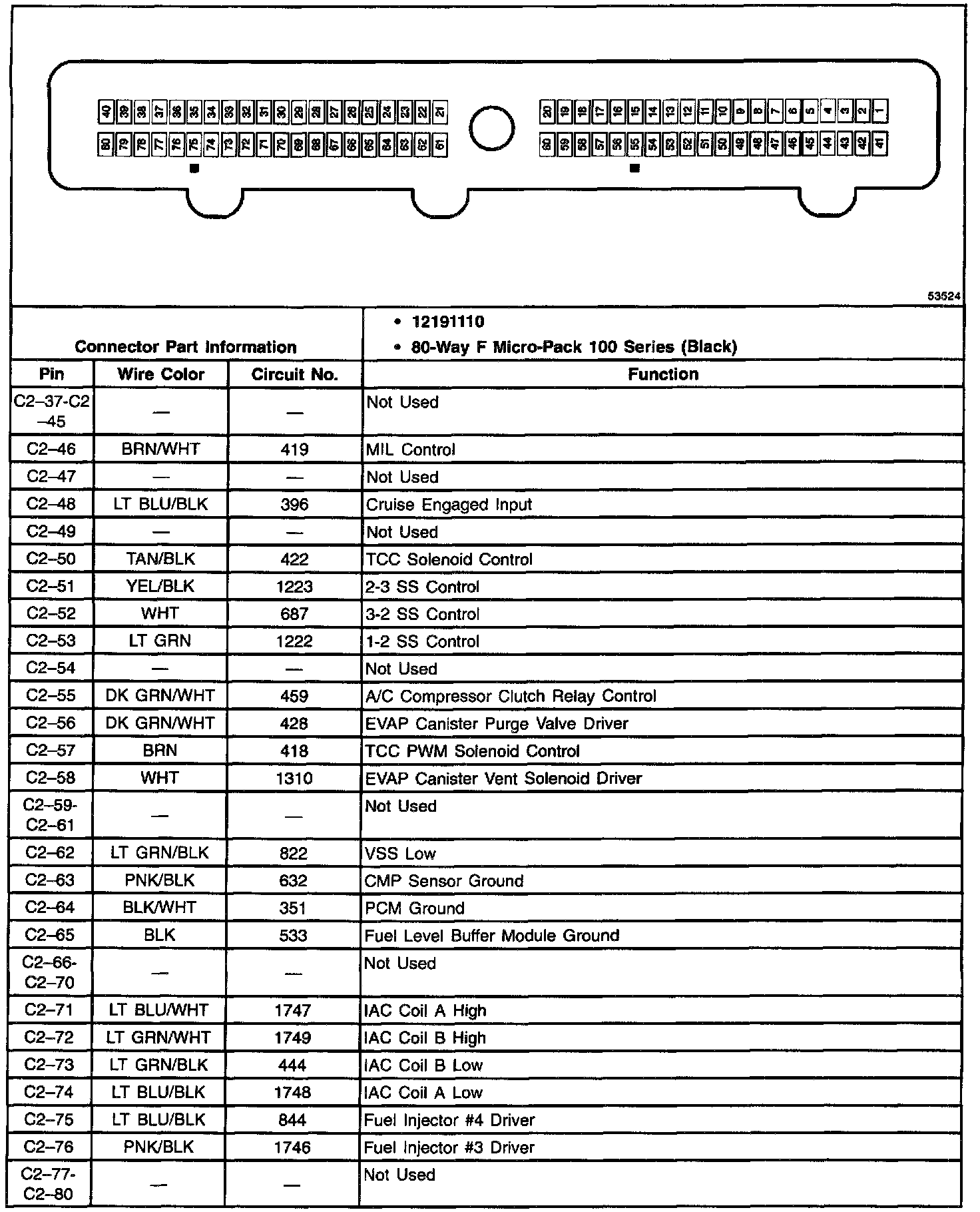

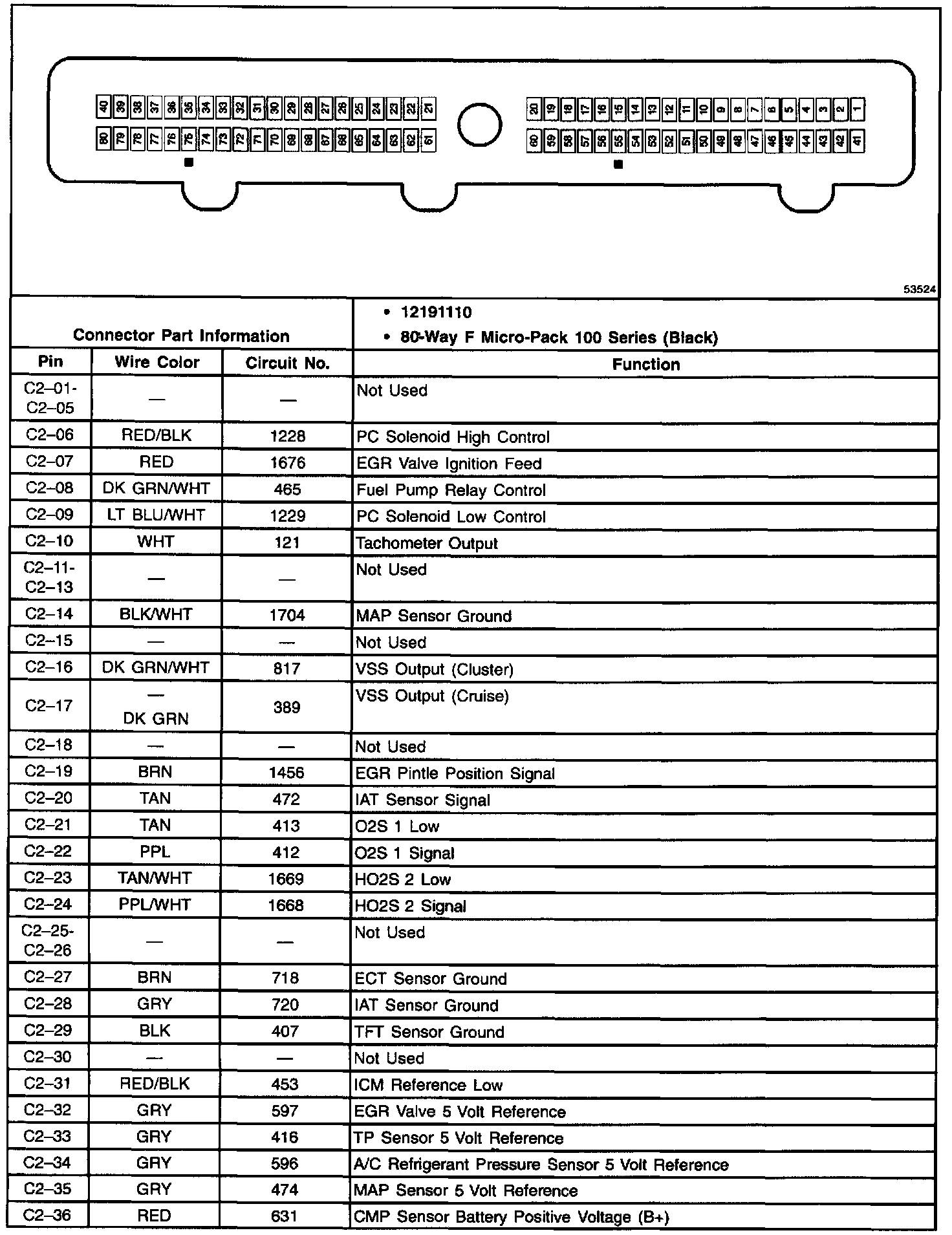

Overtrain Control Module (PCM) Connector C2
