DTC 95: Brake Switch Circuit Always Open

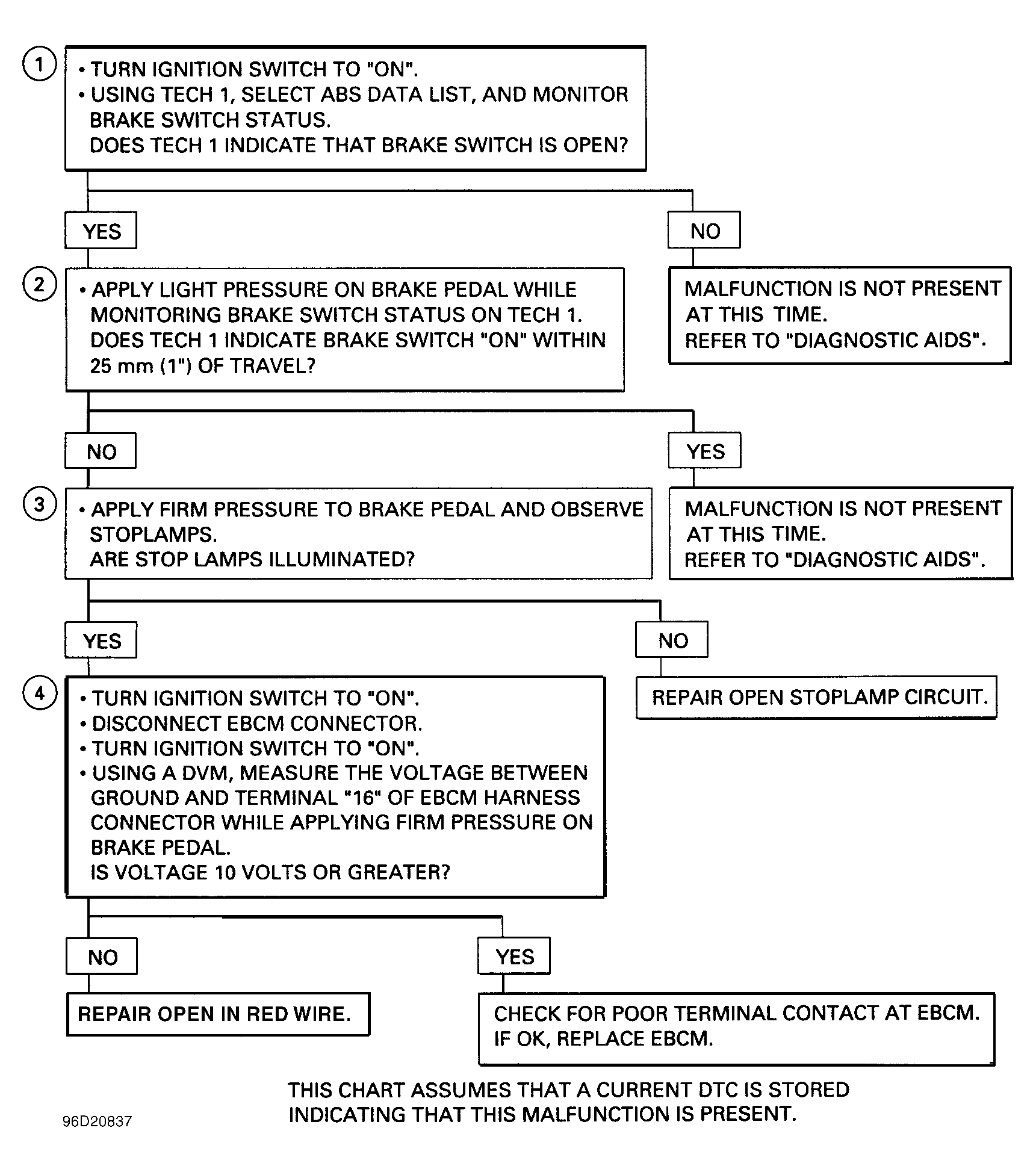

Fig 1: DTC 95: Brake Switch Circuit Always Open
G96D20837Courtesy of ISUZU MOTOR CO.
