Starting System: Overhaul
NOTE:

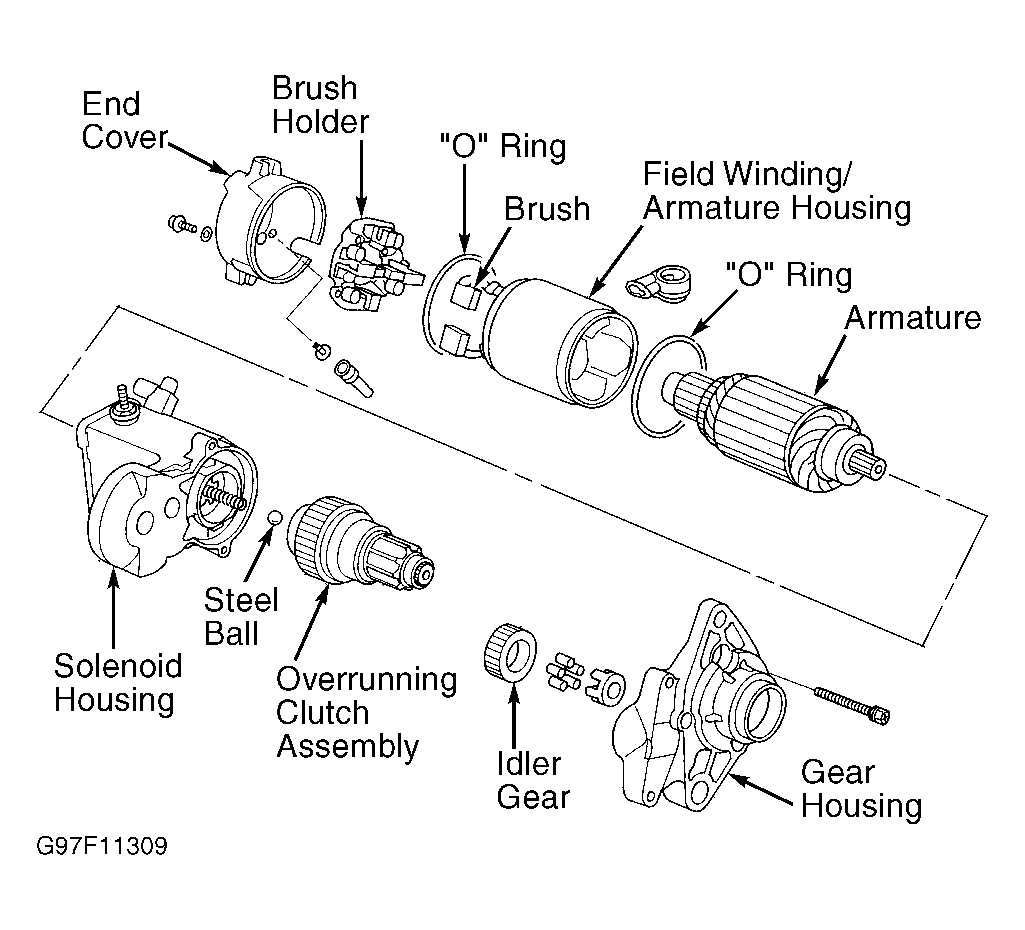

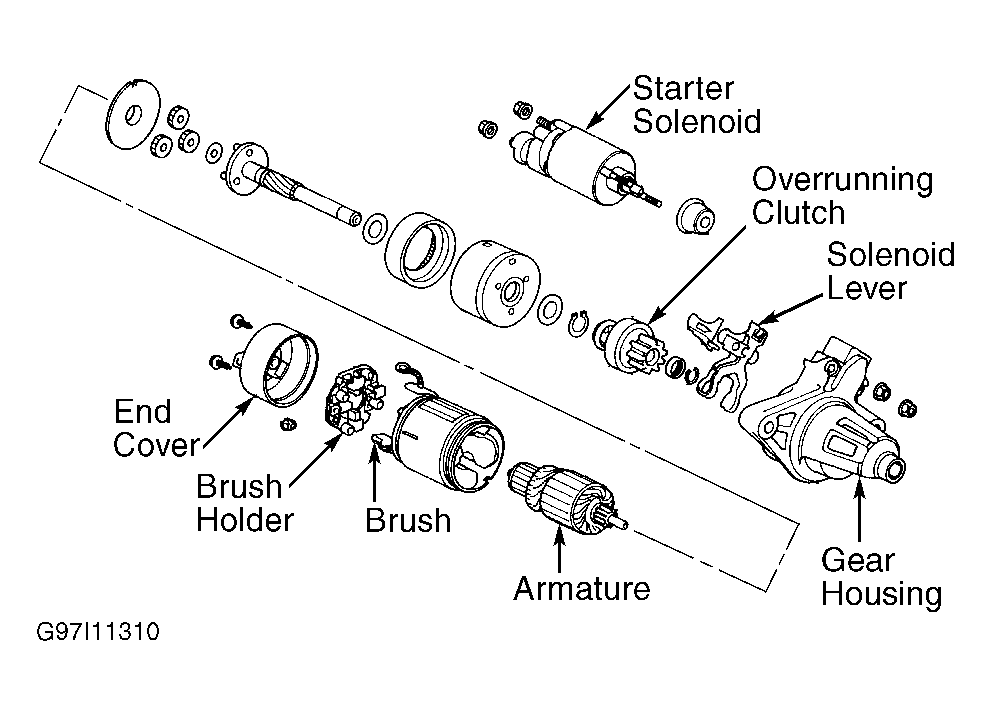

For starter overhaul, refer to exploded view of appropriate starter. See Fig 1
though Fig 3
.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
