Fuse-to-Component Index

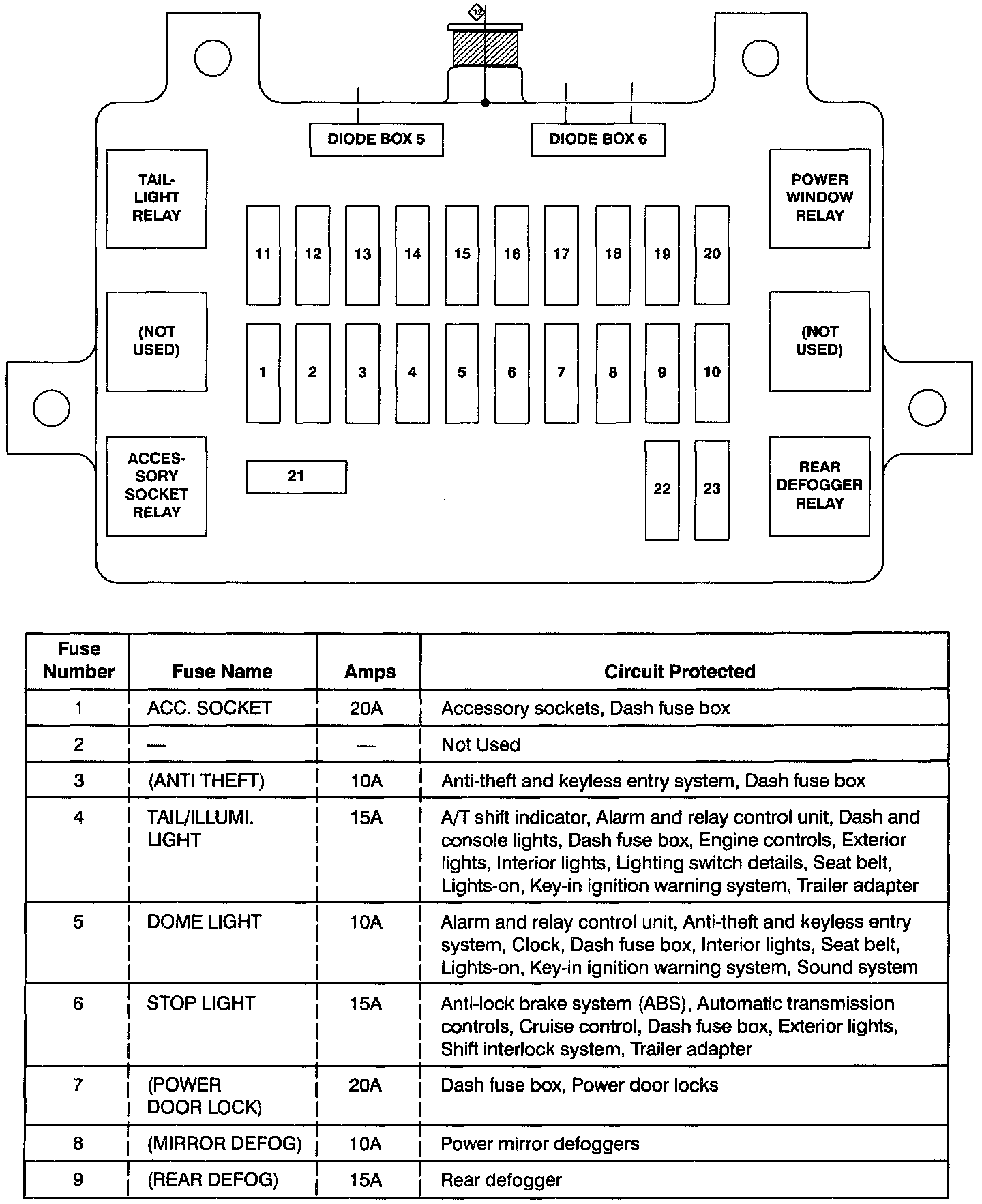

Dash Fuse Box (1 Of 2):

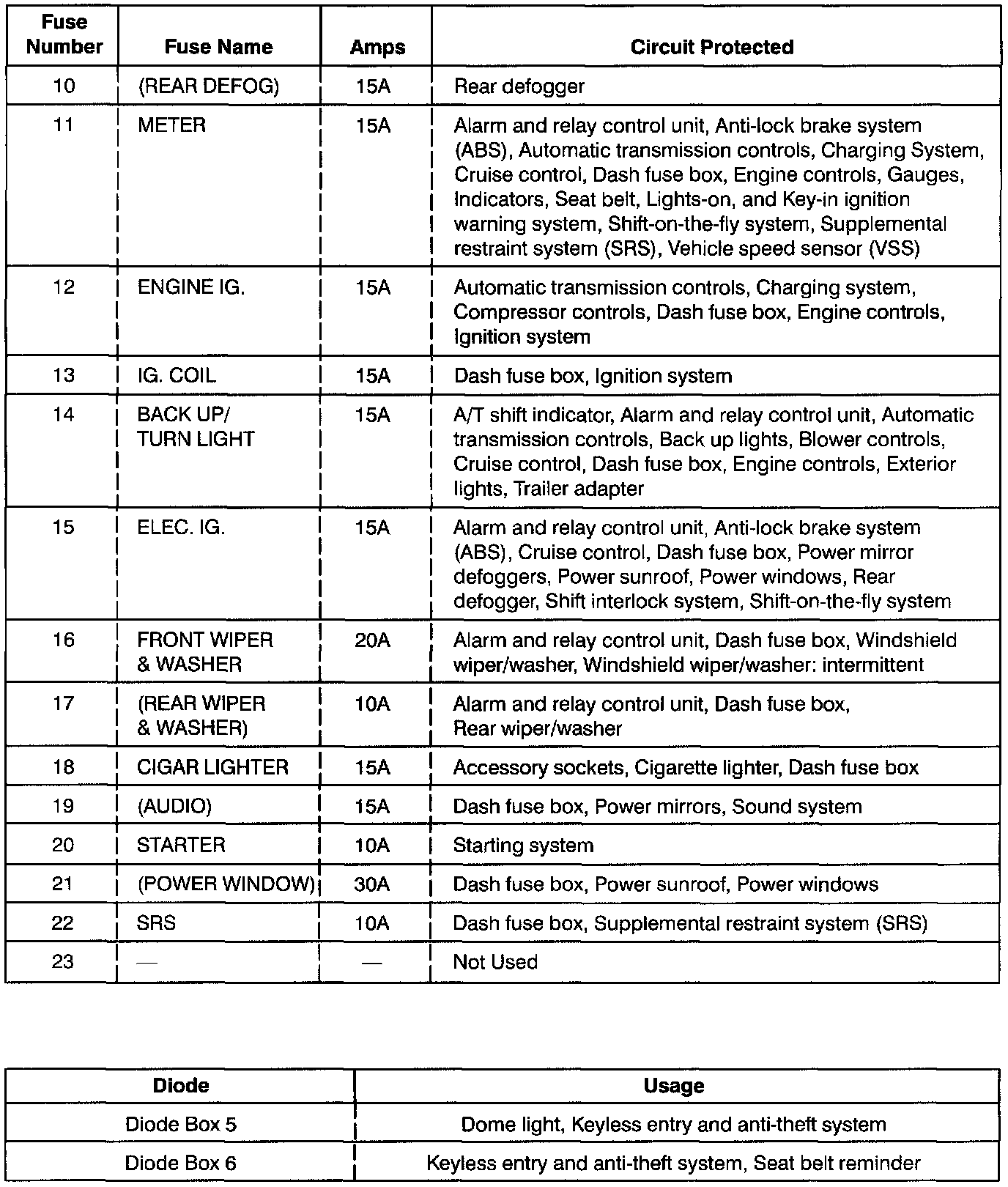

Dash Fuse Box (2 Of 2):

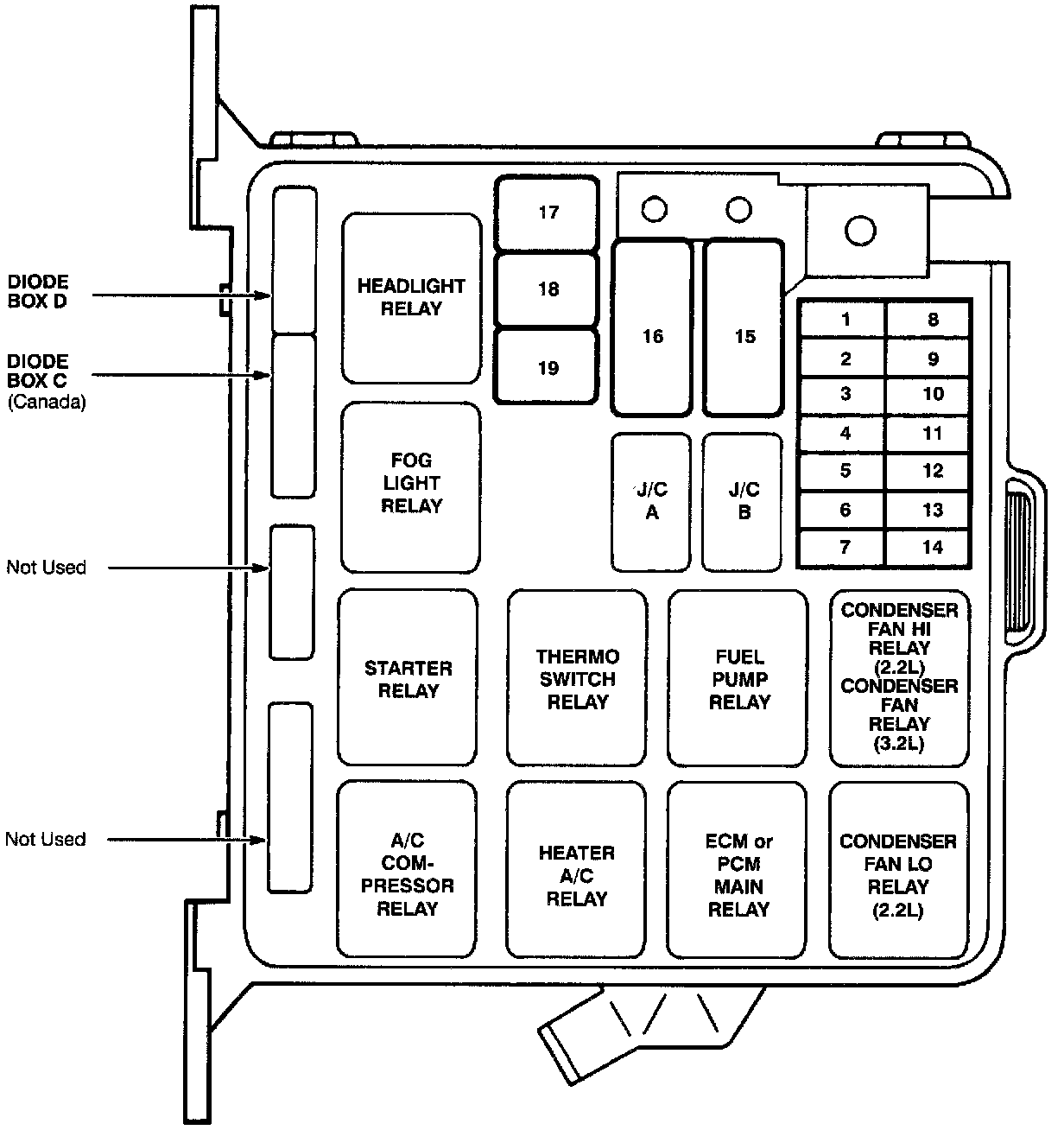

Fuse/Relay Box (1 Of 2):

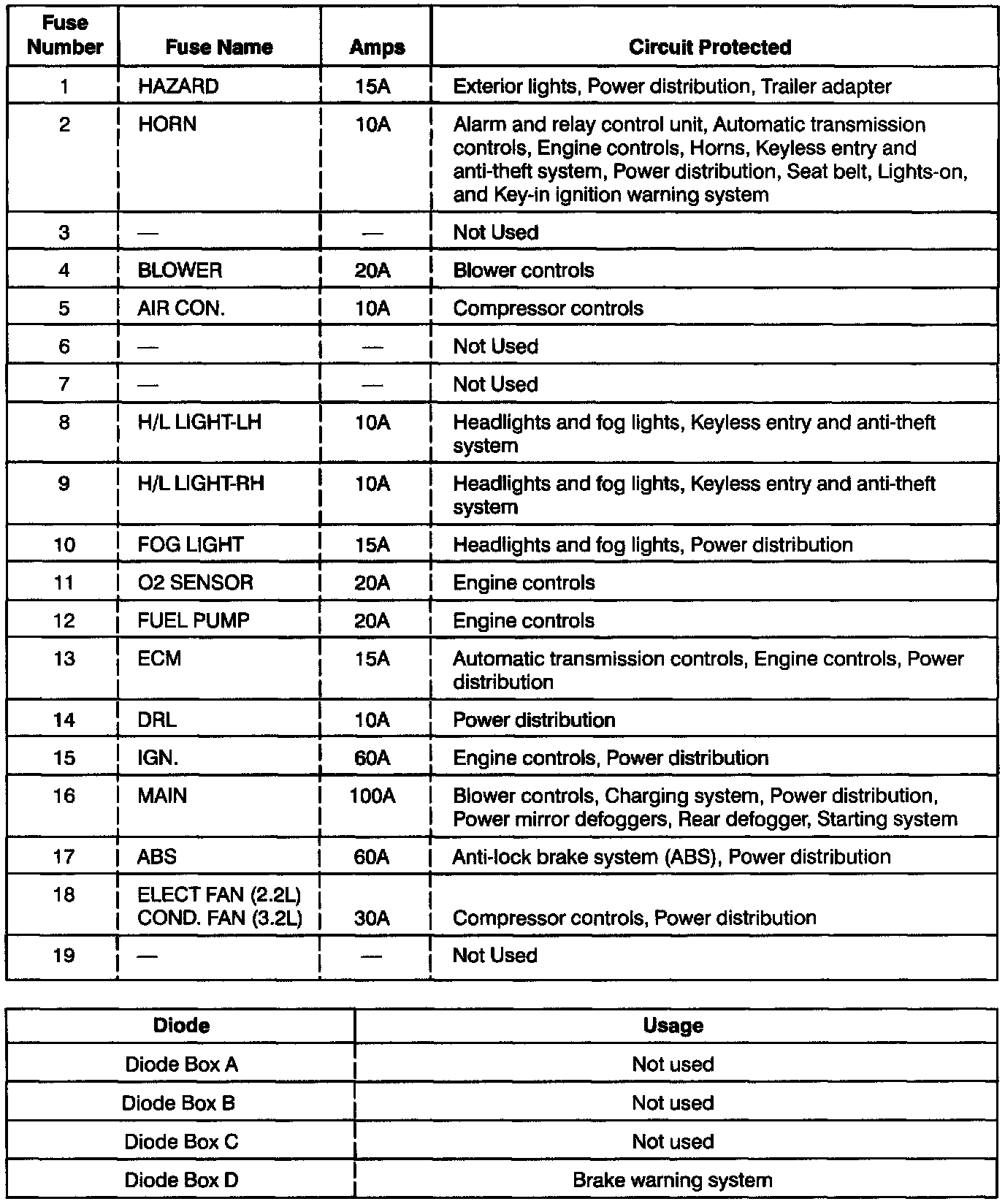

Fuse/Relay Box (2 Of 2):
