Vehicle Speed Sensor: Locations

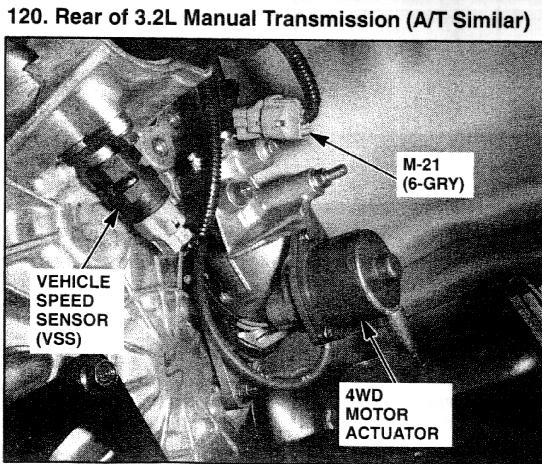

Rear of 3.2L Manual Transmission - Shown for 2WD and 4WD models. (A/T Similar)

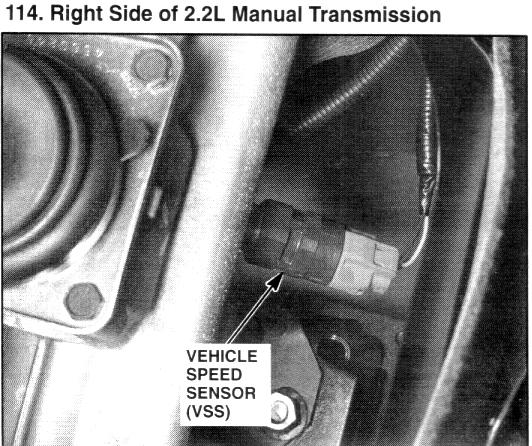

Right side of 2.2L Manual Transmission - Shown for 2WD and 4WD models.
