Keyless Entry and Anti-Theft System

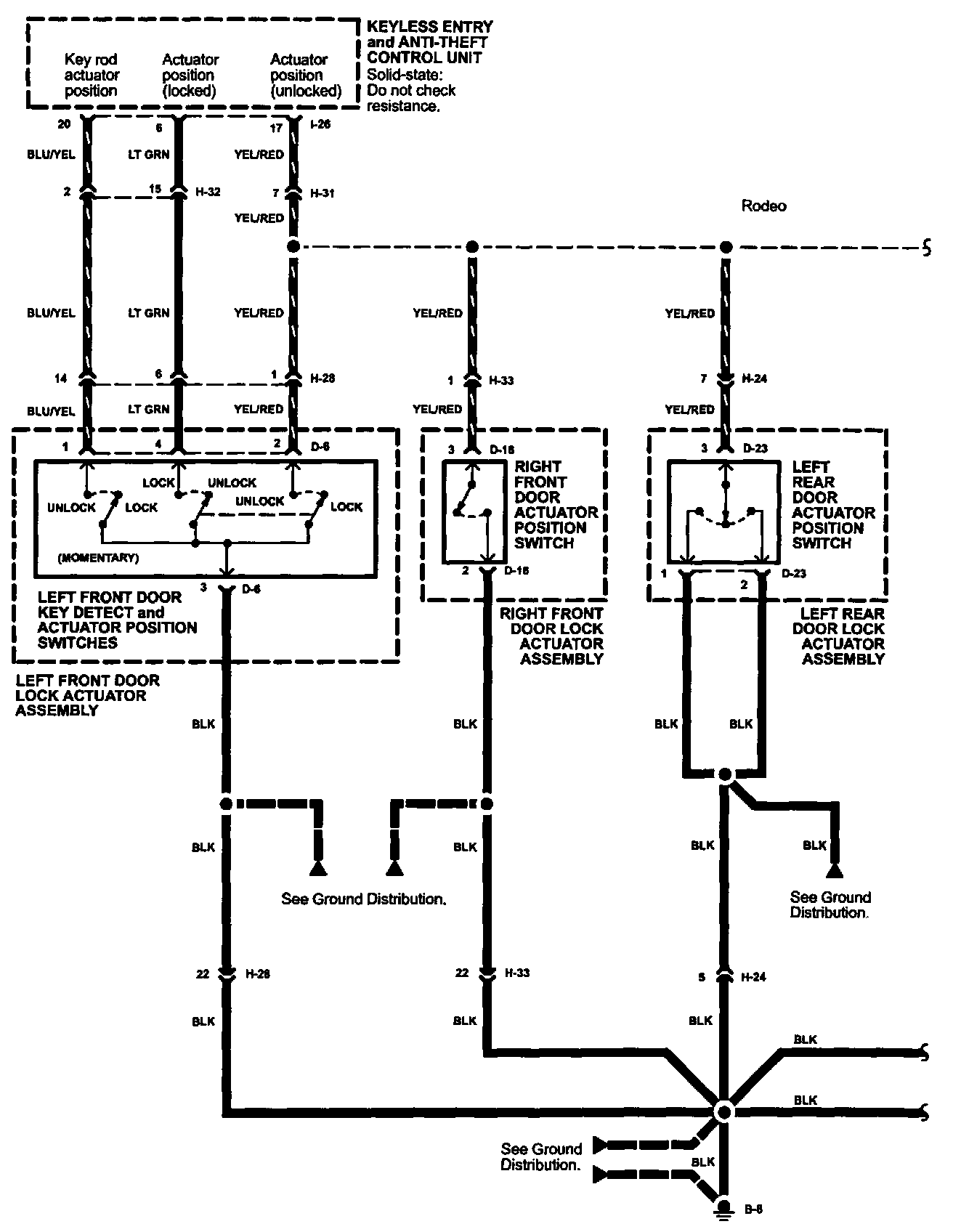

Diagram 133-0:

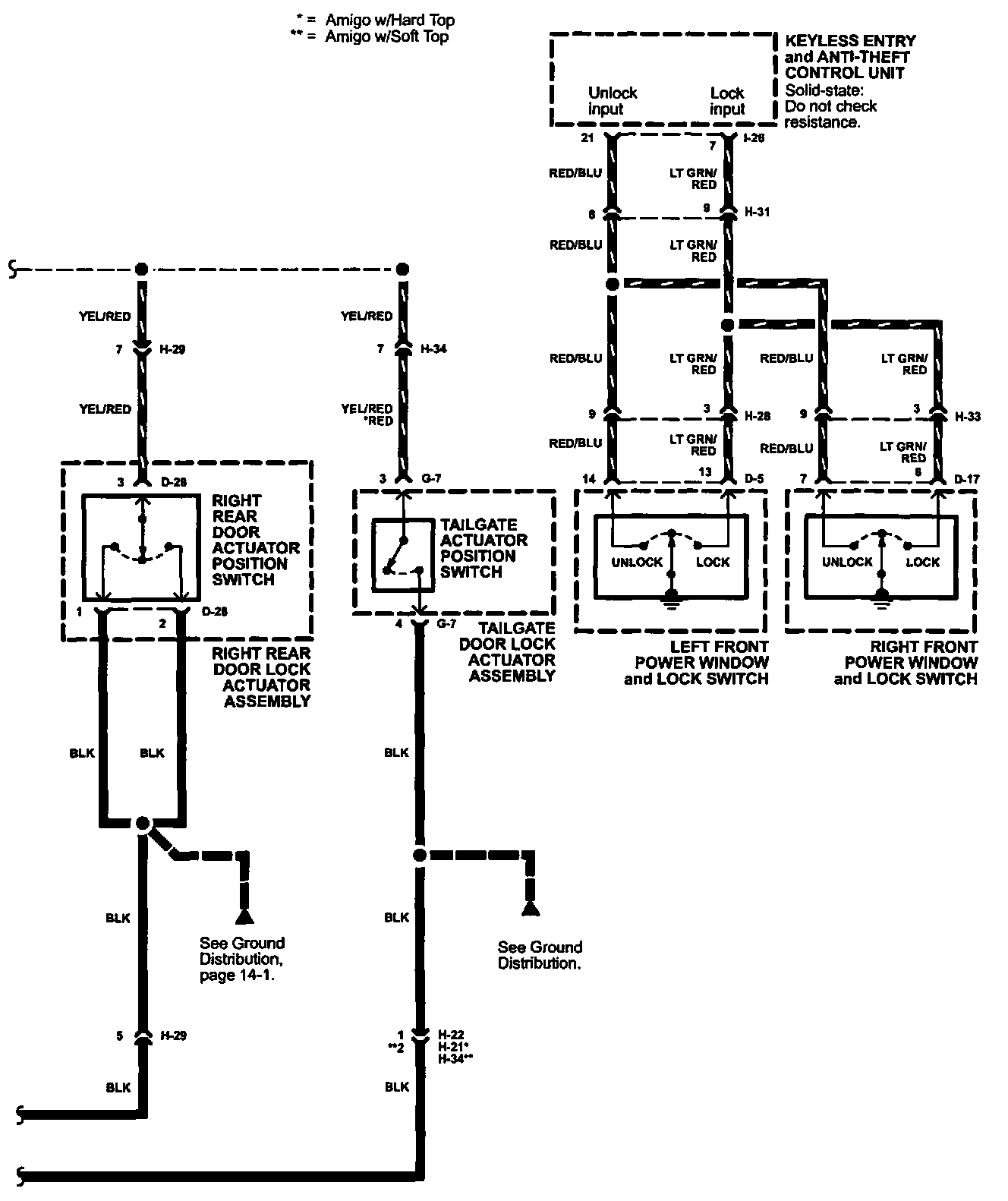

Diagram 133-1:

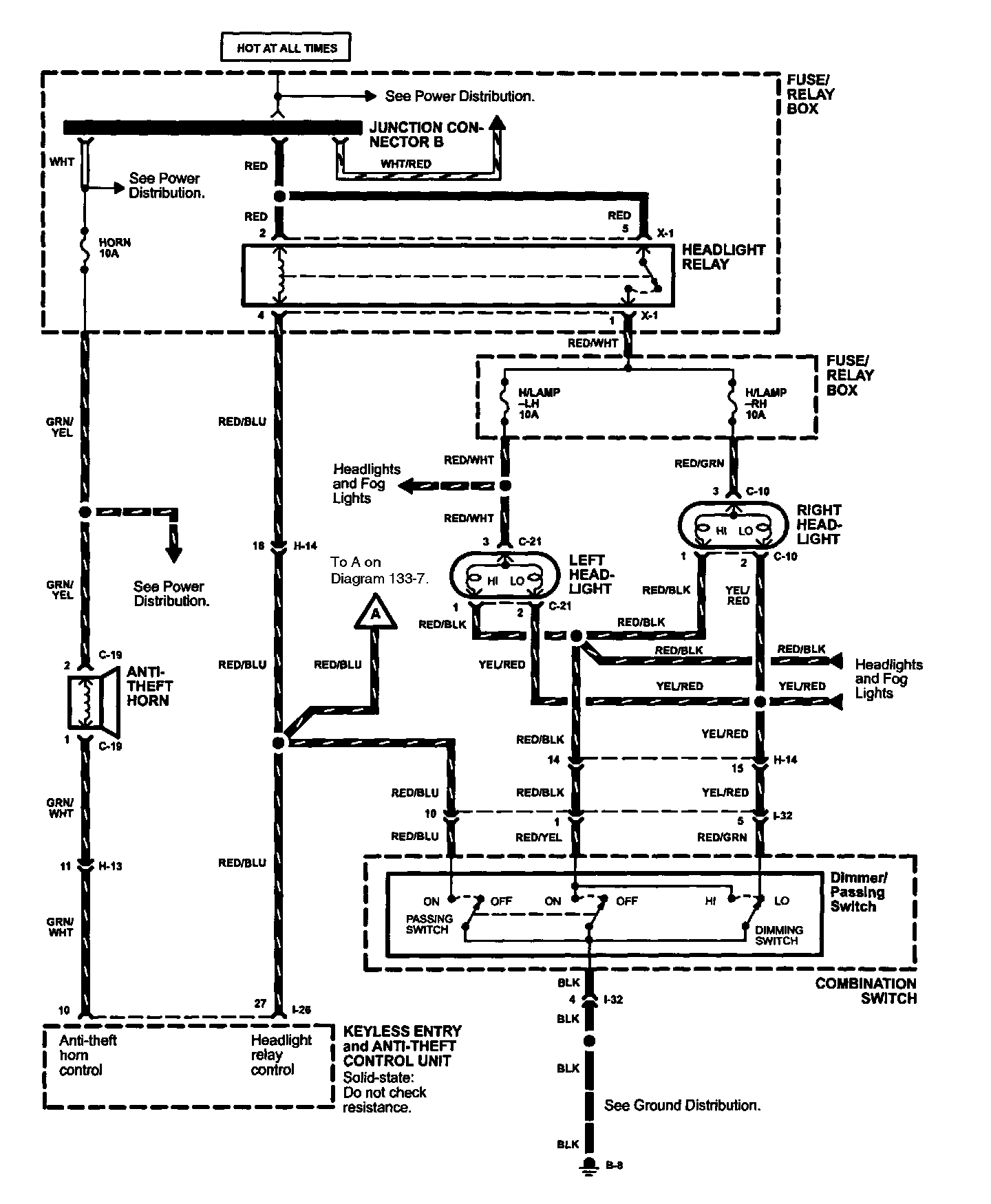

Diagram 133-2:

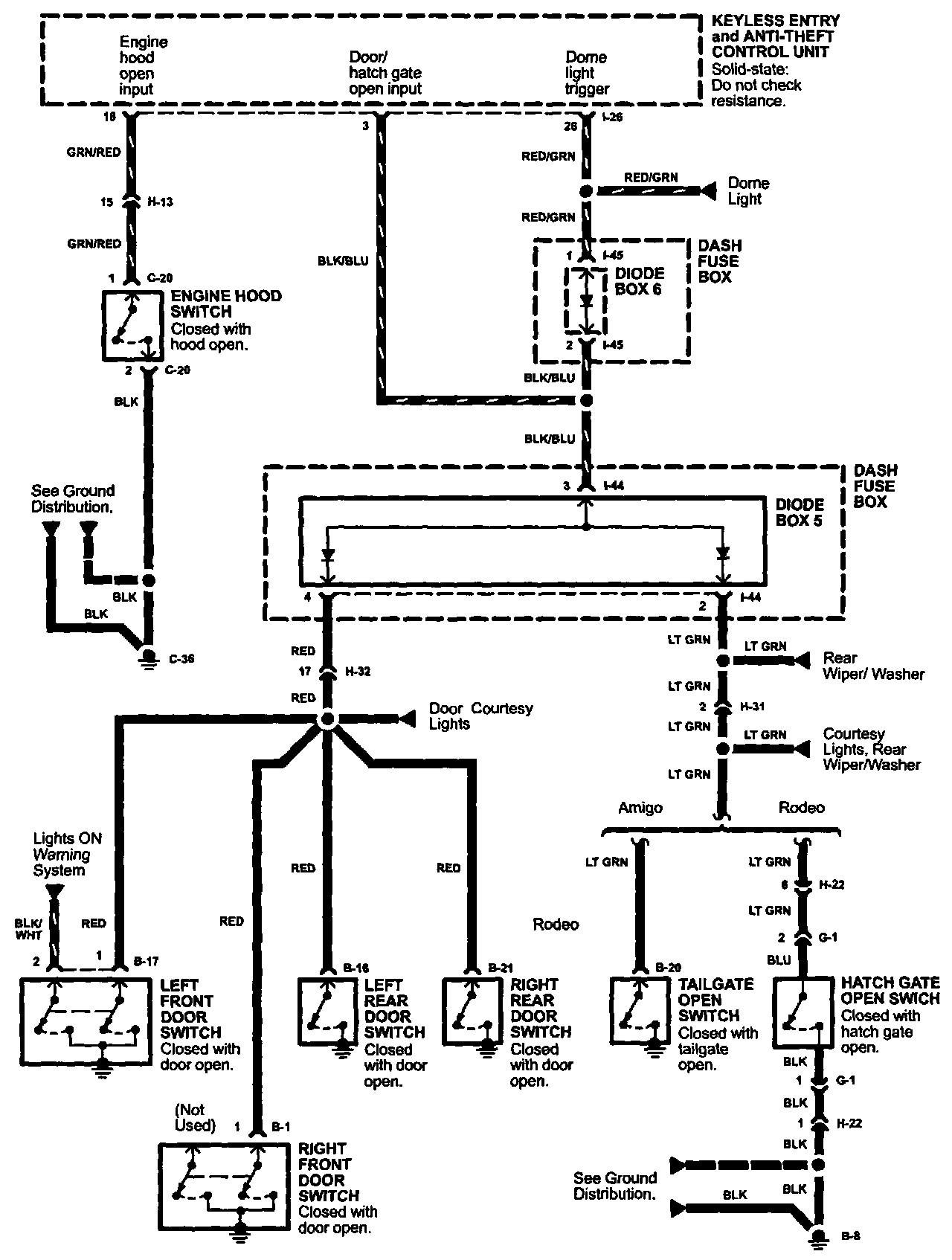

Diagram 133-3:

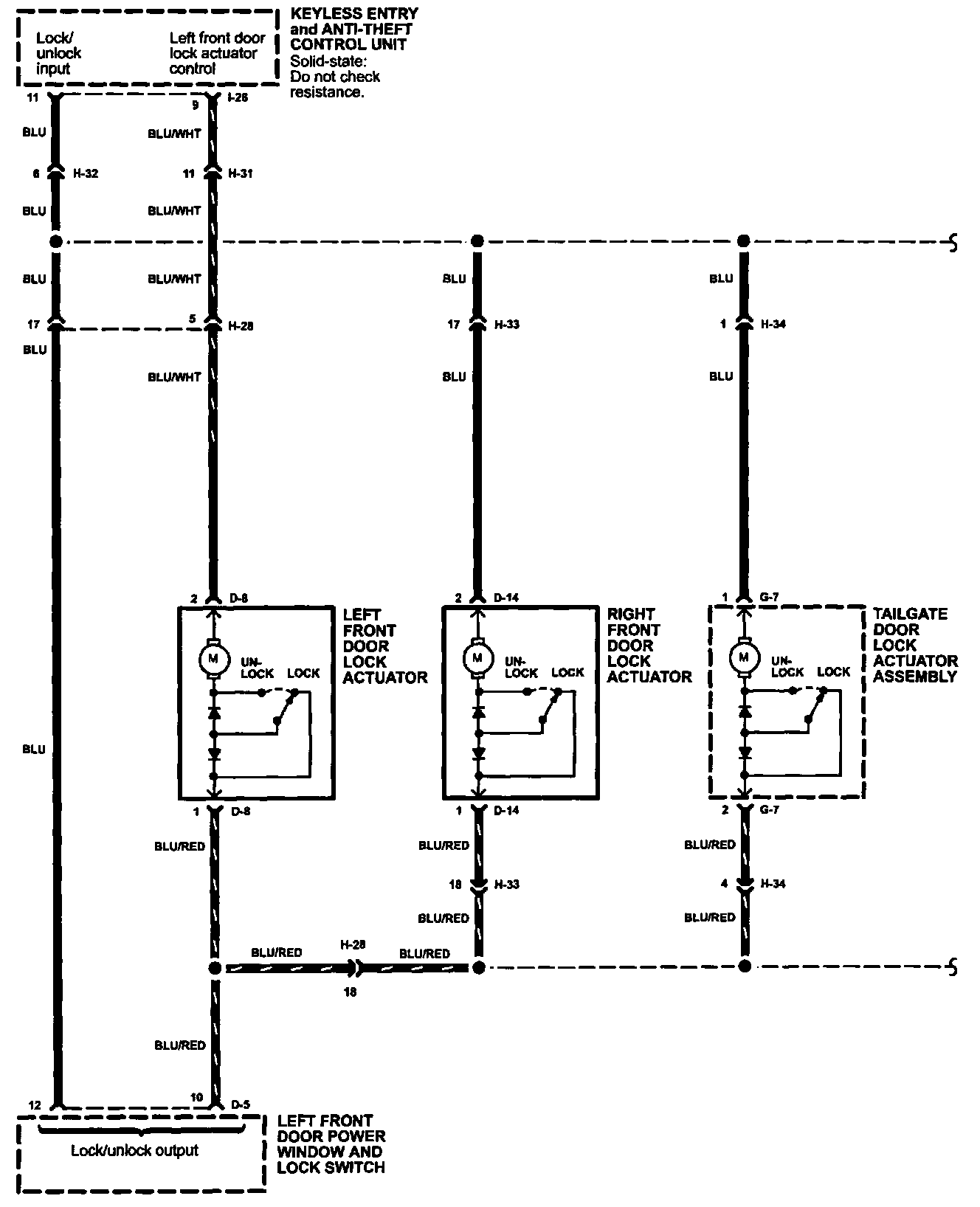

Diagram 133-4:

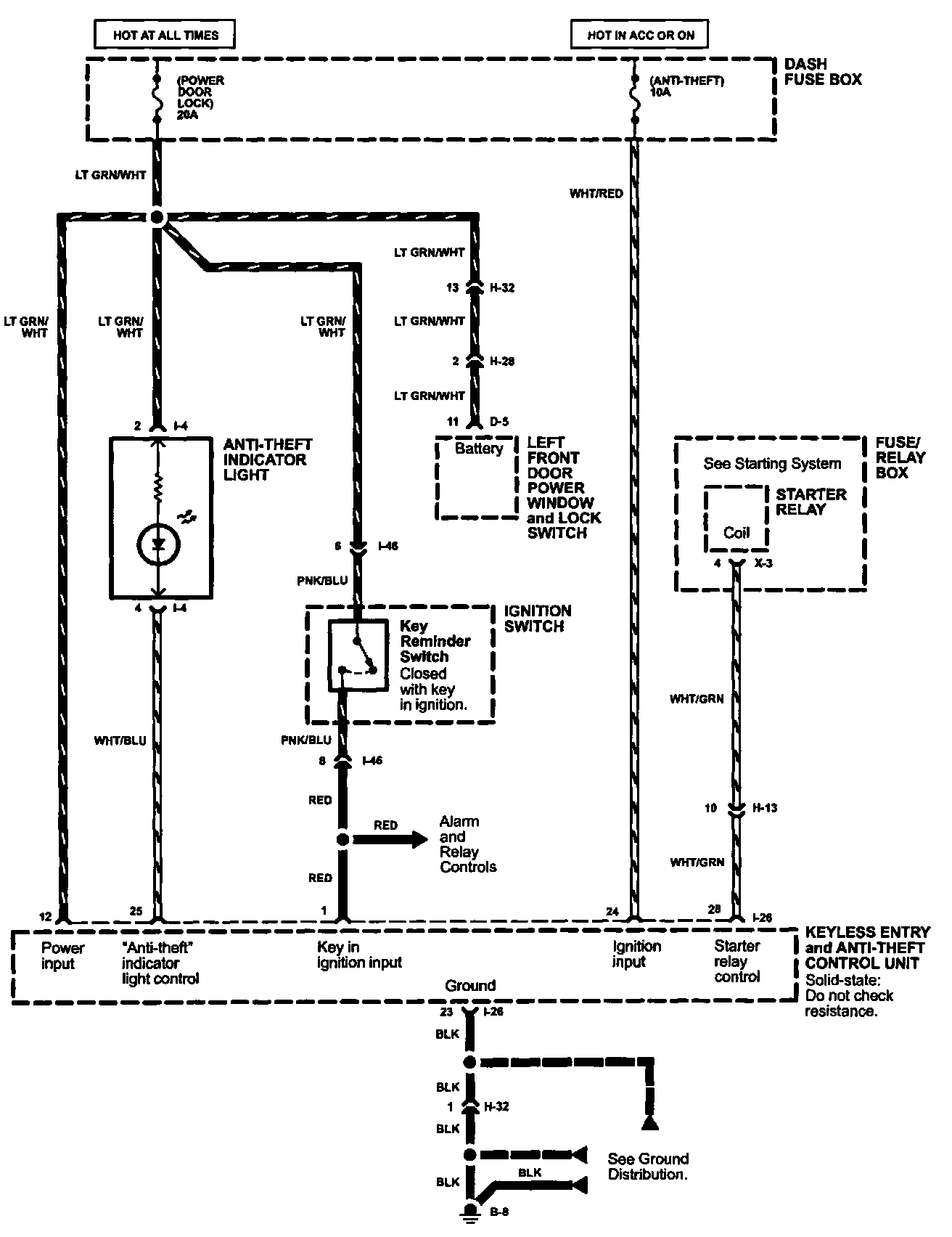

Diagram 133-5:

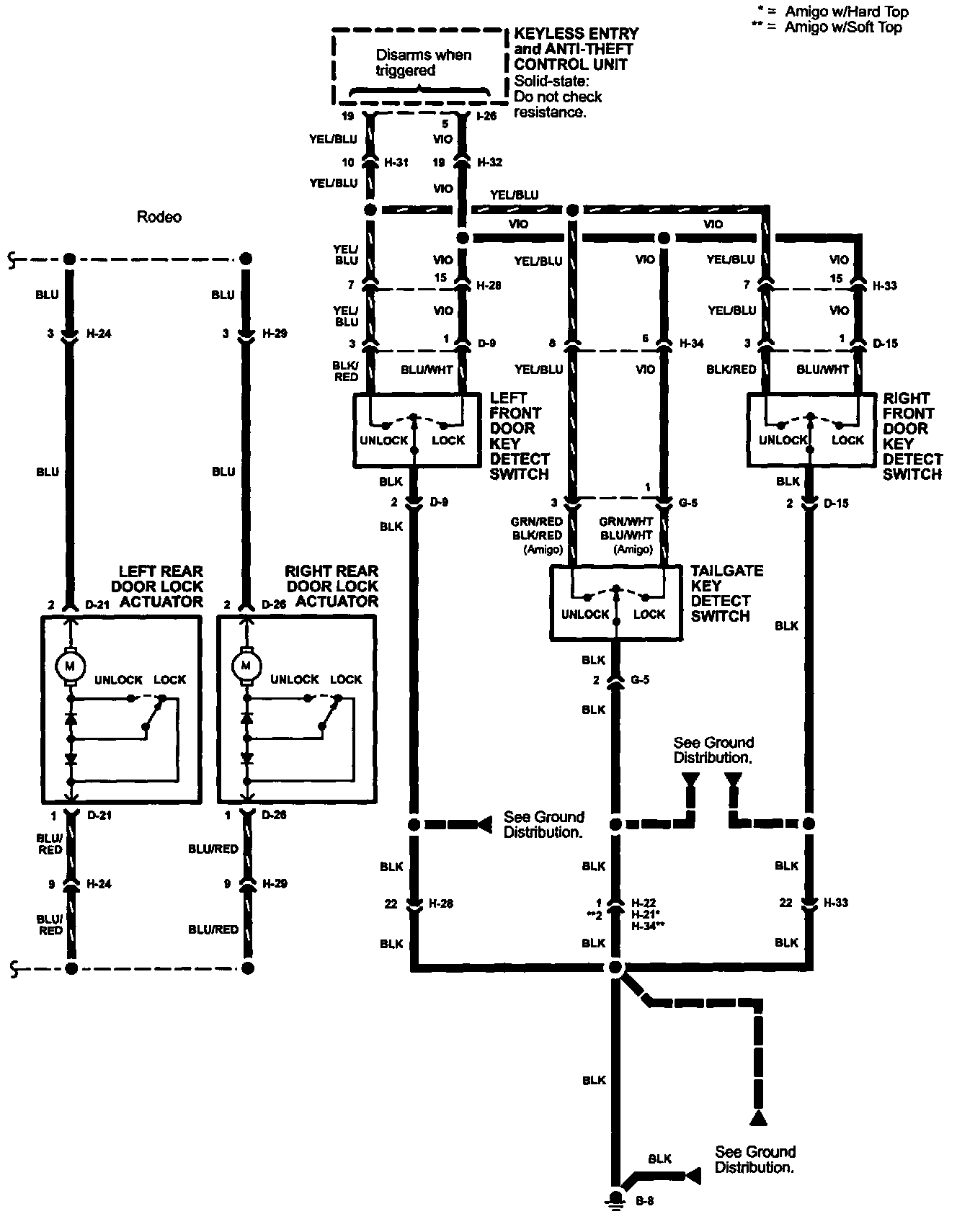

Diagram 133-6:

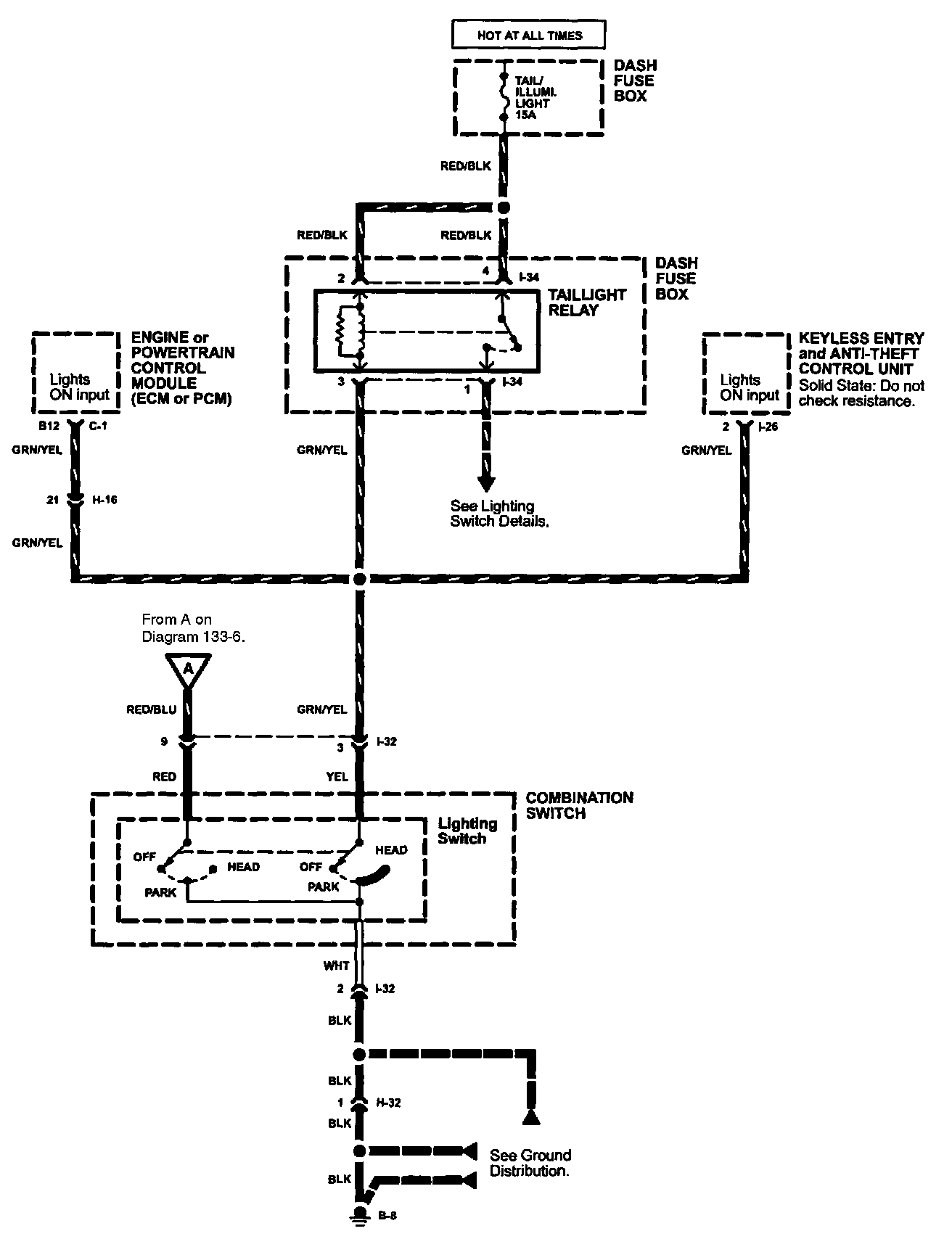

Diagram 133-7:
