Brake Pedal Position Switch Test

WARNING: This page is about a different car, the 2002 Honda Accord, 2001 Honda Accord, 2000 Honda Accord, 1999 Honda Accord, and 1998 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the 4P connector from the switch (A).

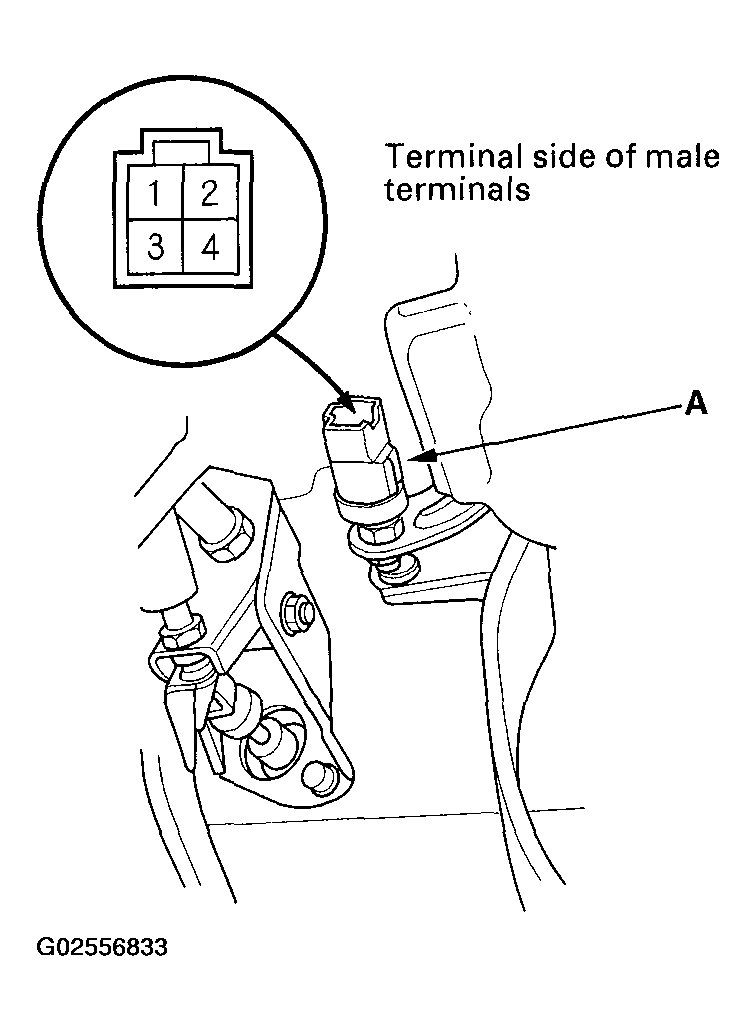

Fig 1: Identifying Brake Pedal Position Switch 4P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the brake pedal position switch.
Check for continuity between the terminals according to the table.

Fig 2: Brake Pedal Position Switch Test Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If necessary, replace the switch or adjust the pedal height (see BRAKE PEDAL HEIGHT & FREE PLAY ).
