Section 13 (Cruise Control System)
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram
WARNING:
This page is about a different car, the 2002 Honda Accord, 2001 Honda Accord, 2000 Honda Accord, 1999 Honda Accord, and 1998 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.

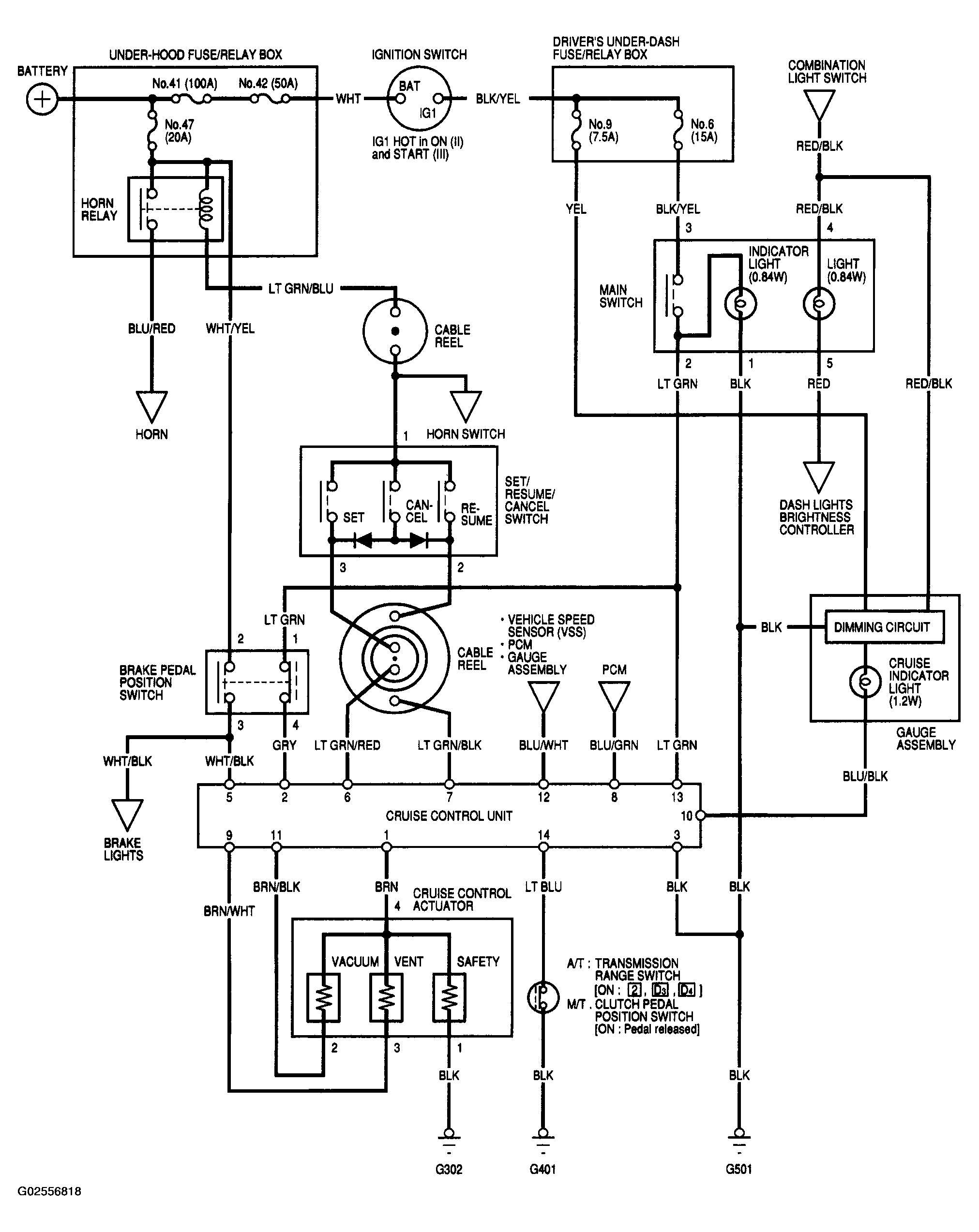

Fig 1: Cruise Control System Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
